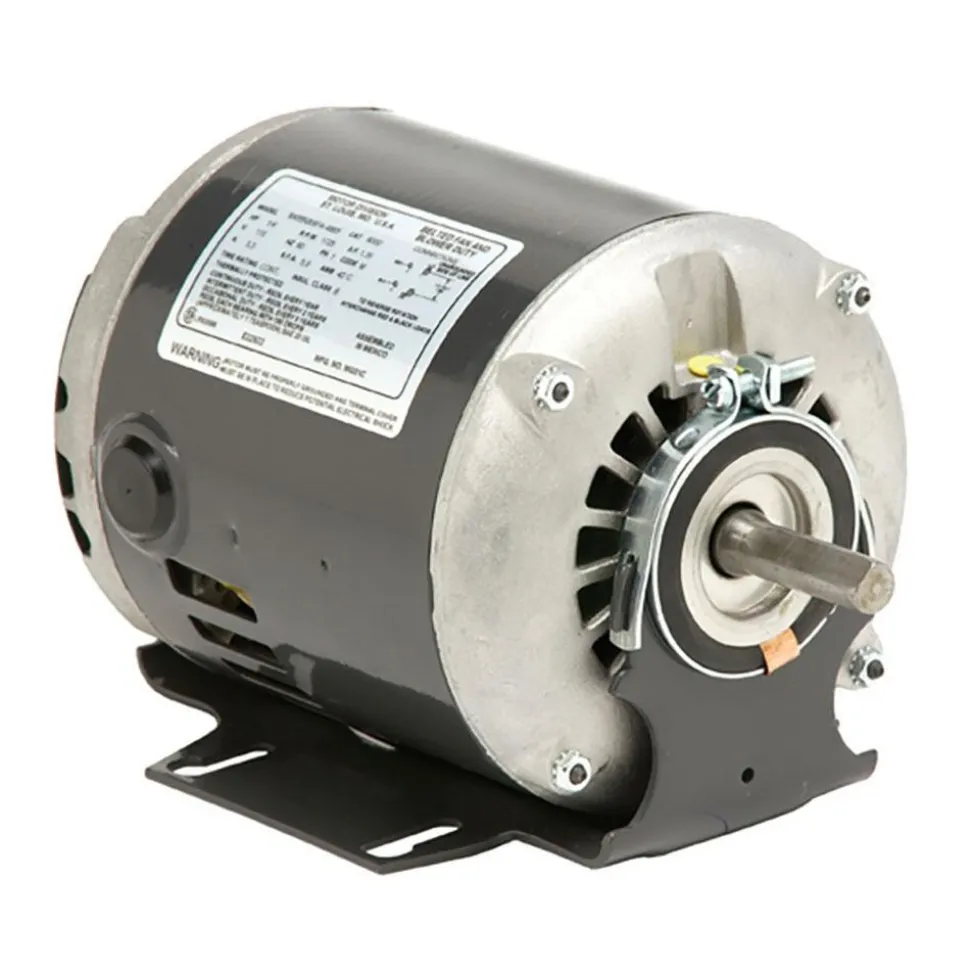

Single Phase Split Phase AC Motor: ODP Enclosure

Original price was: 233,00 $.Current price is: 122,89 $.

Specifications

Motor Type: Single Phase Split Phase	Phase: Single
Enclosure Style: ODP	Horsepower: 1/3
Name Plate RPMs: 1725	Voltage: 115V
Frequency (Hz – 0 Decimals): 60	Frame Size: 56Z
Mount Style: Cradle; Cradle Base	Mount Type: Cradle
Bearing Type: Sleeve	Number Of Phases: 1
Full Load Amperage: 6	Insulation Class: B
Shaft Diameter x Length: 1/2 x 1-7/8 in	Full Load Efficiency Rating: 58.30
Service Factor Rating: 1.00	Motor Rotation: Reversible
Applications: General Purpose	Overall Length (Decimal Inch): 9.8100
Dayton Part Number: 5K534	Ambient Operating Temperature (F): 40
Thermal Protection: None	Number Of Speeds: 1
Type: ODP	UNSPSC Code: 26111600
Product Service Code: 6105
Motor Type: Single Phase Split Phase
Phase: Single
Enclosure Style: ODP
Horsepower: 1/3
Name Plate RPMs: 1725
Voltage: 115V
Frequency (Hz – 0 Decimals): 60
Frame Size: 56Z
Mount Style: Cradle; Cradle Base
Mount Type: Cradle
Bearing Type: Sleeve
Number Of Phases: 1
Full Load Amperage: 6
Insulation Class: B
Shaft Diameter x Length: 1/2 x 1-7/8 in
Full Load Efficiency Rating: 58.30
Service Factor Rating: 1.00
Motor Rotation: Reversible
Applications: General Purpose
Overall Length (Decimal Inch): 9.8100
Dayton Part Number: 5K534
Ambient Operating Temperature (F): 40
Thermal Protection: None
Number Of Speeds: 1
Type: ODP
UNSPSC Code: 26111600
Product Service Code: 6105
