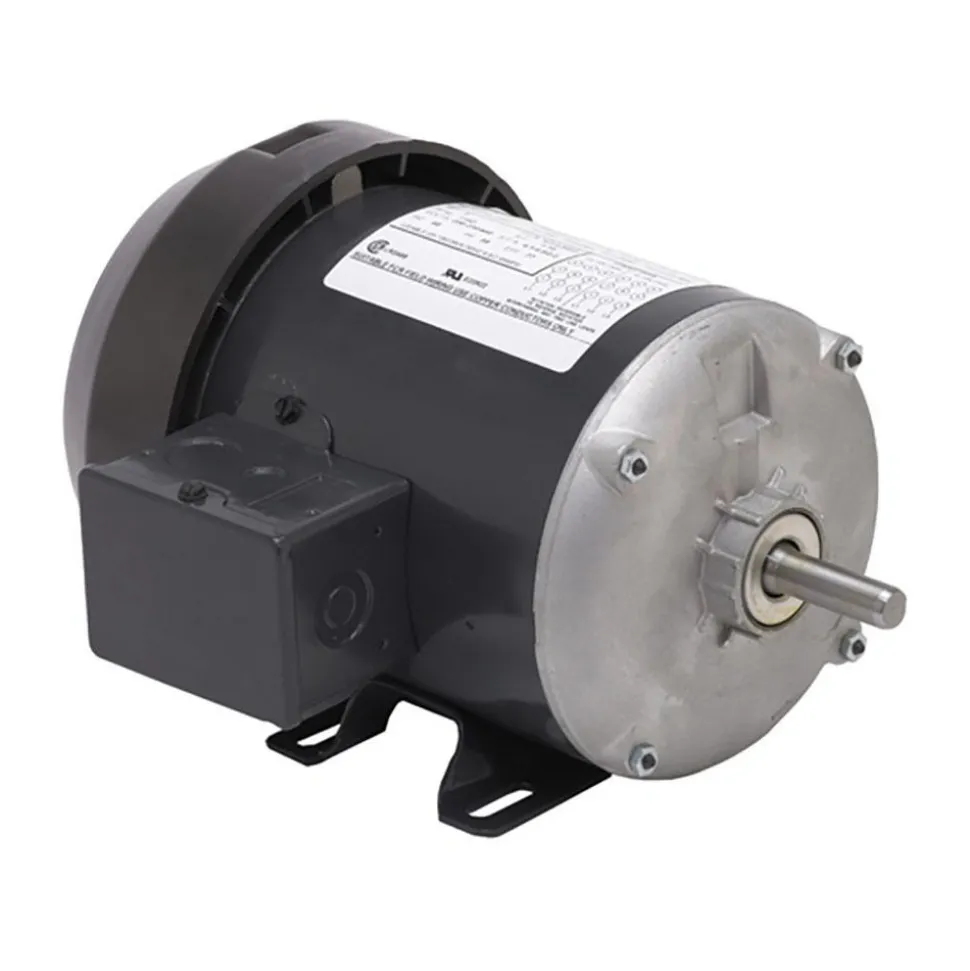

Single Phase Split Phase AC Motor: TEFC Enclosure

128,89 $

Specifications

Motor Type: Single Phase Split Phase	Phase: Single
Enclosure Style: TEFC	Horsepower: 1/3
Name Plate RPMs: 3450	Voltage: 115V
Frequency (Hz – 0 Decimals): 60	Frame Size: 48
Mount Style: Rigid	Mount Type: Rigid
Bearing Type: Ball	Number Of Phases: 1
Full Load Amperage: 5.4	Insulation Class: B
Shaft Diameter x Length: 1/2 x 1-1/2 in	Full Load Efficiency Rating: 64.00
Service Factor Rating: 1.00	Motor Rotation: Reversible
Applications: General Purpose	Overall Length (Decimal Inch): 10.6800
Dayton Part Number: 6XJ12	Ambient Operating Temperature (F): 40
Thermal Protection: None	Number Of Speeds: 1
Type: TEFC	UNSPSC Code: 26111600
Product Service Code: 6105	Country of Origin: Mexico
Motor Type: Single Phase Split Phase
Phase: Single
Enclosure Style: TEFC
Horsepower: 1/3
Name Plate RPMs: 3450
Voltage: 115V
Frequency (Hz – 0 Decimals): 60
Frame Size: 48
Mount Style: Rigid
Mount Type: Rigid
Bearing Type: Ball
Number Of Phases: 1
Full Load Amperage: 5.4
Insulation Class: B
Shaft Diameter x Length: 1/2 x 1-1/2 in
Full Load Efficiency Rating: 64.00
Service Factor Rating: 1.00
Motor Rotation: Reversible
Applications: General Purpose
Overall Length (Decimal Inch): 10.6800
Dayton Part Number: 6XJ12
Ambient Operating Temperature (F): 40
Thermal Protection: None
Number Of Speeds: 1
Type: TEFC
UNSPSC Code: 26111600
Product Service Code: 6105
Country of Origin: Mexico
