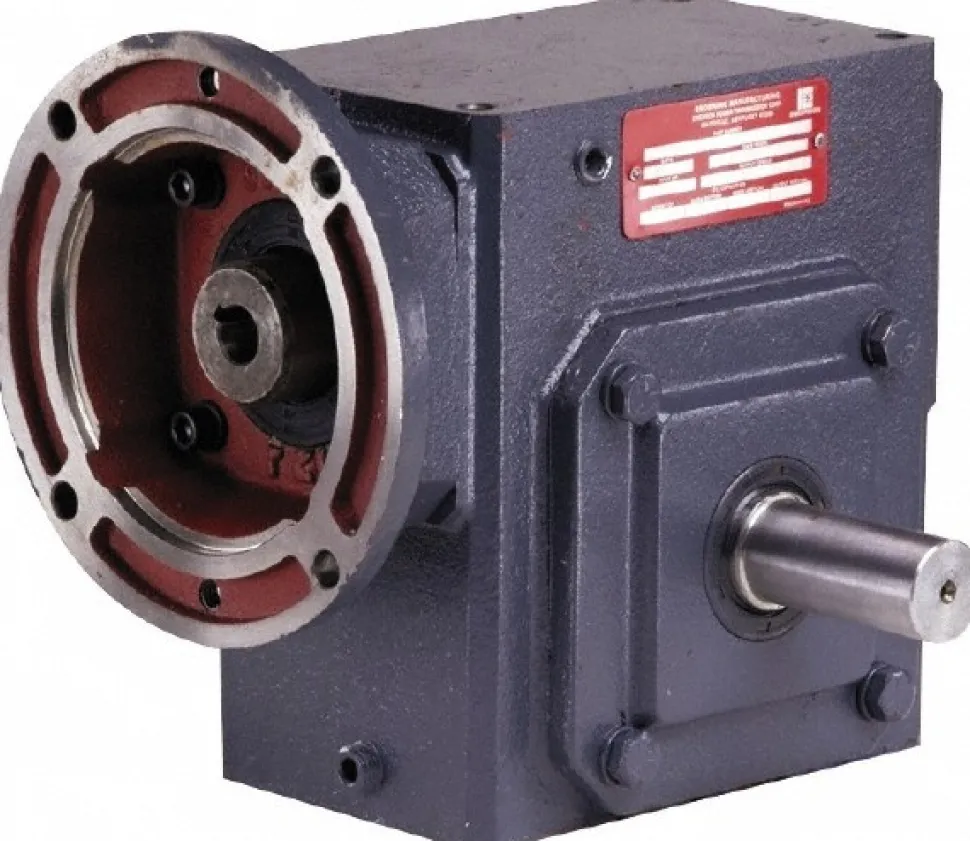

Speed Reducer: 2 hp Max Input

Original price was: 659,00 $.Current price is: 126,89 $.

Specifications

Centerline Distance: 2.060	Shaft Type: Double
Ratio: 25:1	Maximum Input Horsepower: 2.00
Nema/Iec Frame Size: 140TC NEMA	Minimum Torque (In/Lb): 706.0
Maximum Torque (In/Lb.): 706.00	Bore Diameter (Decimal Inch): 0.8750
Shaft Diameter (Decimal Inch): 1.0000	Minimum Input Horsepower: 1.00
Output RPM at 1750 Input: 70.0	Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750: 706.000
Torque Output (In/Lb) with 2 Horsepower Motor @ 1750: 706	Torque Output (In/Lb) with 1 Horsepower Motor @ 1750: 706.000
Height (Decimal Inch): 6.3800	Length (Decimal Inch – 4 Decimals): 5.5000
Width (Decimal Inch – 4 Decimals): 3.7500	UNSPSC Code: 26111500
Centerline Distance: 2.060
Shaft Type: Double
Ratio: 25:1
Maximum Input Horsepower: 2.00
Nema/Iec Frame Size: 140TC NEMA
Minimum Torque (In/Lb): 706.0
Maximum Torque (In/Lb.): 706.00
Bore Diameter (Decimal Inch): 0.8750
Shaft Diameter (Decimal Inch): 1.0000
Minimum Input Horsepower: 1.00
Output RPM at 1750 Input: 70.0
Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750: 706.000
Torque Output (In/Lb) with 2 Horsepower Motor @ 1750: 706
Torque Output (In/Lb) with 1 Horsepower Motor @ 1750: 706.000
Height (Decimal Inch): 6.3800
Length (Decimal Inch – 4 Decimals): 5.5000
Width (Decimal Inch – 4 Decimals): 3.7500
UNSPSC Code: 26111500
