Sale!

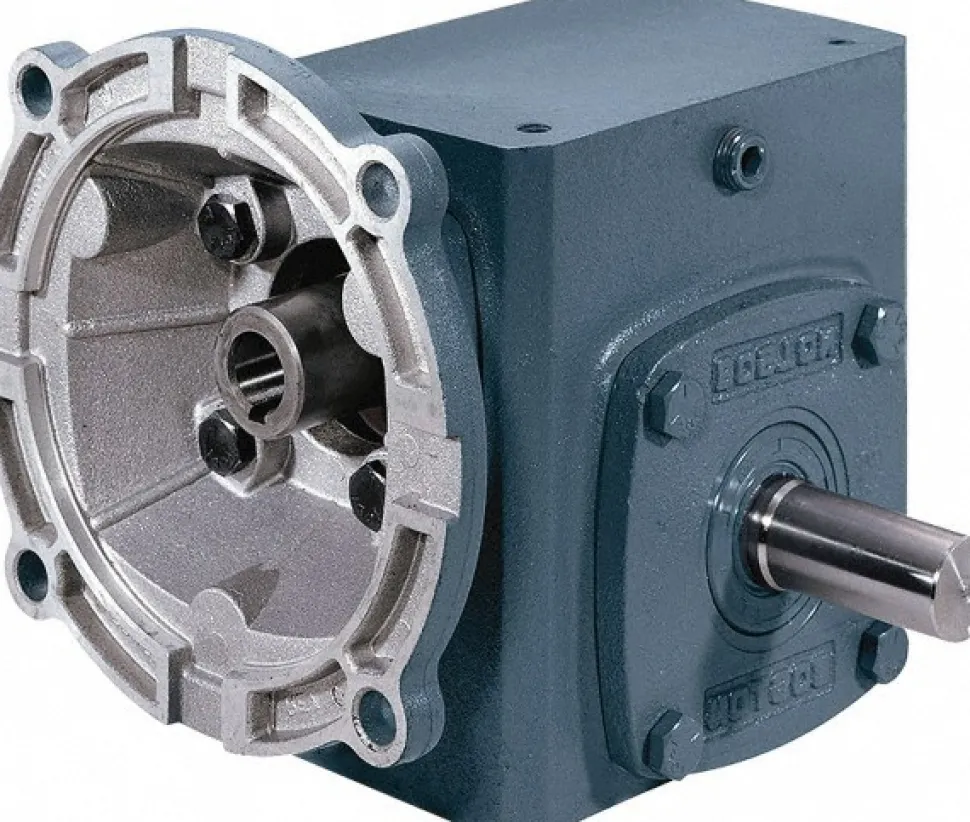

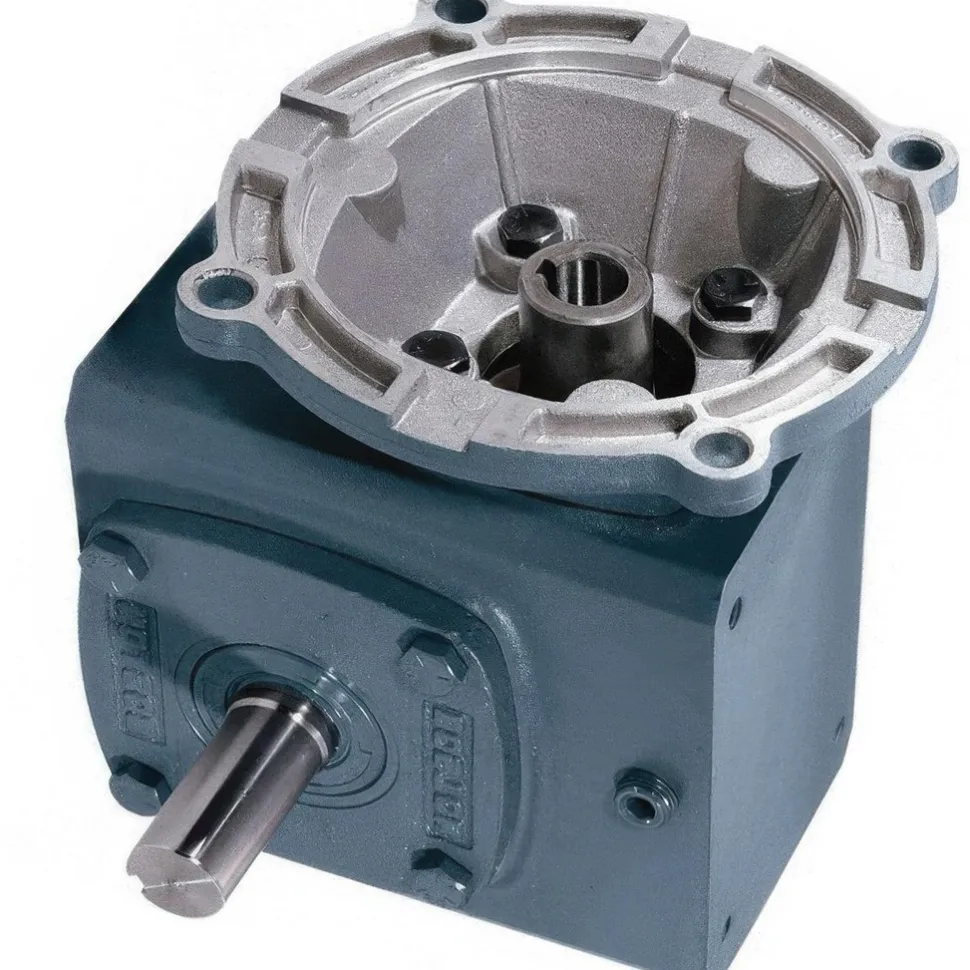

Speed Reducer: 3.18 hp Max Input
Original price was: 1 549,00 $.126,99 $Current price is: 126,99 $.
Specifications
| Centerline Distance: 2.380 | Shaft Type: Single |
| Ratio: 10:1 | PartNo: F724-10-B7-J |
| Maximum Input Horsepower: 3.18 | Nema/Iec Frame Size: 140TC NEMA |
| Maximum Torque (In/Lb.): 1069.00 | Bore Diameter (Decimal Inch): 0.8750 |
| Output RPM at 1750 Input: 175.0 | Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750: 504.000 |
| Torque Output (In/Lb) with 2 Horsepower Motor @ 1750: 672 | Height (Decimal Inch): 4.8800 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 2.380 | |
| Shaft Type: Single | |
| Ratio: 10:1 | |
| PartNo: F724-10-B7-J | |
| Maximum Input Horsepower: 3.18 | |
| Nema/Iec Frame Size: 140TC NEMA | |
| Maximum Torque (In/Lb.): 1069.00 | |
| Bore Diameter (Decimal Inch): 0.8750 | |
| Output RPM at 1750 Input: 175.0 | |
| Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750: 504.000 | |
| Torque Output (In/Lb) with 2 Horsepower Motor @ 1750: 672 | |
| Height (Decimal Inch): 4.8800 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 92845205 |
| Mfr# | 51986 |
| Big Book# | 3714 |
