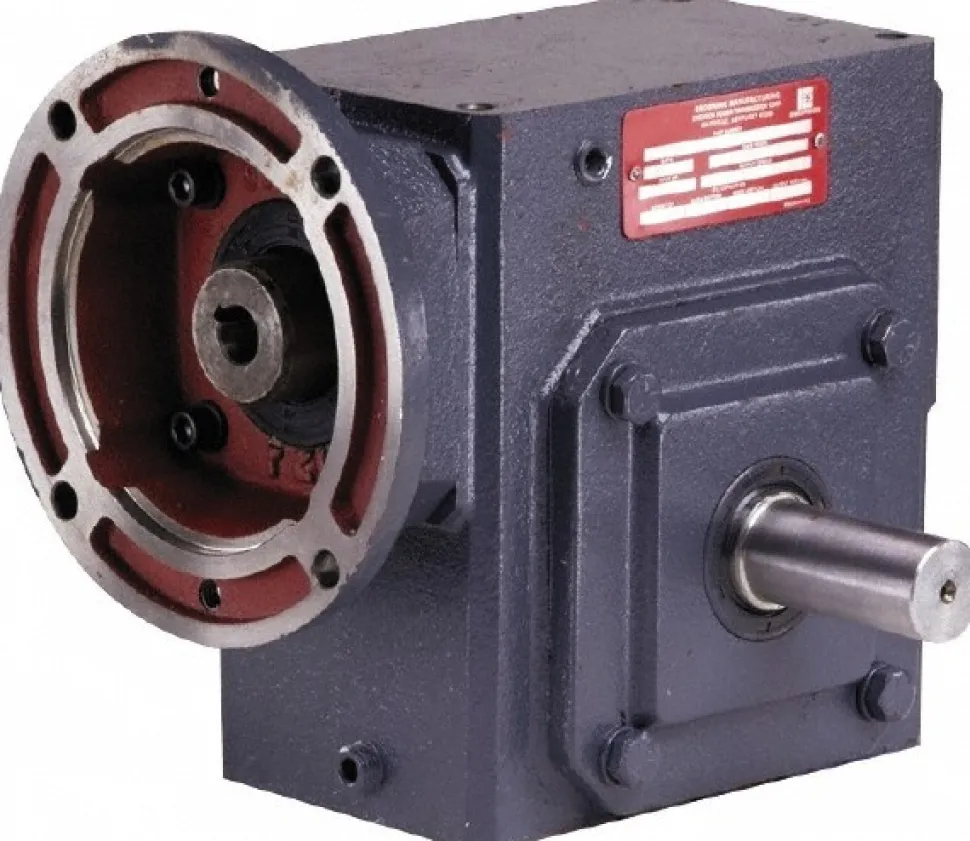

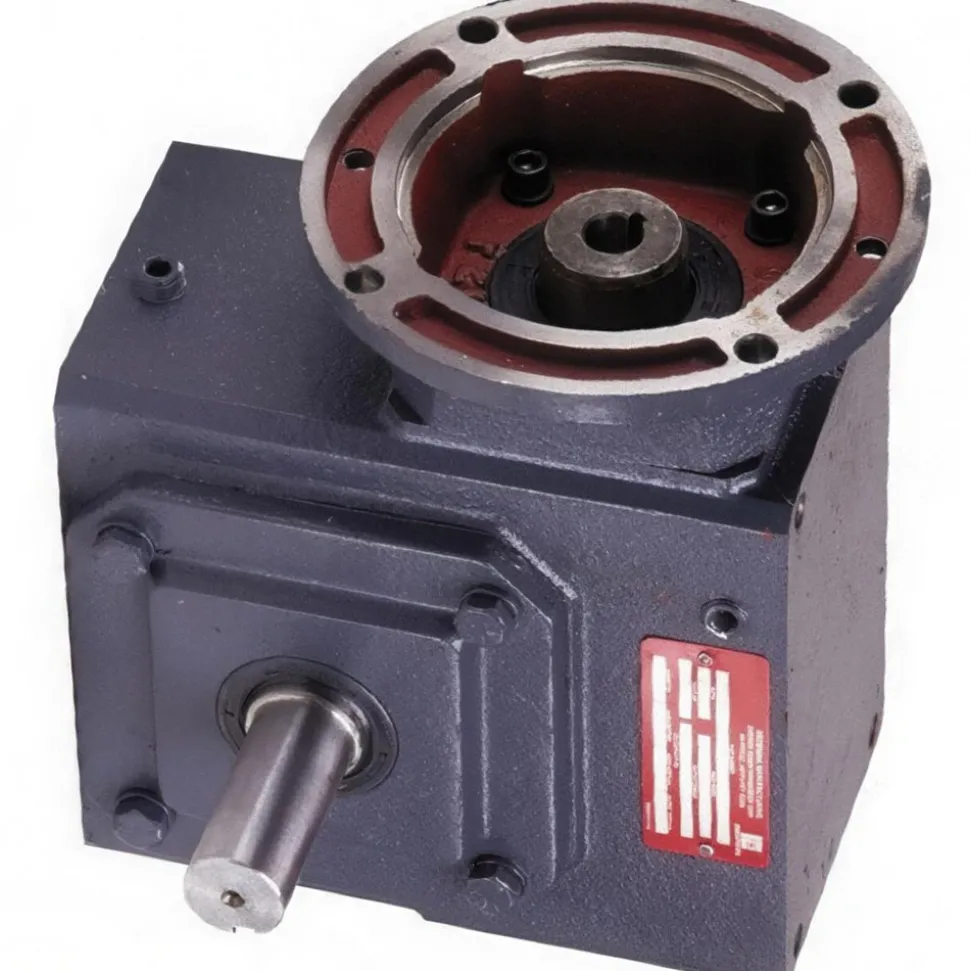

Speed Reducer: 3/4 hp Max Input

124,99 $

Specifications

Centerline Distance: 1.333	Shaft Type: Single
Ratio: 25:1	Maximum Input Horsepower: 3/4
Nema/Iec Frame Size: 56C NEMA	Minimum Torque (In/Lb): 172.0
Maximum Torque (In/Lb.): 234.00	Bore Diameter (Decimal Inch): 0.6250
Shaft Diameter (Decimal Inch): 0.6250	Minimum Input Horsepower: 0.25
Output RPM at 1750 Input: 70.0	Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 234
Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 227	Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 234
Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 172	Height (Decimal Inch): 4.6600
Length (Decimal Inch – 4 Decimals): 4.0000	Width (Decimal Inch – 4 Decimals): 2.8800
UNSPSC Code: 26111500	Country of Origin: UNITED STATES
Centerline Distance: 1.333
Shaft Type: Single
Ratio: 25:1
Maximum Input Horsepower: 3/4
Nema/Iec Frame Size: 56C NEMA
Minimum Torque (In/Lb): 172.0
Maximum Torque (In/Lb.): 234.00
Bore Diameter (Decimal Inch): 0.6250
Shaft Diameter (Decimal Inch): 0.6250
Minimum Input Horsepower: 0.25
Output RPM at 1750 Input: 70.0
Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 234
Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 227
Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 234
Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 172
Height (Decimal Inch): 4.6600
Length (Decimal Inch – 4 Decimals): 4.0000
Width (Decimal Inch – 4 Decimals): 2.8800
UNSPSC Code: 26111500
Country of Origin: UNITED STATES
