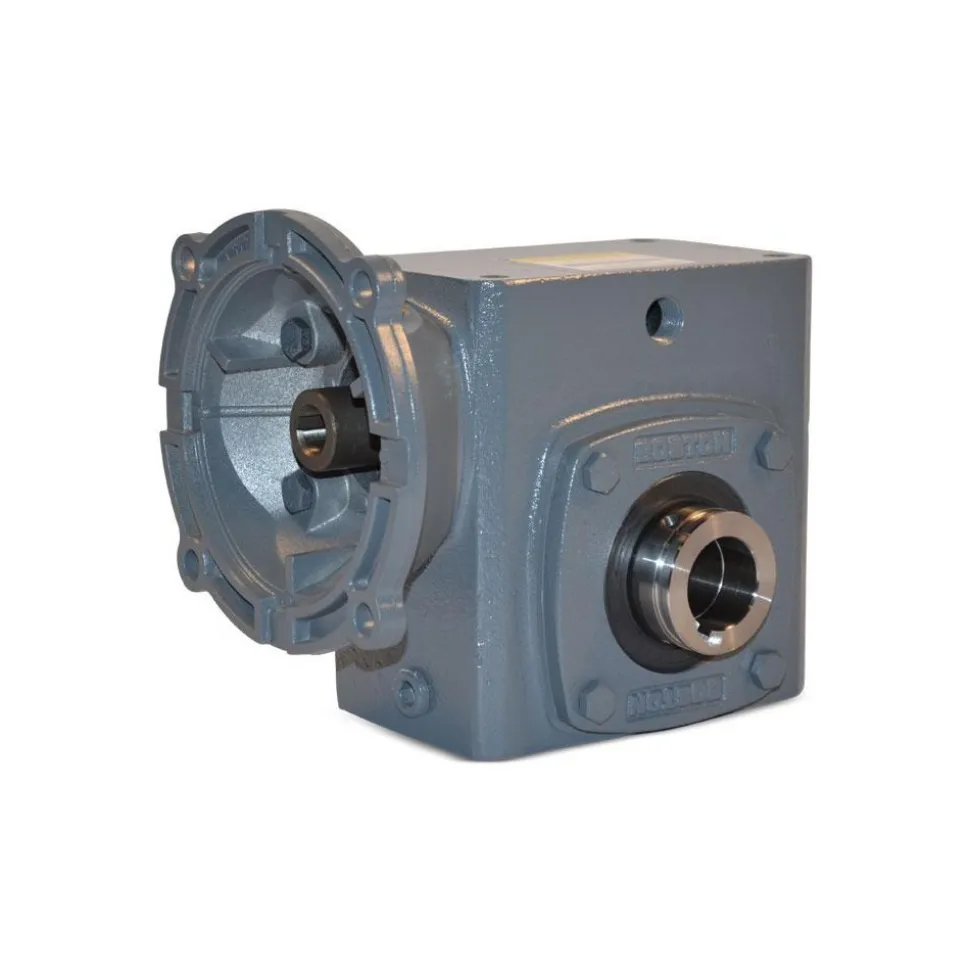

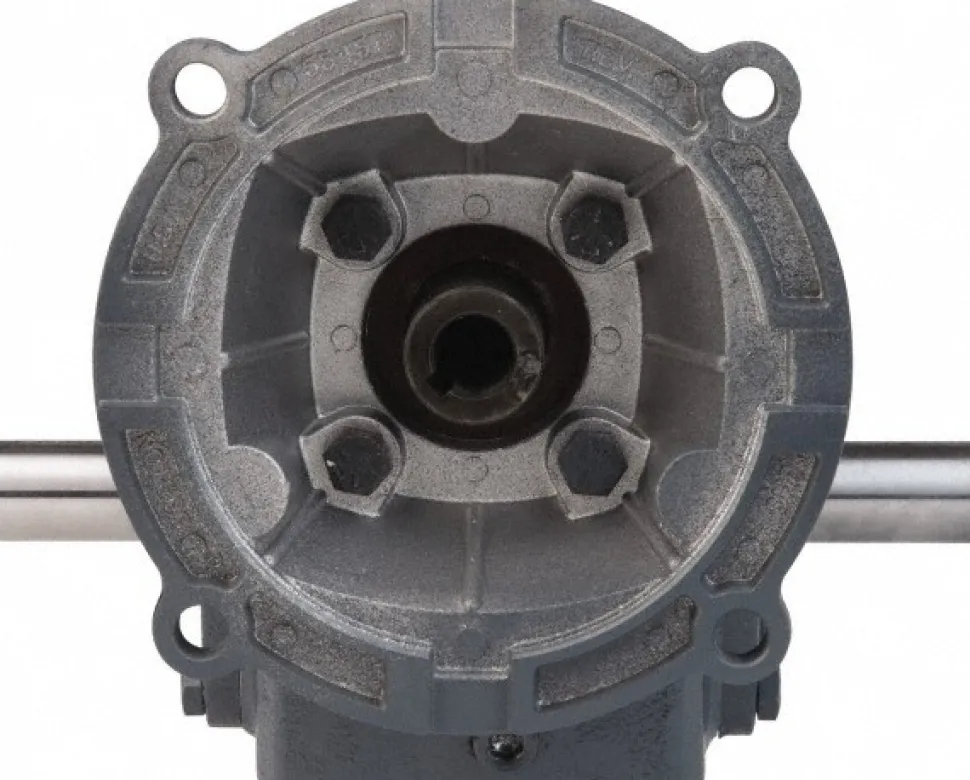

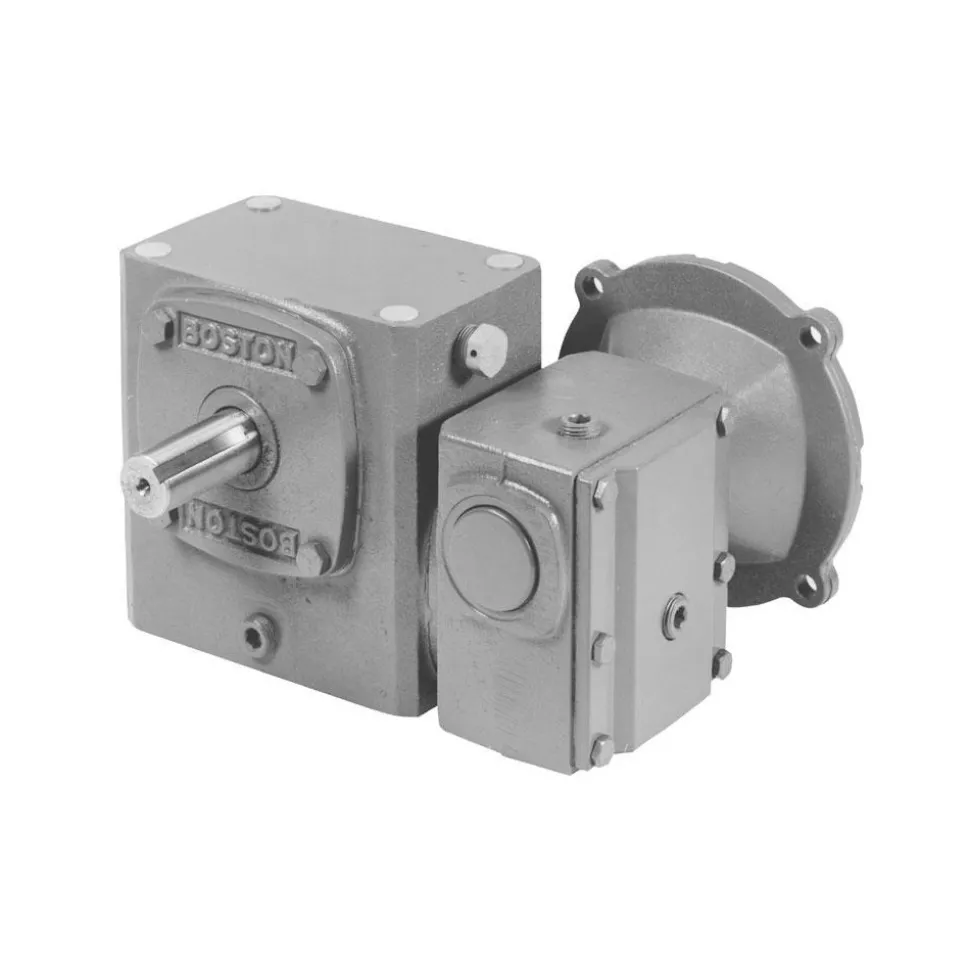

Speed Reducer: Quill, 1.54″ Center to Center Shaft, 10:1, 1.2 hp Max Input, Worm Gear
126,89 $
Specifications
| Centerline Distance: 1.540 | Reducer Type: Quill |
| Shaft Type: Double | Ratio: 10:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 1.5400 in |
| PartNo: F715-10-B5-H | Speed Ratio: 10:1 |
| Maximum Input Horsepower: 1.20 | Maximum Output Speed: 175.0 |
| Nema/Iec Frame Size: 56C NEMA | Maximum Torque (In/Lb.): 397.00 |
| Bore Diameter (Decimal Inch): 0.7500 | Shaft Diameter (Decimal Inch): 0.7500 |
| Gear Type: Worm | Housing Material: Cast Iron |
| Overall Length (Decimal Inch): 7.2500 | Overall Width (Decimal Inch – 4 Decimals): 5.8125 |
| Standards: ISO 9001:2015 | Output RPM at 1750 Input: 175.0 |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 165 | Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 248 |
| Torque Output (In/Lb) with 1 Horsepower Motor @ 1750: 330.000 | Height (Decimal Inch): 3.4400 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 1.540 | |
| Reducer Type: Quill | |
| Shaft Type: Double | |
| Ratio: 10:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 1.5400 in | |
| PartNo: F715-10-B5-H | |
| Speed Ratio: 10:1 | |
| Maximum Input Horsepower: 1.20 | |
| Maximum Output Speed: 175.0 | |
| Nema/Iec Frame Size: 56C NEMA | |
| Maximum Torque (In/Lb.): 397.00 | |
| Bore Diameter (Decimal Inch): 0.7500 | |
| Shaft Diameter (Decimal Inch): 0.7500 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Length (Decimal Inch): 7.2500 | |
| Overall Width (Decimal Inch – 4 Decimals): 5.8125 | |
| Standards: ISO 9001:2015 | |
| Output RPM at 1750 Input: 175.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 165 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 248 | |
| Torque Output (In/Lb) with 1 Horsepower Motor @ 1750: 330.000 | |
| Height (Decimal Inch): 3.4400 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 93573632 |
| Mfr# | 51901 |
| Big Book# | 3713 |
