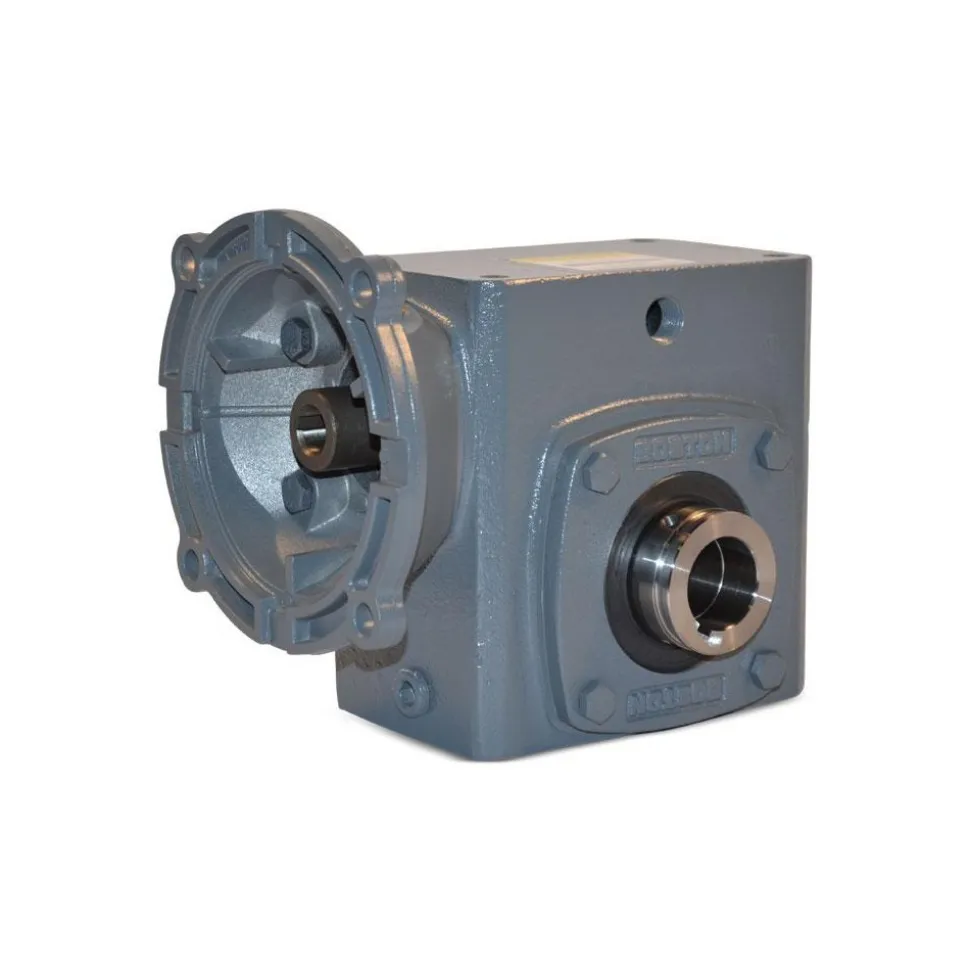

Speed Reducer: Quill, 1.75″ Center to Center Shaft, 10:1, 1.61 hp Max Input, Worm Gear
Original price was: 1 109,00 $.130,89 $Current price is: 130,89 $.
Specifications
| Centerline Distance: 1.750 | Reducer Type: Quill |
| Shaft Type: Single | Ratio: 10:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 1.7500 in |
| Speed Ratio: 10:1 | Maximum Input Horsepower: 1.61 |
| Maximum Output Speed: 175.0 | Nema/Iec Frame Size: 56C NEMA |
| Maximum Torque (In/Lb.): 536.00 | Bore Diameter (Decimal Inch): 0.6250 |
| Shaft Diameter (Decimal Inch): 0.8750 | Gear Type: Worm |
| Housing Material: Cast Iron | Overall Length (Decimal Inch): 8.6200 |
| Overall Width (Decimal Inch – 4 Decimals): 5.5100 | Overall Height (Decimal Inch): 3.6200 |
| Standards: ISO 9001:2015 | Base Type: PROJ |
| Output RPM at 1750 Input: 175.0 | Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750: 499.000 |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 160 | Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 249 |
| Torque Output (In/Lb) with 1 Horsepower Motor @ 1750: 333.000 | UNSPSC Code: 26111500 |
| Country of Origin: UNITED STATES | |
| Centerline Distance: 1.750 | |
| Reducer Type: Quill | |
| Shaft Type: Single | |
| Ratio: 10:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 1.7500 in | |
| Speed Ratio: 10:1 | |
| Maximum Input Horsepower: 1.61 | |
| Maximum Output Speed: 175.0 | |
| Nema/Iec Frame Size: 56C NEMA | |
| Maximum Torque (In/Lb.): 536.00 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Shaft Diameter (Decimal Inch): 0.8750 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Length (Decimal Inch): 8.6200 | |
| Overall Width (Decimal Inch – 4 Decimals): 5.5100 | |
| Overall Height (Decimal Inch): 3.6200 | |
| Standards: ISO 9001:2015 | |
| Base Type: PROJ | |
| Output RPM at 1750 Input: 175.0 | |
| Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750: 499.000 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 160 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 249 | |
| Torque Output (In/Lb) with 1 Horsepower Motor @ 1750: 333.000 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 06383483 |
| Mfr# | 51927 |
| Big Book# | 3713 |
