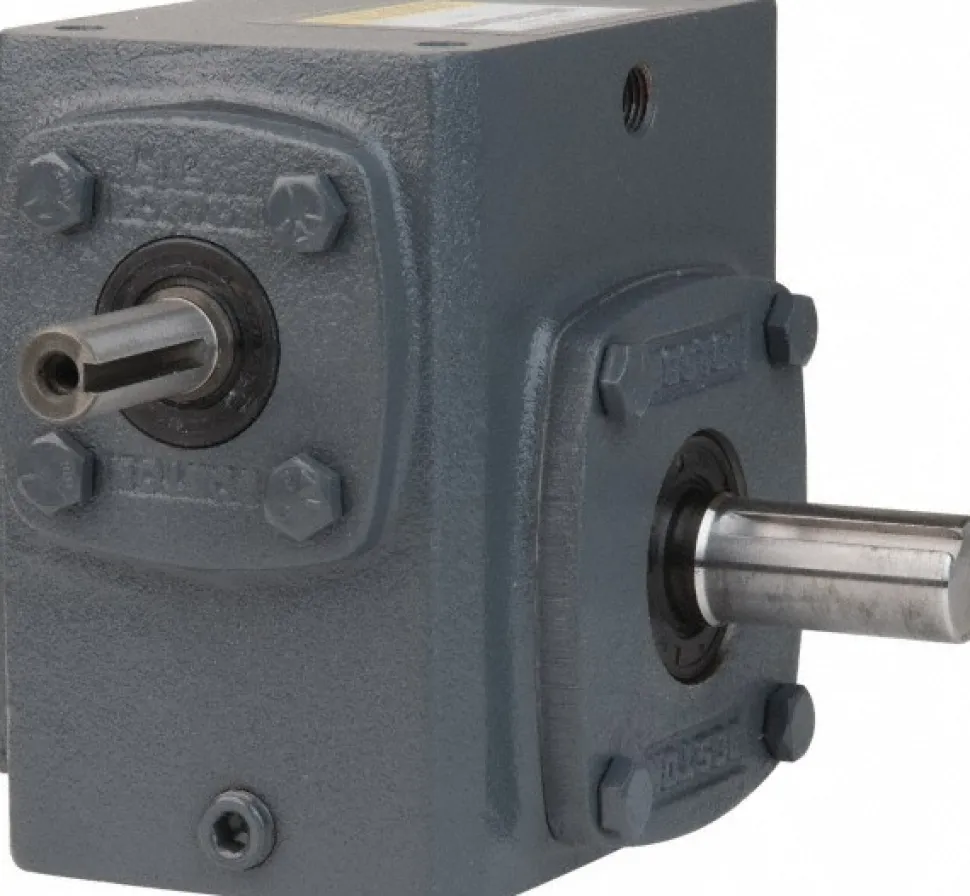

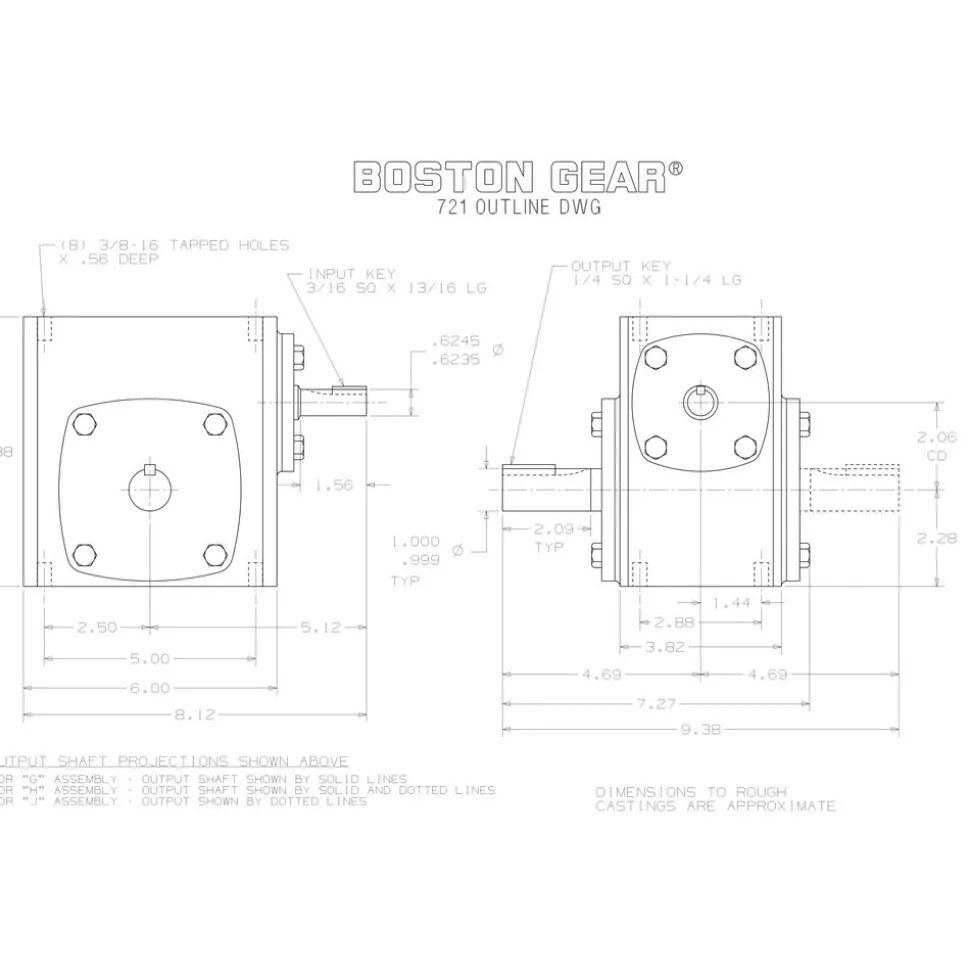

Speed Reducer: Quill, 2.06″ Center to Center Shaft, 20:1, 1.4 hp Max Input, Worm Gear
128,89 $
Specifications
| Centerline Distance: 2.060 | Reducer Type: Quill |
| Shaft Type: Single | Ratio: 20:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 2.0600 in |
| PartNo: 721-20-J | Speed Ratio: 20:1 |
| Maximum Input Horsepower: 1.40 | Maximum Output Speed: 88.0 |
| Maximum Torque (In/Lb.): 892.00 | Bore Diameter (Decimal Inch): 1.0000 |
| Shaft Diameter (Decimal Inch): 0.6250 | Gear Type: Worm |
| Housing Material: Cast Iron | Overall Width (Decimal Inch – 4 Decimals): 7.2800 |
| Standards: ISO 9001:2015 | Output RPM at 1750 Input: 88.0 |
| Height (Decimal Inch): 4.3400 | UNSPSC Code: 26111500 |
| Country of Origin: UNITED STATES | |
| Centerline Distance: 2.060 | |
| Reducer Type: Quill | |
| Shaft Type: Single | |
| Ratio: 20:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 2.0600 in | |
| PartNo: 721-20-J | |
| Speed Ratio: 20:1 | |
| Maximum Input Horsepower: 1.40 | |
| Maximum Output Speed: 88.0 | |
| Maximum Torque (In/Lb.): 892.00 | |
| Bore Diameter (Decimal Inch): 1.0000 | |
| Shaft Diameter (Decimal Inch): 0.6250 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Width (Decimal Inch – 4 Decimals): 7.2800 | |
| Standards: ISO 9001:2015 | |
| Output RPM at 1750 Input: 88.0 | |
| Height (Decimal Inch): 4.3400 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 91235465 |
| Mfr# | 51692 |
| Big Book# | 3717 |
