Sale!

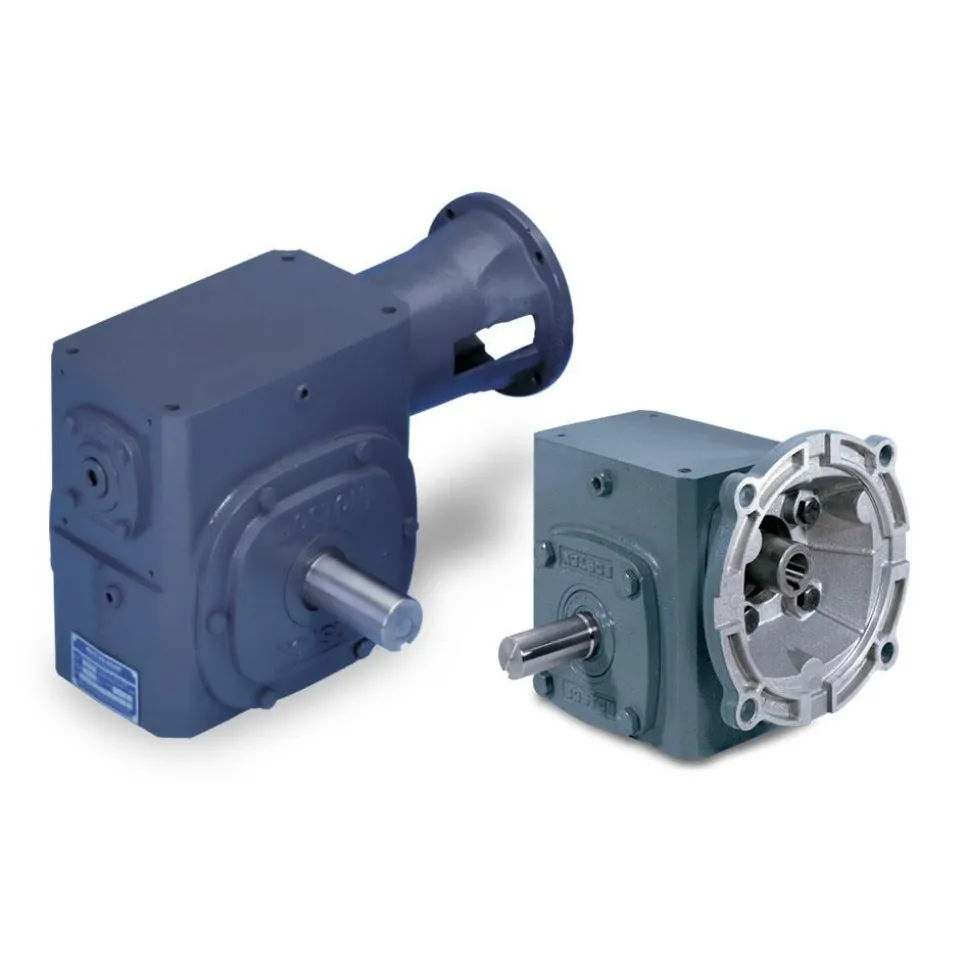

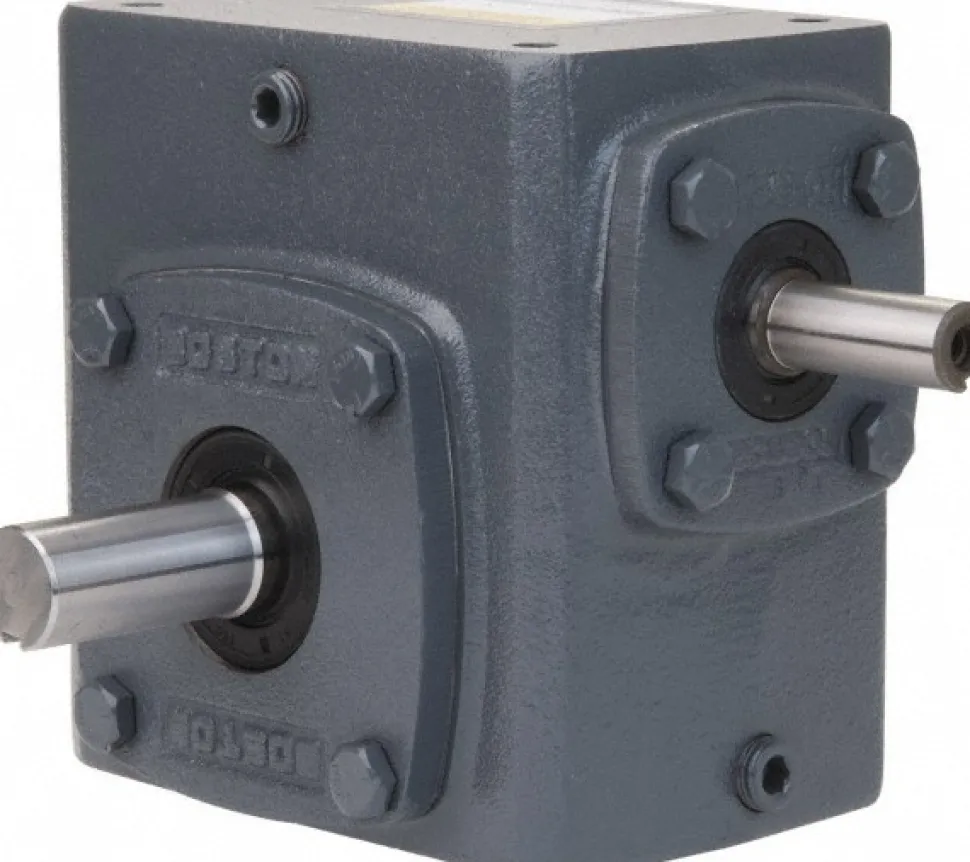

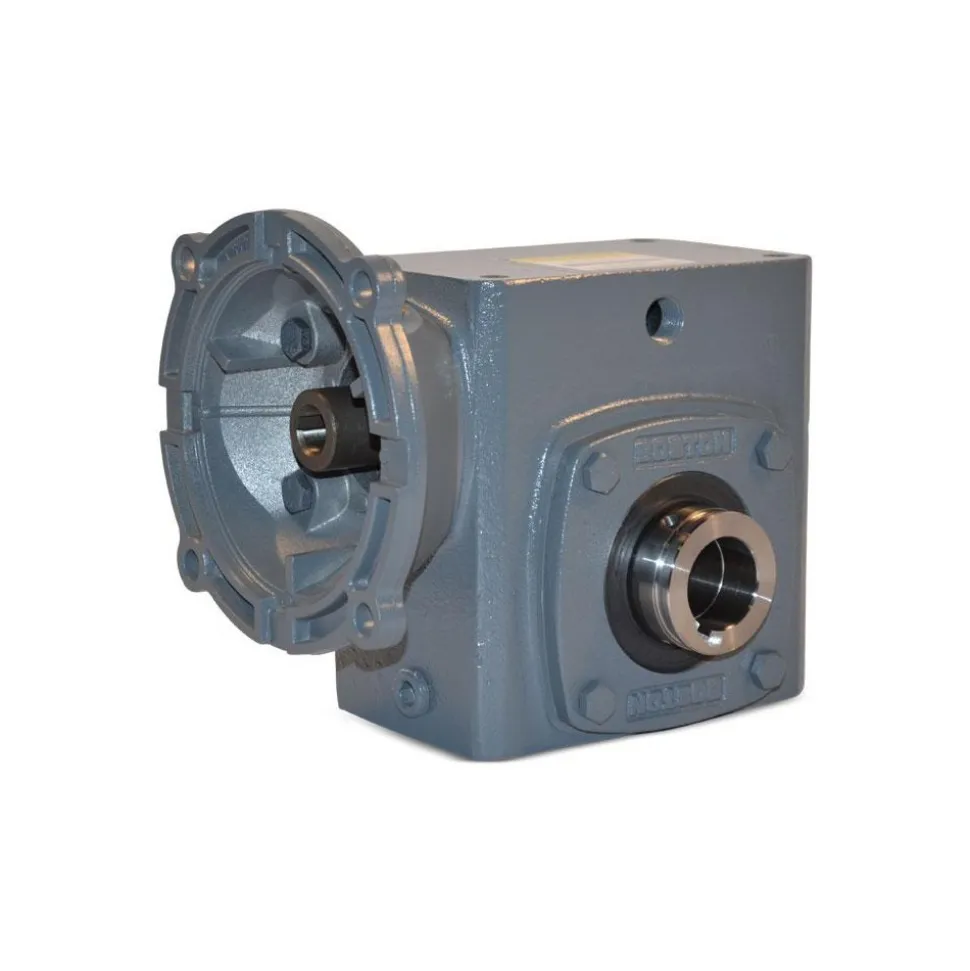

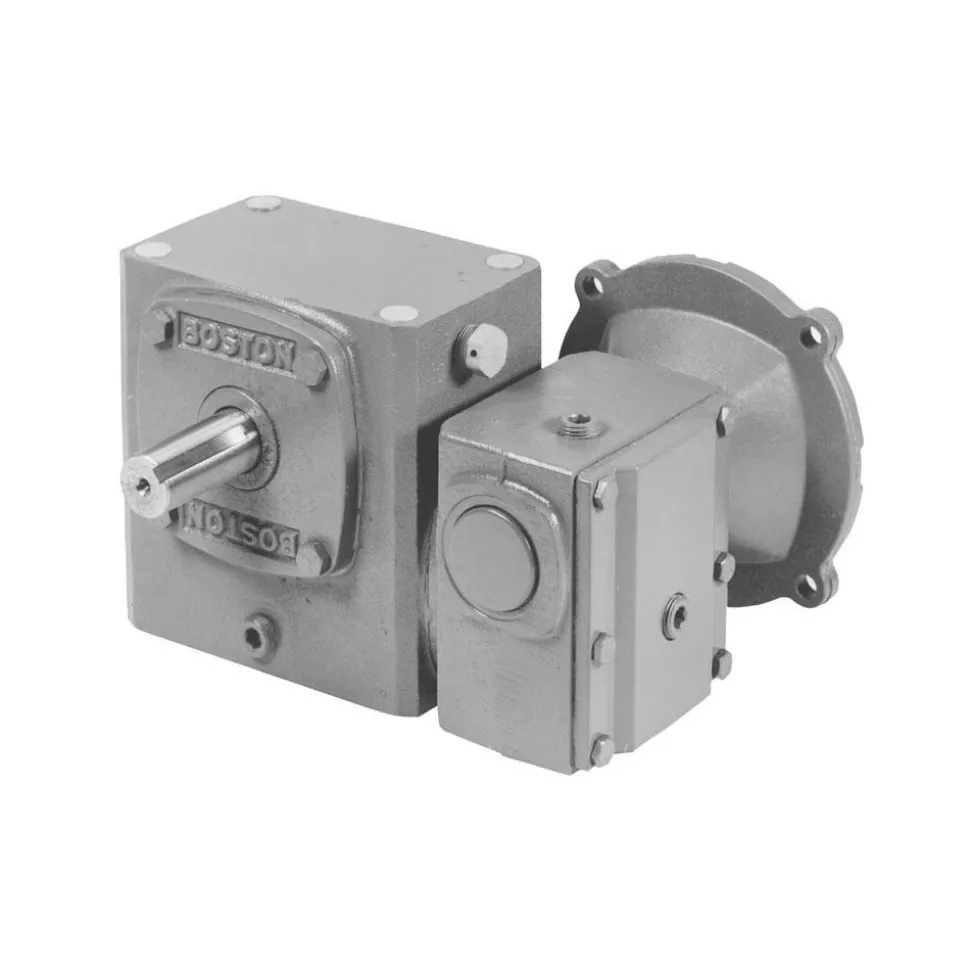

Speed Reducer: Quill, 2.62″ Center to Center Shaft, 60:1, 0.89 hp Max Input, Worm Gear
Original price was: 1 269,00 $.132,99 $Current price is: 132,99 $.
Specifications
| Centerline Distance: 2.620 | Reducer Type: Quill |
| Shaft Type: Single | Ratio: 60:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 2.6200 in |
| Speed Ratio: 60:1 | Maximum Input Horsepower: 0.89 |
| Maximum Output Speed: 29.0 | Maximum Torque (In/Lb.): 1385.00 |
| Bore Diameter (Decimal Inch): 1.1250 | Shaft Diameter (Decimal Inch): 1.1250 |
| Gear Type: Worm | Housing Material: Cast Iron |
| Overall Width (Decimal Inch – 4 Decimals): 8.5300 | Standards: ISO 9001:2015 |
| Base Type: PROJ | Output RPM at 1750 Input: 29.0 |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 670 | Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 1004 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 2.620 | |
| Reducer Type: Quill | |
| Shaft Type: Single | |
| Ratio: 60:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 2.6200 in | |
| Speed Ratio: 60:1 | |
| Maximum Input Horsepower: 0.89 | |
| Maximum Output Speed: 29.0 | |
| Maximum Torque (In/Lb.): 1385.00 | |
| Bore Diameter (Decimal Inch): 1.1250 | |
| Shaft Diameter (Decimal Inch): 1.1250 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Width (Decimal Inch – 4 Decimals): 8.5300 | |
| Standards: ISO 9001:2015 | |
| Base Type: PROJ | |
| Output RPM at 1750 Input: 29.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 670 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 1004 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 06383723 |
| Mfr# | 51759 |
| Big Book# | 3717 |
