Sale!

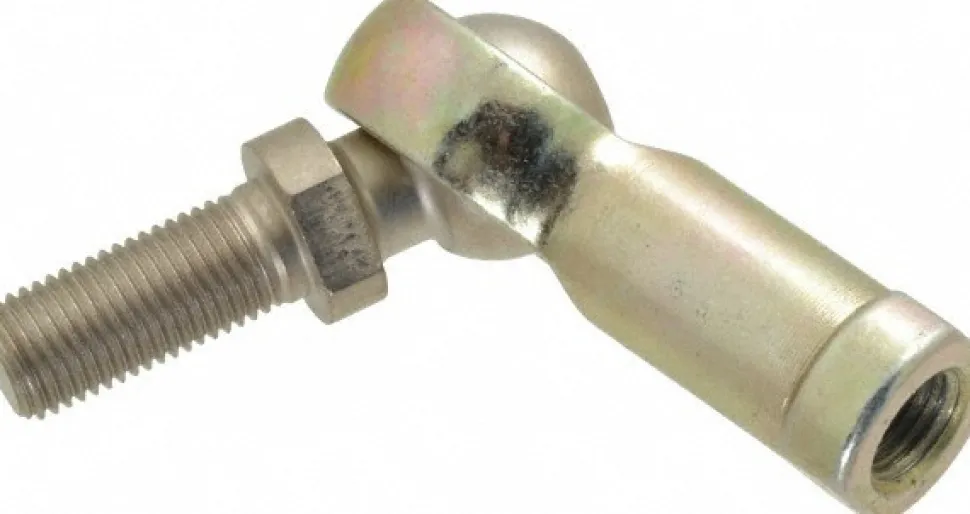

Spherical Rod End: 3/8-24″ Shank Thread, 0.375″ Rod ID, 1″ Rod OD, 0.562″ Shank Dia, 0.937″ Shank Length, 3,250 lb Static Load Capacity
Original price was: 12,00 $.8,89 $Current price is: 8,89 $.
Specifications
| Maximum Outside Diameter (Inch): 1 | Maximum Static Load Capacity: 3250.0 |
| Shank Diameter (Decimal Inch): 0.5620 | Thread Size: 3/8-24 |
| Shank Diameter: 0.7874 | Shank Length (Decimal Inch): 0.9370 |
| Housing Material: Steel | Gender: Male |
| With Stud: Yes | Thread Direction: Right Hand |
| Bore Diameter (Decimal Inch): 0.3750 | Static Load Capacity: 3250.00 |
| Raceway Material: Molded Nylon | Thread Type: Female |
| Width (Decimal Inch – 4 Decimals): 0.5000 | UNSPSC Code: 31171508 |
| Maximum Outside Diameter (Inch): 1 | |
| Maximum Static Load Capacity: 3250.0 | |
| Shank Diameter (Decimal Inch): 0.5620 | |
| Thread Size: 3/8-24 | |
| Shank Diameter: 0.7874 | |
| Shank Length (Decimal Inch): 0.9370 | |
| Housing Material: Steel | |
| Gender: Male | |
| With Stud: Yes | |
| Thread Direction: Right Hand | |
| Bore Diameter (Decimal Inch): 0.3750 | |
| Static Load Capacity: 3250.00 | |
| Raceway Material: Molded Nylon | |
| Thread Type: Female | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| UNSPSC Code: 31171508 |
| MSC# | 73202160 |
| Mfr# | PFS6G |
| Big Book# | 3814 |
