Sale!

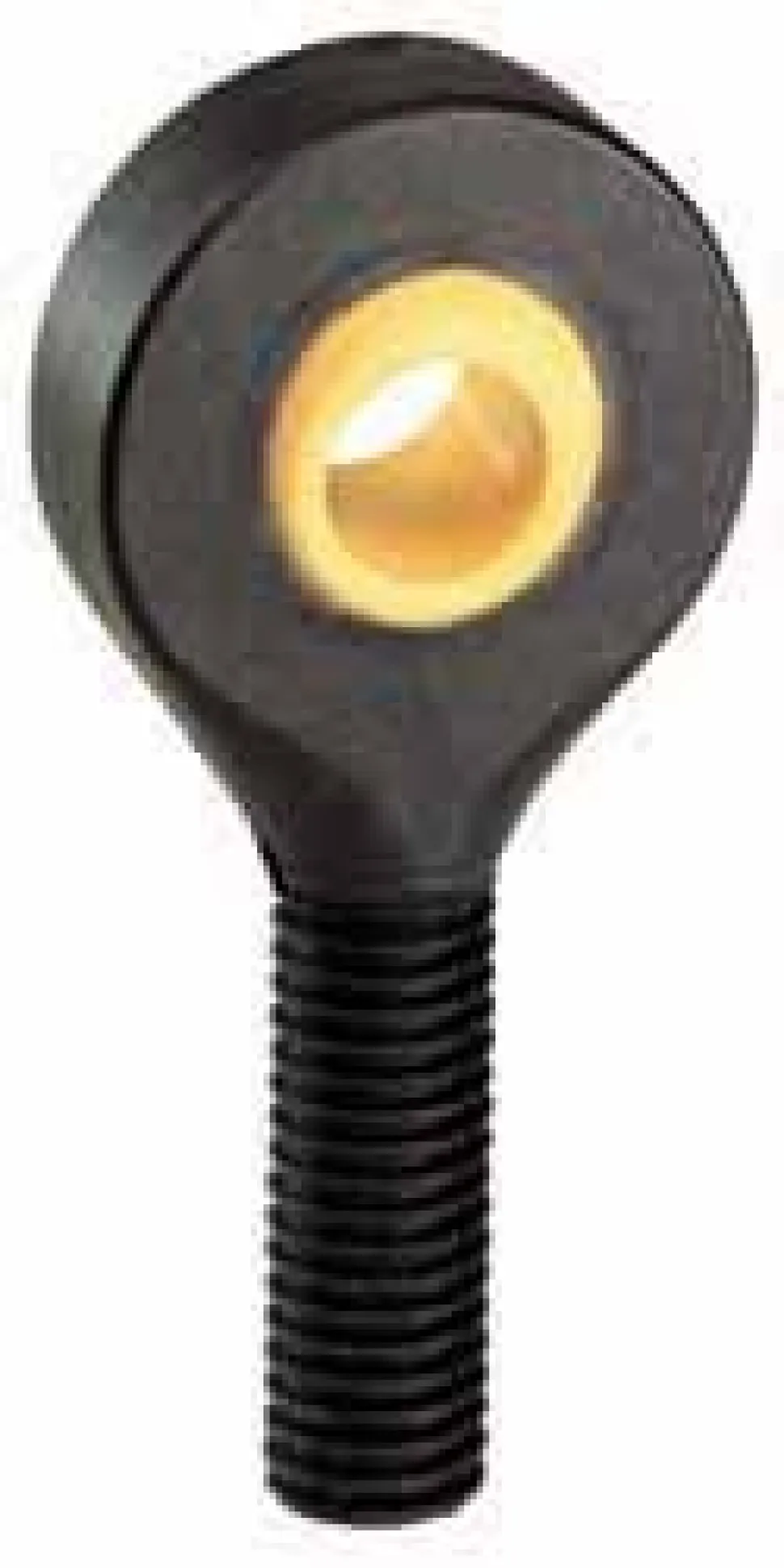

Spherical Rod End: 7/16-20″ Shank Thread, 7/16″ Rod ID, 1-1/8″ Rod OD, 0.4375″ Shank Dia, 1.375″ Shank Length, 810 lb Static Load Capacity
Original price was: 36,00 $.27,99 $Current price is: 27,99 $.
Specifications
| Style: Self Aligning | Maximum Outside Diameter (Inch): 1-1/8 |
| Maximum Static Load Capacity: 810.0 | Shank Diameter (Decimal Inch): 0.4375 |
| Thread Size: 7/16-20 | Shank Diameter: 0.4724 |
| Shank Length (Decimal Inch): 1.3750 | Thread Direction: Left Hand |
| Bore Diameter (Inch): 7/16 | Bore Diameter (Decimal Inch): 0.4375 |
| Raceway Material: Plastic | Overall Length (Decimal Inch): 2.6870 |
| Overall Length (Inch): 2-11/16 | Load Capacity (Lb.): 517.000 |
| Width (Decimal Inch – 4 Decimals): 0.5620 | UNSPSC Code: 31171508 |
| Style: Self Aligning | |
| Maximum Outside Diameter (Inch): 1-1/8 | |
| Maximum Static Load Capacity: 810.0 | |
| Shank Diameter (Decimal Inch): 0.4375 | |
| Thread Size: 7/16-20 | |
| Shank Diameter: 0.4724 | |
| Shank Length (Decimal Inch): 1.3750 | |
| Thread Direction: Left Hand | |
| Bore Diameter (Inch): 7/16 | |
| Bore Diameter (Decimal Inch): 0.4375 | |
| Raceway Material: Plastic | |
| Overall Length (Decimal Inch): 2.6870 | |
| Overall Length (Inch): 2-11/16 | |
| Load Capacity (Lb.): 517.000 | |
| Width (Decimal Inch – 4 Decimals): 0.5620 | |
| UNSPSC Code: 31171508 |
| MSC# | 05015714 |
| Mfr# | KALI-07 |
Be the first to review “Spherical Rod End: 7/16-20″ Shank Thread, 7/16″ Rod ID, 1-1/8″ Rod OD, 0.4375″ Shank Dia, 1.375″ Shank Length, 810 lb Static Load Capacity”
