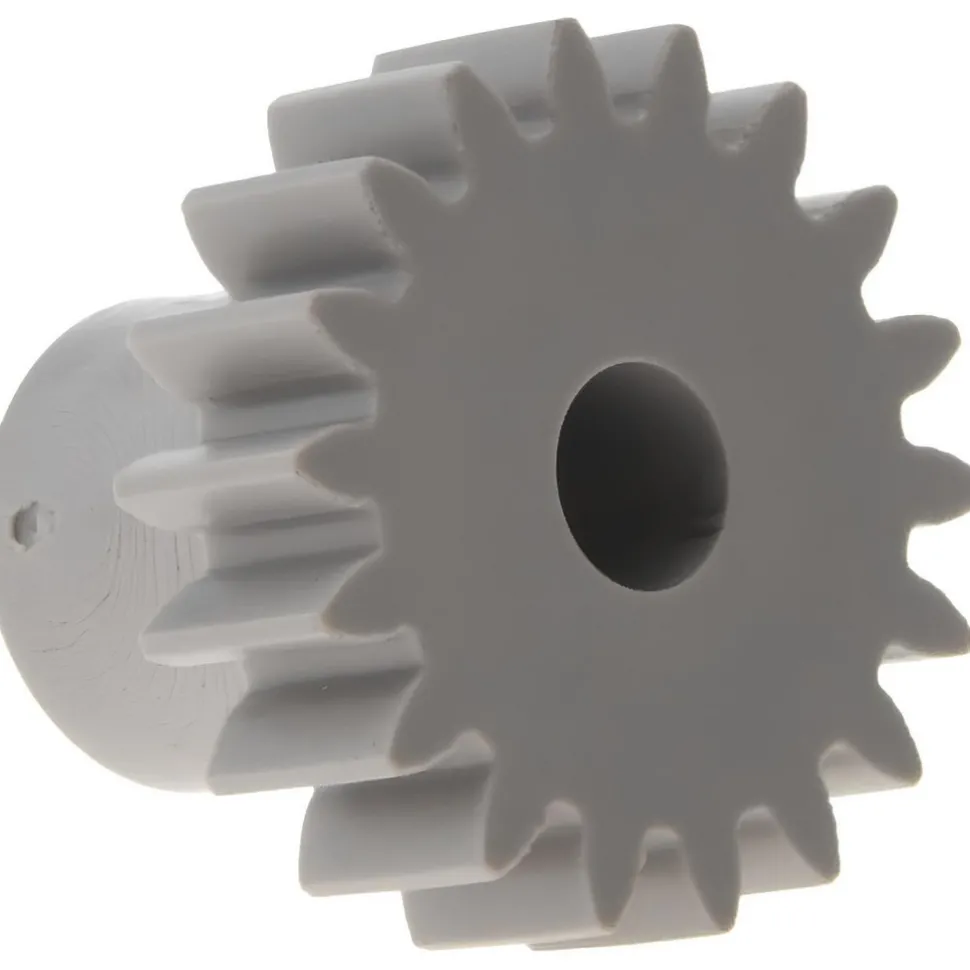

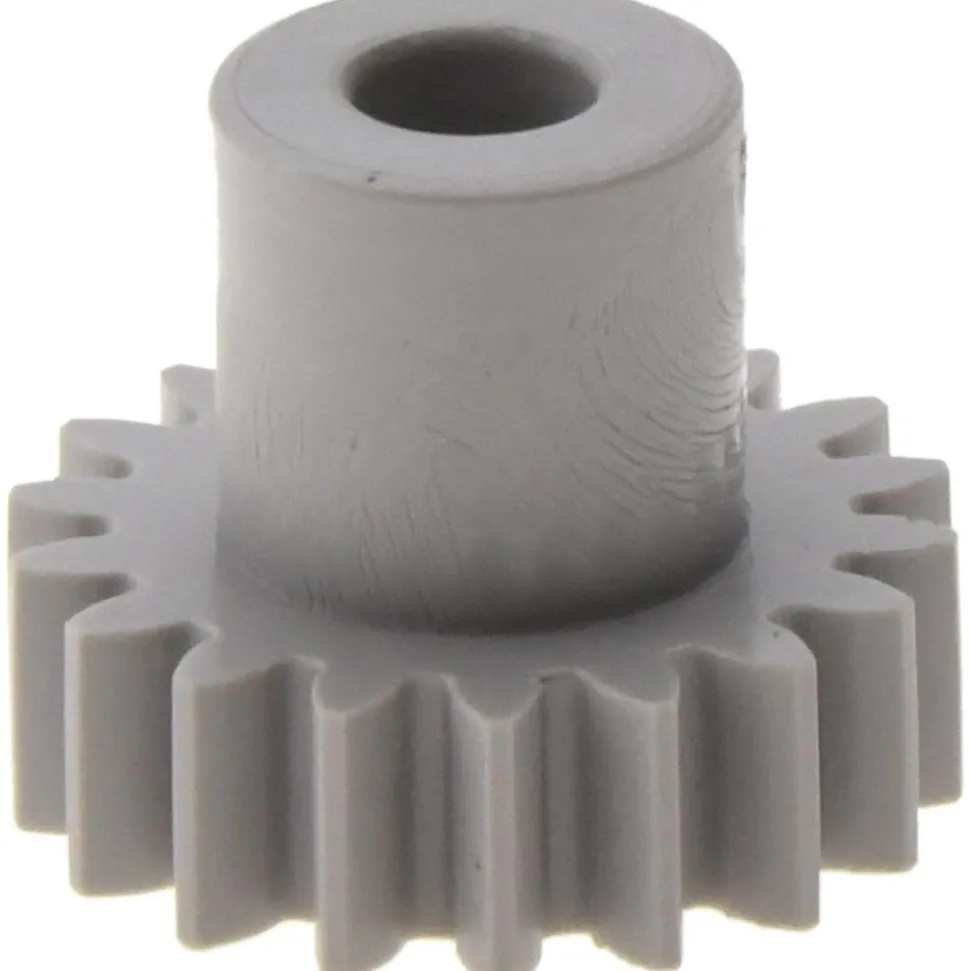

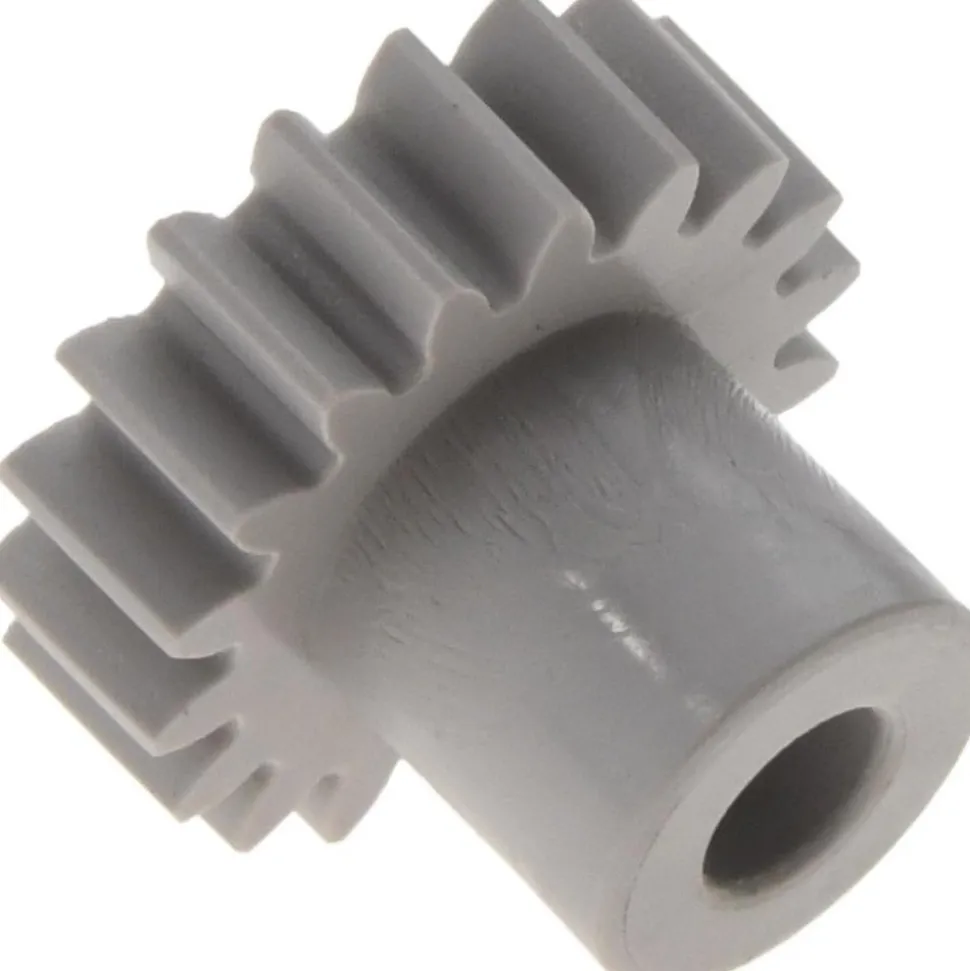

Spur Gear: 18 Teeth, 5/32″ Bore Dia, Standard Bore
Original price was: 4,00 $.2,89 $Current price is: 2,89 $.
Specifications
| Gear Type: Spur | Pitch Diameter (Decimal Inch): 0.5620 |
| Outside Diameter (Decimal Inch): 0.6250 | Face Width (Decimal Inch): 0.1880 |
| Face Width (Inch): 3/16 | Hub Diameter (Decimal Inch): 0.3400 |
| Hub Diameter (Inch): 11/32 | Pressure Angle: 20.00 |
| Material: POM | Bore Type: Standard |
| Hub Width (Inch): 5/16 | Diametral Pitch: 32 |
| Bore Diameter (Inch): 5/32 | Bore Diameter (Decimal Inch): 0.1560 |
| Number Of Teeth: 18 | UNSPSC Code: 31171700 |
| Product Service Code: 3020 | Country of Origin: UNITED STATES |
| Gear Type: Spur | |
| Pitch Diameter (Decimal Inch): 0.5620 | |
| Outside Diameter (Decimal Inch): 0.6250 | |
| Face Width (Decimal Inch): 0.1880 | |
| Face Width (Inch): 3/16 | |
| Hub Diameter (Decimal Inch): 0.3400 | |
| Hub Diameter (Inch): 11/32 | |
| Pressure Angle: 20.00 | |
| Material: POM | |
| Bore Type: Standard | |
| Hub Width (Inch): 5/16 | |
| Diametral Pitch: 32 | |
| Bore Diameter (Inch): 5/32 | |
| Bore Diameter (Decimal Inch): 0.1560 | |
| Number Of Teeth: 18 | |
| UNSPSC Code: 31171700 | |
| Product Service Code: 3020 | |
| Country of Origin: UNITED STATES |
| MSC# | 03125341 |
| Mfr# | 3218 |
| Big Book# | 3758 |
