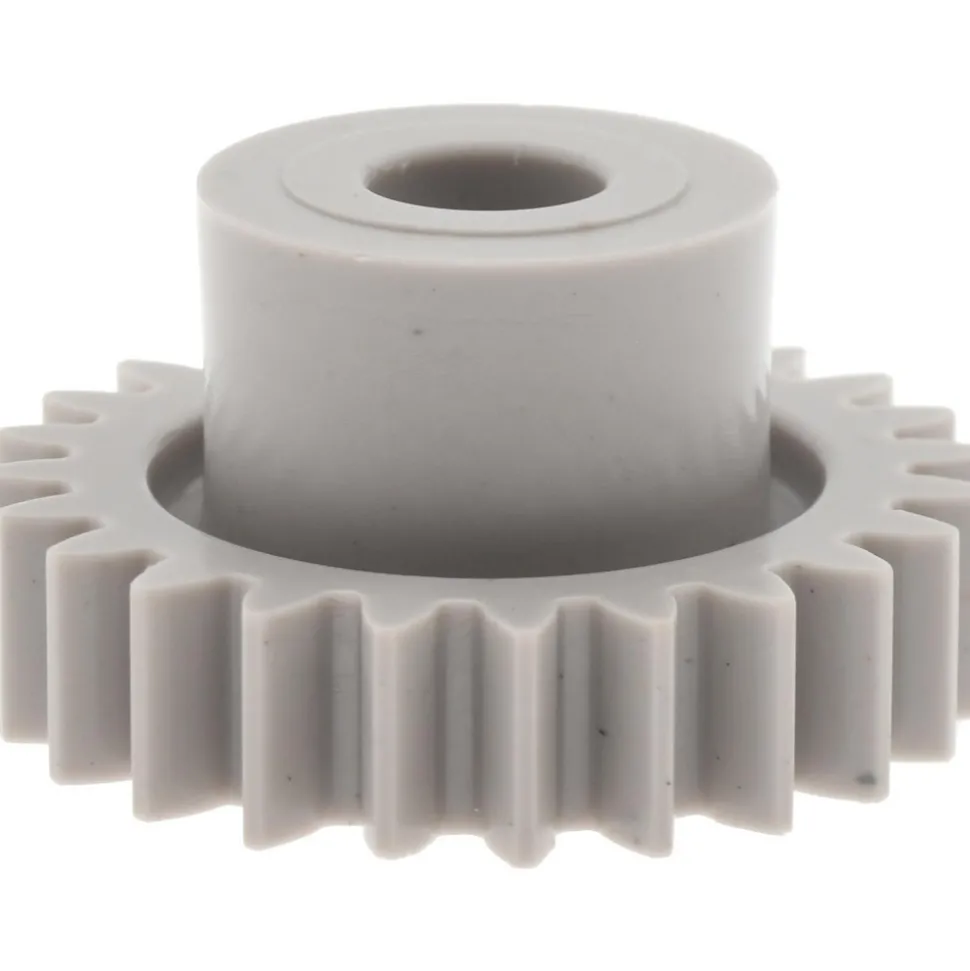

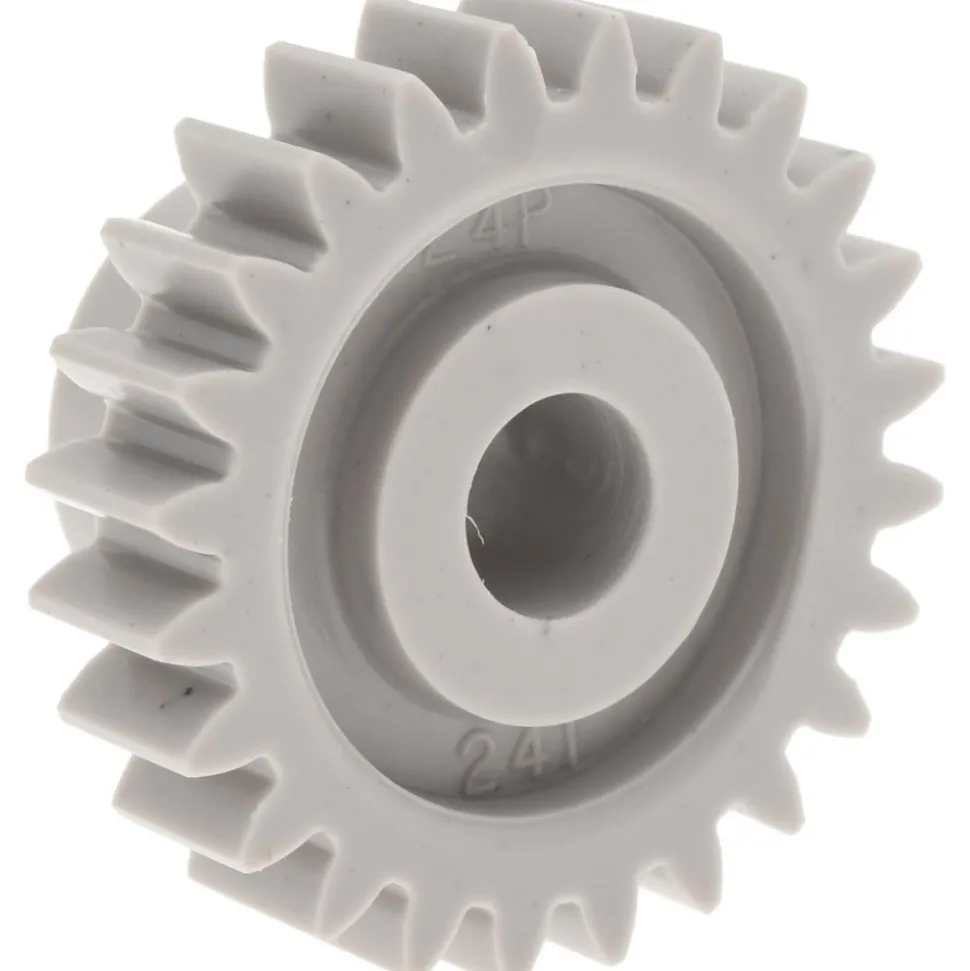

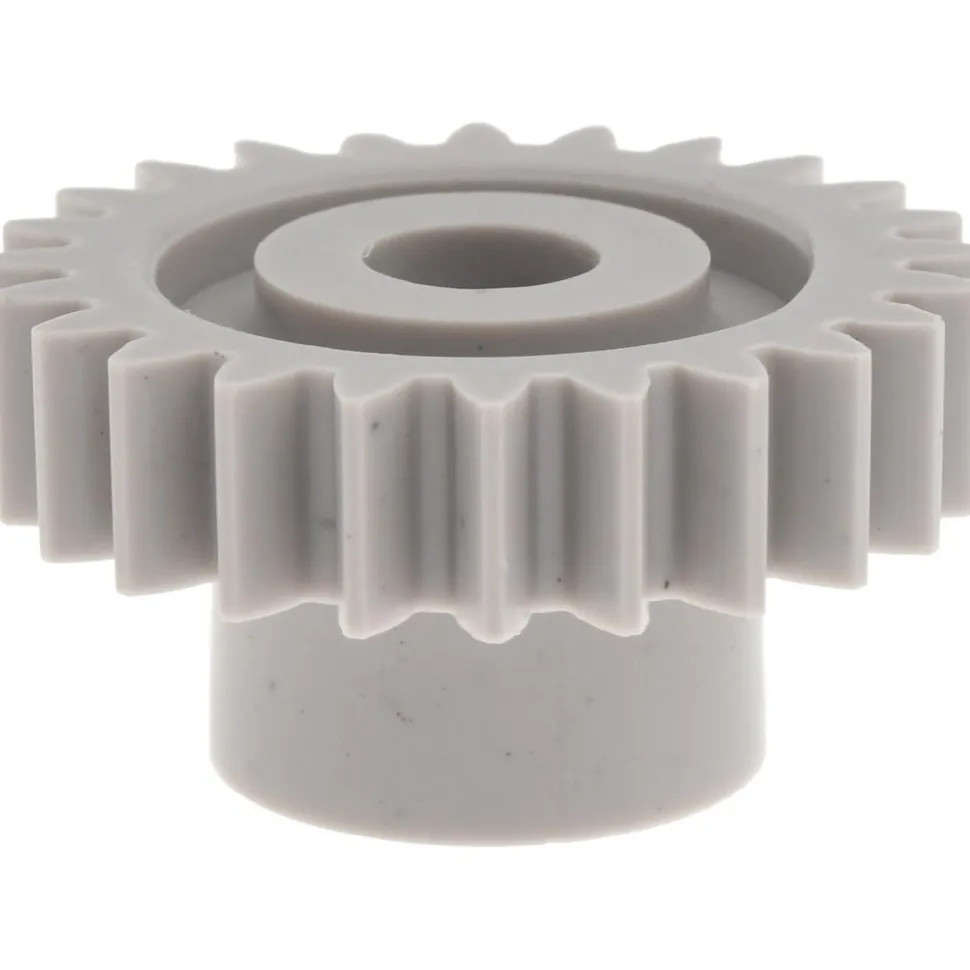

Spur Gear: 24 Teeth, 1/4″ Bore Dia, Standard Bore
2,89 $
Specifications
| Gear Type: Spur | Pitch Diameter (Decimal Inch): 1.0000 |
| Outside Diameter (Decimal Inch): 1.0830 | Face Width (Decimal Inch): 0.2500 |
| Face Width (Inch): 1/4 | Hub Diameter (Decimal Inch): 0.6300 |
| Hub Diameter (Inch): 5/8 | Pressure Angle: 20.00 |
| Material: POM | Bore Type: Standard |
| Hub Width (Inch): 5/16 | Diametral Pitch: 24 |
| Bore Diameter (Inch): 1/4 | Bore Diameter (Decimal Inch): 0.2500 |
| Number Of Teeth: 24 | UNSPSC Code: 31171700 |
| Product Service Code: 3020 | Country of Origin: UNITED STATES |
| Gear Type: Spur | |
| Pitch Diameter (Decimal Inch): 1.0000 | |
| Outside Diameter (Decimal Inch): 1.0830 | |
| Face Width (Decimal Inch): 0.2500 | |
| Face Width (Inch): 1/4 | |
| Hub Diameter (Decimal Inch): 0.6300 | |
| Hub Diameter (Inch): 5/8 | |
| Pressure Angle: 20.00 | |
| Material: POM | |
| Bore Type: Standard | |
| Hub Width (Inch): 5/16 | |
| Diametral Pitch: 24 | |
| Bore Diameter (Inch): 1/4 | |
| Bore Diameter (Decimal Inch): 0.2500 | |
| Number Of Teeth: 24 | |
| UNSPSC Code: 31171700 | |
| Product Service Code: 3020 | |
| Country of Origin: UNITED STATES |
| MSC# | 03125101 |
| Mfr# | 2424 |
| Big Book# | 3758 |
