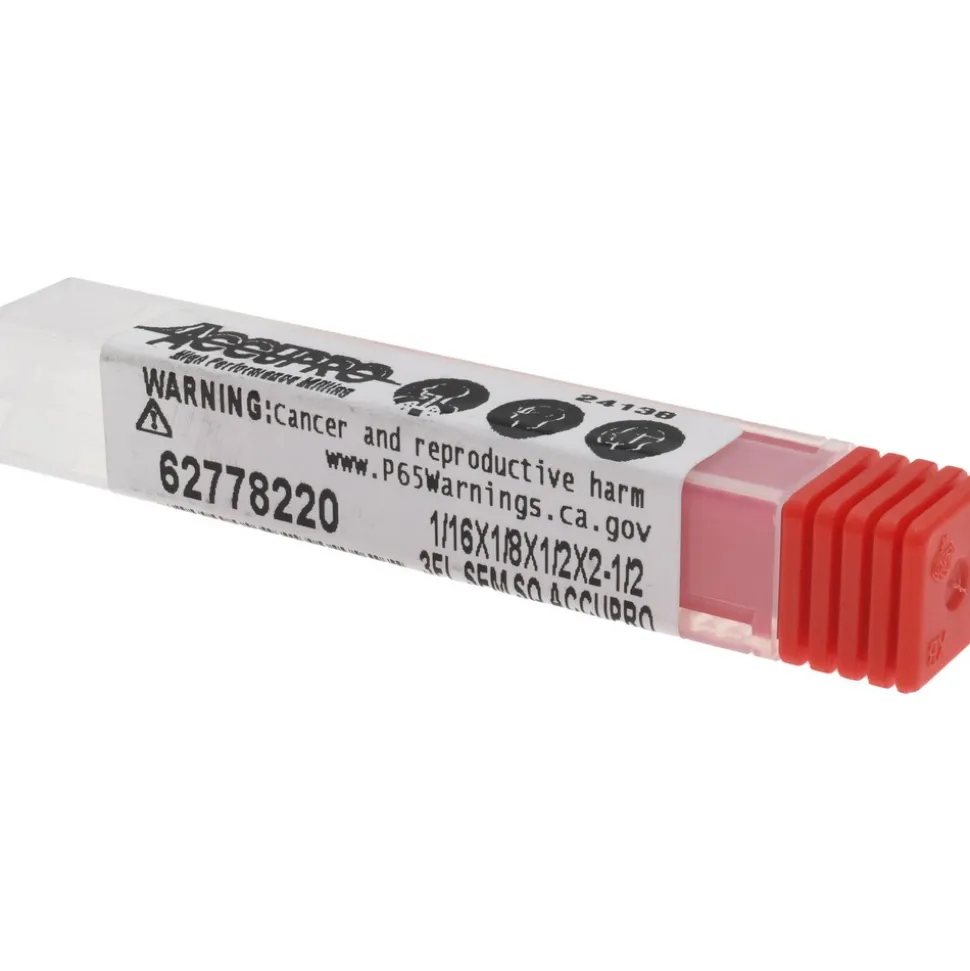

Square End Mill: 1/16″ Dia, 1/2″ LOC
17,89 $
Specifications
| Mill Diameter (Decimal Inch): 0.0625 | Mill Diameter (Inch): 1/16 |
| Number Of Flutes: 3 | End Mill Material: Solid Carbide |
| Length of Cut (Decimal Inch): 0.5000 | Length of Cut (Inch): 1/2 |
| Shank Diameter (Decimal Inch): 0.1250 | Shank Diameter (Inch): 1/8 |
| Overall Length (Decimal Inch): 2.5000 | Overall Length (Inch): 2-1/2 |
| Single Or Double End: Single | Coating/Finish Family: Bright/Uncoated |
| Centercutting: Yes | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Extended Reach: No |
| Coolant Through: No | Helix Angle: 30 |
| Coating/Finish: Bright/Uncoated | Variable Helix: No |
| Variable Index: No | Chipbreaker: No |
| Flute Type: Spiral | Material Grade: Micrograin |
| Length Of Cut Range (Decimal Inch): 0.5000 – 0.6000 | Mill Diameter Tolerance: +0.0000/-0.0010 in |
| Shank Diameter Tolerance: -0.0001/-0.0003 in | Series: ASQSC3-CC-30H |
| System Of Measurement: Fractional Inch | UNSPSC Code: 27112803 |
| Product Name: Accupro Miniatures | Country of Origin: VARIOUS |
| Mill Diameter (Decimal Inch): 0.0625 | |
| Mill Diameter (Inch): 1/16 | |
| Number Of Flutes: 3 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Decimal Inch): 0.5000 | |
| Length of Cut (Inch): 1/2 | |
| Shank Diameter (Decimal Inch): 0.1250 | |
| Shank Diameter (Inch): 1/8 | |
| Overall Length (Decimal Inch): 2.5000 | |
| Overall Length (Inch): 2-1/2 | |
| Single Or Double End: Single | |
| Coating/Finish Family: Bright/Uncoated | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 30 | |
| Coating/Finish: Bright/Uncoated | |
| Variable Helix: No | |
| Variable Index: No | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Material Grade: Micrograin | |
| Length Of Cut Range (Decimal Inch): 0.5000 – 0.6000 | |
| Mill Diameter Tolerance: +0.0000/-0.0010 in | |
| Shank Diameter Tolerance: -0.0001/-0.0003 in | |
| Series: ASQSC3-CC-30H | |
| System Of Measurement: Fractional Inch | |
| UNSPSC Code: 27112803 | |
| Product Name: Accupro Miniatures | |
| Country of Origin: VARIOUS |
| MSC# | 62778220 |
| Mfr# | 14883493 |
| Big Book# | 443 |
