Sale!

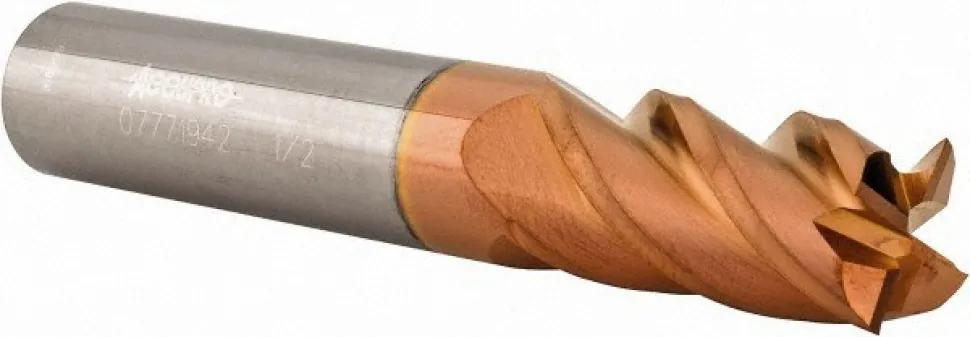

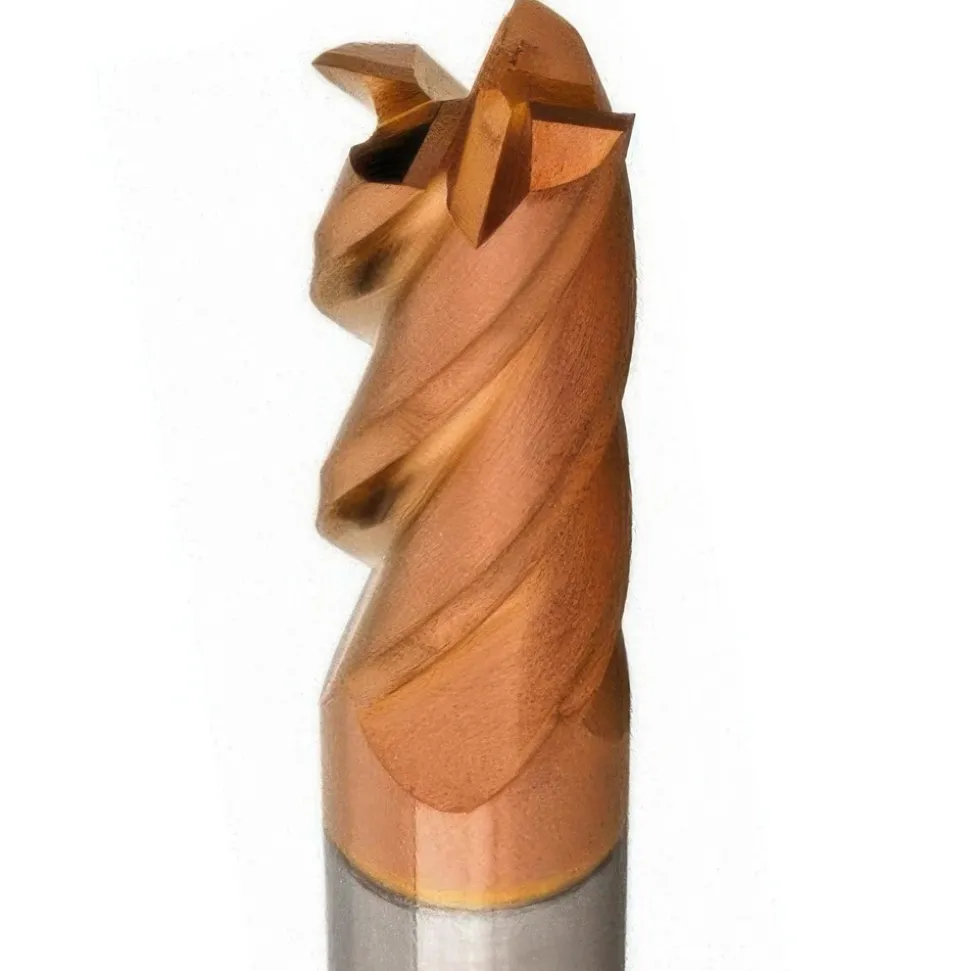

Square End Mill: 1/2″ Dia, 1″ LOC
Original price was: 63,00 $.44,99 $Current price is: 44,99 $.
Specifications
| Mill Diameter (Decimal Inch): 0.5000 | Mill Diameter (Inch): 1/2 |
| Number Of Flutes: 4 | End Mill Material: Solid Carbide |
| Length of Cut (Decimal Inch): 1.0000 | Length of Cut (Inch): 1 |
| Shank Diameter (Decimal Inch): 0.5000 | Shank Diameter (Inch): 1/2 |
| Overall Length (Decimal Inch): 3.0000 | Overall Length (Inch): 3 |
| Single Or Double End: Single | Coating/Finish Family: TiCN |
| Centercutting: Yes | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Extended Reach: No |
| Coolant Through: No | Helix Angle: 40 |
| Coating/Finish: TiCN | Variable Helix: No |
| Variable Index: No | Chipbreaker: No |
| Flute Type: Spiral | Material Grade: Micrograin |
| Length Type: Regular | Mill Diameter Tolerance: +0.0000/-0.0020 in |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | Series: ASQSC4-TC-CC-40H |
| System Of Measurement: Fractional Inch | UNSPSC Code: 27112803 |
| Country of Origin: UNITED STATES | |
| Mill Diameter (Decimal Inch): 0.5000 | |
| Mill Diameter (Inch): 1/2 | |
| Number Of Flutes: 4 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Decimal Inch): 1.0000 | |
| Length of Cut (Inch): 1 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Shank Diameter (Inch): 1/2 | |
| Overall Length (Decimal Inch): 3.0000 | |
| Overall Length (Inch): 3 | |
| Single Or Double End: Single | |
| Coating/Finish Family: TiCN | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 40 | |
| Coating/Finish: TiCN | |
| Variable Helix: No | |
| Variable Index: No | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Material Grade: Micrograin | |
| Length Type: Regular | |
| Mill Diameter Tolerance: +0.0000/-0.0020 in | |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | |
| Series: ASQSC4-TC-CC-40H | |
| System Of Measurement: Fractional Inch | |
| UNSPSC Code: 27112803 | |
| Country of Origin: UNITED STATES |
| MSC# | 07771942 |
| Mfr# | 07771942 |
| Big Book# | 449 |
