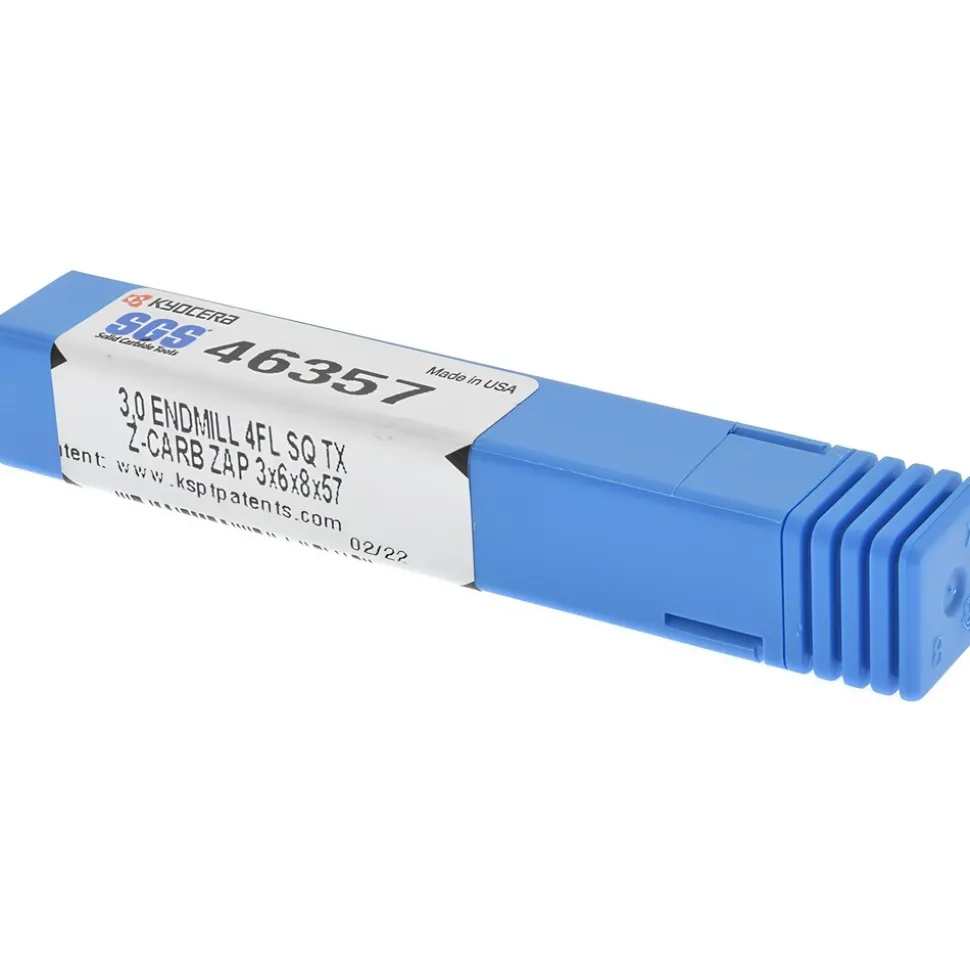

Square End Mill: 3.00 mm Dia, 8.00 mm LOC
19,99 $
Specifications
| Mill Diameter (Decimal Inch): 0.1181 | Mill Diameter (mm): 3.00 |
| Number Of Flutes: 4 | End Mill Material: Solid Carbide |
| Length of Cut (mm): 8.00 | Length of Cut (Decimal Inch): 0.3150 |
| Shank Diameter (Decimal Inch): 0.2362 | Shank Diameter (mm): 6.00 |
| Overall Length (mm): 57.00 | Single Or Double End: Single |
| Coating/Finish Family: Ti-NAMITE-X | Centercutting: Yes |
| Cutting Direction: Right Hand | Flute Direction: Right Hand |
| Extended Reach: No | Coolant Through: No |
| Helix Angle: 35-38 | Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code: P; S; K; M | Coating/Finish: Ti-NAMITE-X |
| Variable Helix: Yes | Variable Index: Yes |
| Chipbreaker: No | Flute Type: Spiral |
| Shank Type: Straight-Cylindrical | Material Grade: Micrograin |
| Length Type: Regular | Length Of Cut Range (Decimal Inch): 0.3000 – 0.5000 |
| Mill Diameter Tolerance: +0.000/-0.030 mm | Shank Diameter Tolerance: +0.000/-0.009 mm |
| Series: Z1M | System Of Measurement: Metric |
| UNSPSC Code: 27112803 | Country of Origin: UNITED STATES |
| Mill Diameter (Decimal Inch): 0.1181 | |
| Mill Diameter (mm): 3.00 | |
| Number Of Flutes: 4 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (mm): 8.00 | |
| Length of Cut (Decimal Inch): 0.3150 | |
| Shank Diameter (Decimal Inch): 0.2362 | |
| Shank Diameter (mm): 6.00 | |
| Overall Length (mm): 57.00 | |
| Single Or Double End: Single | |
| Coating/Finish Family: Ti-NAMITE-X | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 35-38 | |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel | |
| Primary Workpiece Material Code: P; S; K; M | |
| Coating/Finish: Ti-NAMITE-X | |
| Variable Helix: Yes | |
| Variable Index: Yes | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Shank Type: Straight-Cylindrical | |
| Material Grade: Micrograin | |
| Length Type: Regular | |
| Length Of Cut Range (Decimal Inch): 0.3000 – 0.5000 | |
| Mill Diameter Tolerance: +0.000/-0.030 mm | |
| Shank Diameter Tolerance: +0.000/-0.009 mm | |
| Series: Z1M | |
| System Of Measurement: Metric | |
| UNSPSC Code: 27112803 | |
| Country of Origin: UNITED STATES |
| MSC# | 86993722 |
| Mfr# | 46357 |
| Big Book# | 524 |
