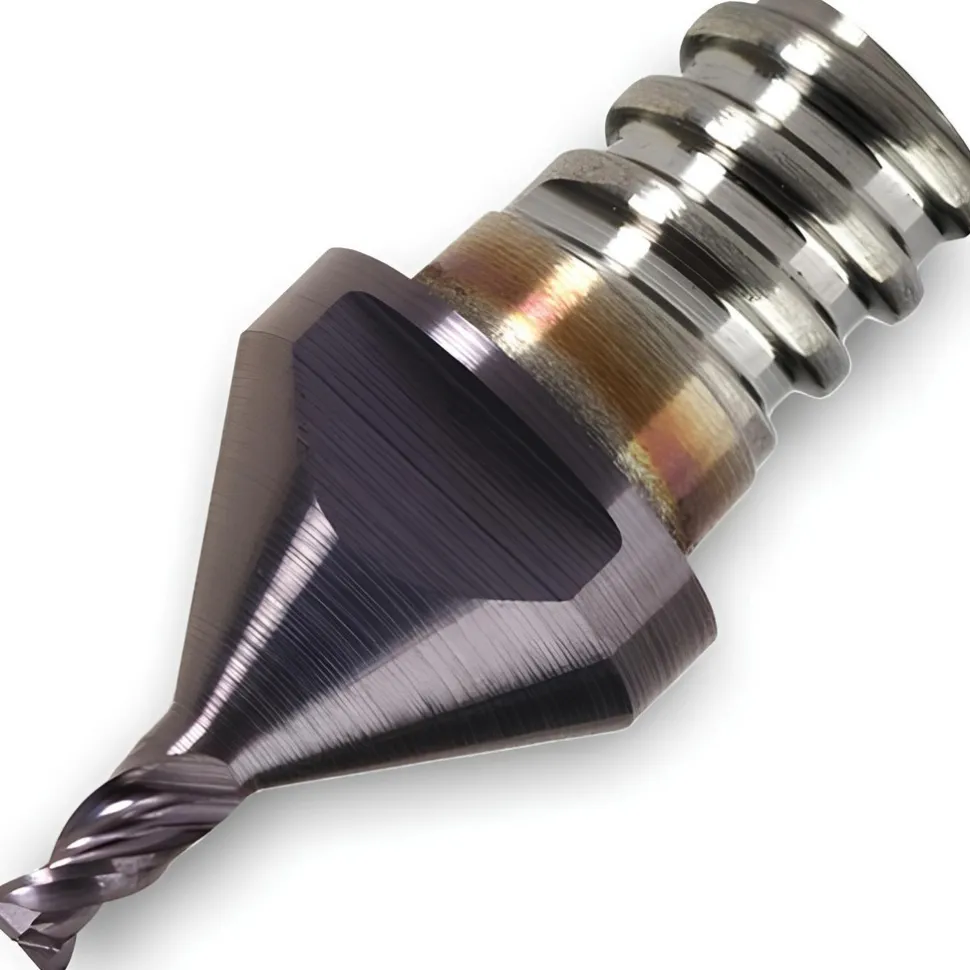

Square End Mill Heads: Mill Diameter (Decimal Inch): 0.2500; Mill Diameter (mm): 6.35; Length of Cut (mm): 5.08
53,89 $
Specifications
| Mill Diameter (Decimal Inch): 0.2500 | Mill Diameter (mm): 6.35 |
| Length of Cut (mm): 5.08 | Connection Type: T05 |
| Material: Carbide | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Center Cutting: Center Cutting |
| Flute Type: Helical | Helix Angle: 45 |
| Helix Style: High | Maximum Helix Angle: 45 |
| Minimum Helix Angle: 45 | Series/List: 47J |
| Variable Helix: No | Pitch: Normal |
| End Type: Square | Chipbreaker: No |
| Shank Type: Modular Connection | Extended Reach: ExtendedReach |
| UNSPSC Code: 27112803 | Manufacturers Grade: IN2005 |
| Material Application: Superalloy; Stainless Steel; Cast Iron; Titanium; Hard Steel; Steel | Length Of Cut (Decimal Inch – 4 Decimals): 0.2000 |
| Variable Index: No | Manufacturers Catalog Number: 47J-2520TQRD04 |
| Number Of Flutes: 4 | Finish Coating: TiAlN |
| Mill Diameter (Decimal Inch): 0.2500 | |
| Mill Diameter (mm): 6.35 | |
| Length of Cut (mm): 5.08 | |
| Connection Type: T05 | |
| Material: Carbide | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Center Cutting: Center Cutting | |
| Flute Type: Helical | |
| Helix Angle: 45 | |
| Helix Style: High | |
| Maximum Helix Angle: 45 | |
| Minimum Helix Angle: 45 | |
| Series/List: 47J | |
| Variable Helix: No | |
| Pitch: Normal | |
| End Type: Square | |
| Chipbreaker: No | |
| Shank Type: Modular Connection | |
| Extended Reach: ExtendedReach | |
| UNSPSC Code: 27112803 | |
| Manufacturers Grade: IN2005 | |
| Material Application: Superalloy; Stainless Steel; Cast Iron; Titanium; Hard Steel; Steel | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.2000 | |
| Variable Index: No | |
| Manufacturers Catalog Number: 47J-2520TQRD04 | |
| Number Of Flutes: 4 | |
| Finish Coating: TiAlN |
| MSC# | 94092426 |
| Mfr# | 5812584 |
