Sale!

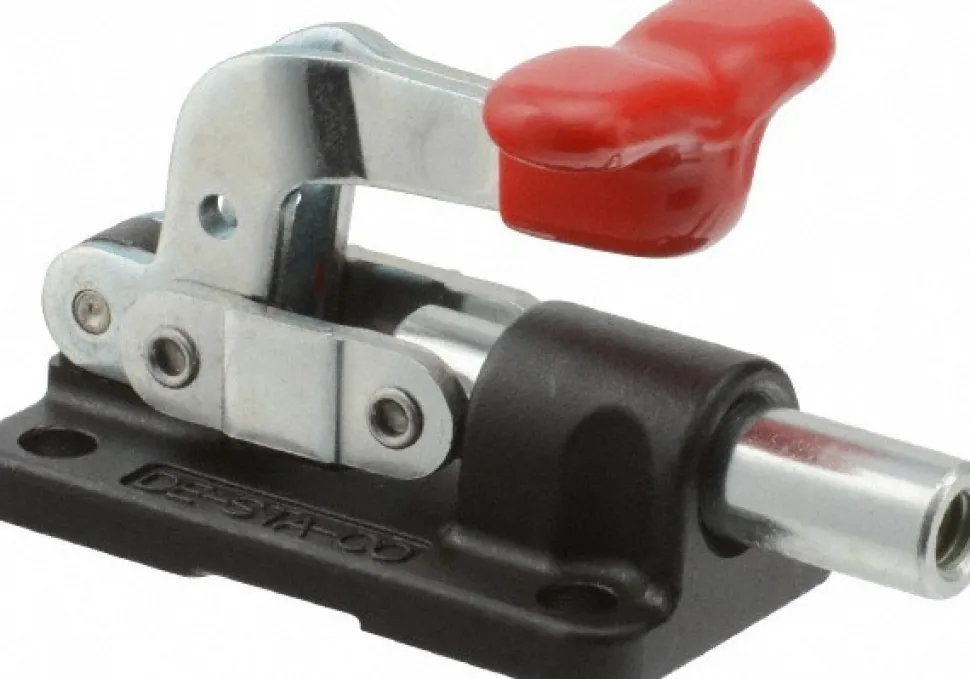

Standard Straight Line Action Clamp: 560 lb Load Capacity, 0.7″ Plunger Travel, Flanged Base, Carbon Steel
Original price was: 48,00 $.34,99 $Current price is: 34,99 $.
Specifications
| Load Capacity (Lb): 560.000 | Load Capacity (N): 2500.00 |
| Load Capacity: 2500 N; 560 lb | Plunger Travel (Decimal Inch): 0.7000 |
| Plunger Travel: 0.7 in; 17.78 mm | Plunger Travel (mm): 17.78 |
| Plunger Shape: Round | Plunger Thread Style: Internal |
| Plunger Thread Size: 1/4-20 | Plunger Centerline Height (mm): 12.70 |
| Plunger Centerline Height (Decimal Inch): 0.5000 | Plunger Centerline Height: 12.7 mm; 0.5 in |
| Plunger Diameter (mm): 9.91 | Plunger Diameter (Decimal Inch): 0.3900 |
| Base Style: Flanged | Handle Style: T-Handle |
| Clamp Material: Carbon Steel | Material: Carbon Steel |
| Overall Length (Decimal Inch): 2.9600 | Overall Length (mm): 75.18 |
| Overall Height (mm): 40.39 | Overall Height (Decimal Inch): 1.5900 |
| Base Length (Inch): 2-1/4 | Base Length (mm): 57.15 |
| Base Length (Decimal Inch): 2.2500 | Base Width (Inch): 1.2600 |
| Base Width (mm): 32.00 | Handle Color: Red |
| Length Distance Between Mount Holes (mm): 44.45 | Length Distance Between Mount Holes (Inch): 1.7500 |
| Width Distance Between Mount Holes (Decimal Inch): 0.8700 | Width Distance Between Mount Holes (mm): 22.10 |
| Mounting Hole Diameter (mm): 5.59 | Maximum Mechanical Advantage: 35:1 (Pushing); 35:1 (Pulling) |
| UNSPSC Code: 27112100 | Number Of Mounting Holes: 4.000 |
| Country of Origin: Thailand | |
| Load Capacity (Lb): 560.000 | |
| Load Capacity (N): 2500.00 | |
| Load Capacity: 2500 N; 560 lb | |
| Plunger Travel (Decimal Inch): 0.7000 | |
| Plunger Travel: 0.7 in; 17.78 mm | |
| Plunger Travel (mm): 17.78 | |
| Plunger Shape: Round | |
| Plunger Thread Style: Internal | |
| Plunger Thread Size: 1/4-20 | |
| Plunger Centerline Height (mm): 12.70 | |
| Plunger Centerline Height (Decimal Inch): 0.5000 | |
| Plunger Centerline Height: 12.7 mm; 0.5 in | |
| Plunger Diameter (mm): 9.91 | |
| Plunger Diameter (Decimal Inch): 0.3900 | |
| Base Style: Flanged | |
| Handle Style: T-Handle | |
| Clamp Material: Carbon Steel | |
| Material: Carbon Steel | |
| Overall Length (Decimal Inch): 2.9600 | |
| Overall Length (mm): 75.18 | |
| Overall Height (mm): 40.39 | |
| Overall Height (Decimal Inch): 1.5900 | |
| Base Length (Inch): 2-1/4 | |
| Base Length (mm): 57.15 | |
| Base Length (Decimal Inch): 2.2500 | |
| Base Width (Inch): 1.2600 | |
| Base Width (mm): 32.00 | |
| Handle Color: Red | |
| Length Distance Between Mount Holes (mm): 44.45 | |
| Length Distance Between Mount Holes (Inch): 1.7500 | |
| Width Distance Between Mount Holes (Decimal Inch): 0.8700 | |
| Width Distance Between Mount Holes (mm): 22.10 | |
| Mounting Hole Diameter (mm): 5.59 | |
| Maximum Mechanical Advantage: 35:1 (Pushing); 35:1 (Pulling) | |
| UNSPSC Code: 27112100 | |
| Number Of Mounting Holes: 4.000 | |
| Country of Origin: Thailand |
| MSC# | 93852820 |
| Mfr# | 6015 |
| Big Book# | 1318 |
