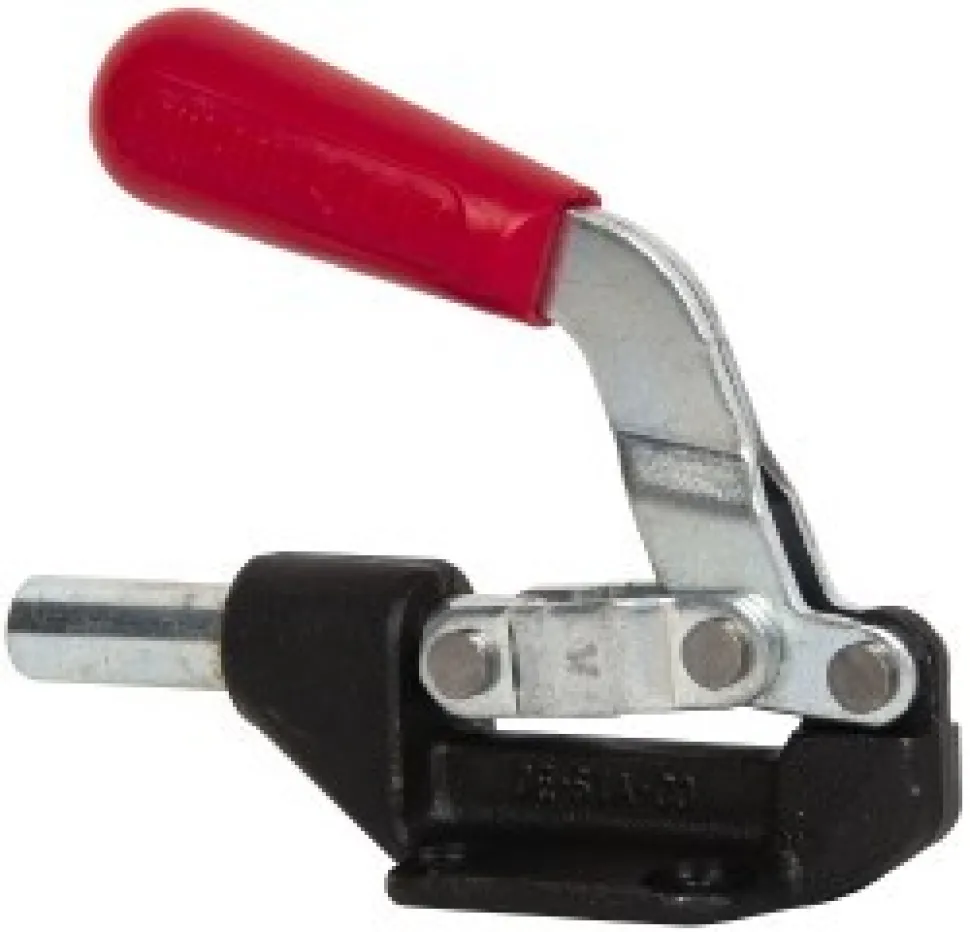

Standard Straight Line Action Clamp: 850 lb Load Capacity, 1.63″ Plunger Travel, Flanged Base, Carbon Steel
Original price was: 60,00 $.43,99 $Current price is: 43,99 $.
Specifications
| Load Capacity (Lb): 850.000 | Load Capacity (N): 3780.99 |
| Load Capacity: 850 lb; 3780.99 N | Plunger Travel (Decimal Inch): 1.6300 |
| Plunger Travel: 1.63 in; 41.4 mm | Plunger Travel (mm): 41.40 |
| Plunger Shape: Round | Plunger Thread Style: Internal |
| Plunger Thread Size: 3/8-16 | Plunger Centerline Height (mm): 31.75 |
| Plunger Centerline Height (Decimal Inch): 1.2500 | Plunger Centerline Height: 31.75 mm; 1.25 in |
| Plunger Diameter (mm): 15.75 | Plunger Diameter (Decimal Inch): 0.6200 |
| Base Style: Flanged | Handle Style: Straight |
| Clamp Material: Carbon Steel | Material: Carbon Steel |
| Overall Length (Decimal Inch): 6.0000 | Overall Length (mm): 152.40 |
| Overall Height (mm): 104.65 | Overall Height (Decimal Inch): 4.1200 |
| Base Length (Inch): 2-1/4 | Base Length (mm): 57.15 |
| Base Length (Decimal Inch): 2.2500 | Base Width (Inch): 2.2500 |
| Base Width (mm): 57.15 | Handle Color: Red |
| Length Distance Between Mount Holes (mm): 41.40 | Length Distance Between Mount Holes (Inch): 1.6300 |
| Width Distance Between Mount Holes (Decimal Inch): 1.6300 | Width Distance Between Mount Holes (mm): 41.40 |
| Mounting Hole Diameter (mm): 8.38 | Maximum Mechanical Advantage: 50:1 (Pulling); 44:1 (Pushing) |
| Industry Number: 608 | UNSPSC Code: 27112100 |
| Front Of Base To Tip Of Toggle Bar: 3.0000 | Number Of Mounting Holes: 4.000 |
| Country of Origin: VARIOUS | |
| Load Capacity (Lb): 850.000 | |
| Load Capacity (N): 3780.99 | |
| Load Capacity: 850 lb; 3780.99 N | |
| Plunger Travel (Decimal Inch): 1.6300 | |
| Plunger Travel: 1.63 in; 41.4 mm | |
| Plunger Travel (mm): 41.40 | |
| Plunger Shape: Round | |
| Plunger Thread Style: Internal | |
| Plunger Thread Size: 3/8-16 | |
| Plunger Centerline Height (mm): 31.75 | |
| Plunger Centerline Height (Decimal Inch): 1.2500 | |
| Plunger Centerline Height: 31.75 mm; 1.25 in | |
| Plunger Diameter (mm): 15.75 | |
| Plunger Diameter (Decimal Inch): 0.6200 | |
| Base Style: Flanged | |
| Handle Style: Straight | |
| Clamp Material: Carbon Steel | |
| Material: Carbon Steel | |
| Overall Length (Decimal Inch): 6.0000 | |
| Overall Length (mm): 152.40 | |
| Overall Height (mm): 104.65 | |
| Overall Height (Decimal Inch): 4.1200 | |
| Base Length (Inch): 2-1/4 | |
| Base Length (mm): 57.15 | |
| Base Length (Decimal Inch): 2.2500 | |
| Base Width (Inch): 2.2500 | |
| Base Width (mm): 57.15 | |
| Handle Color: Red | |
| Length Distance Between Mount Holes (mm): 41.40 | |
| Length Distance Between Mount Holes (Inch): 1.6300 | |
| Width Distance Between Mount Holes (Decimal Inch): 1.6300 | |
| Width Distance Between Mount Holes (mm): 41.40 | |
| Mounting Hole Diameter (mm): 8.38 | |
| Maximum Mechanical Advantage: 50:1 (Pulling); 44:1 (Pushing) | |
| Industry Number: 608 | |
| UNSPSC Code: 27112100 | |
| Front Of Base To Tip Of Toggle Bar: 3.0000 | |
| Number Of Mounting Holes: 4.000 | |
| Country of Origin: VARIOUS |
| MSC# | 06966469 |
| Mfr# | 608 |
| Big Book# | 1318 |
