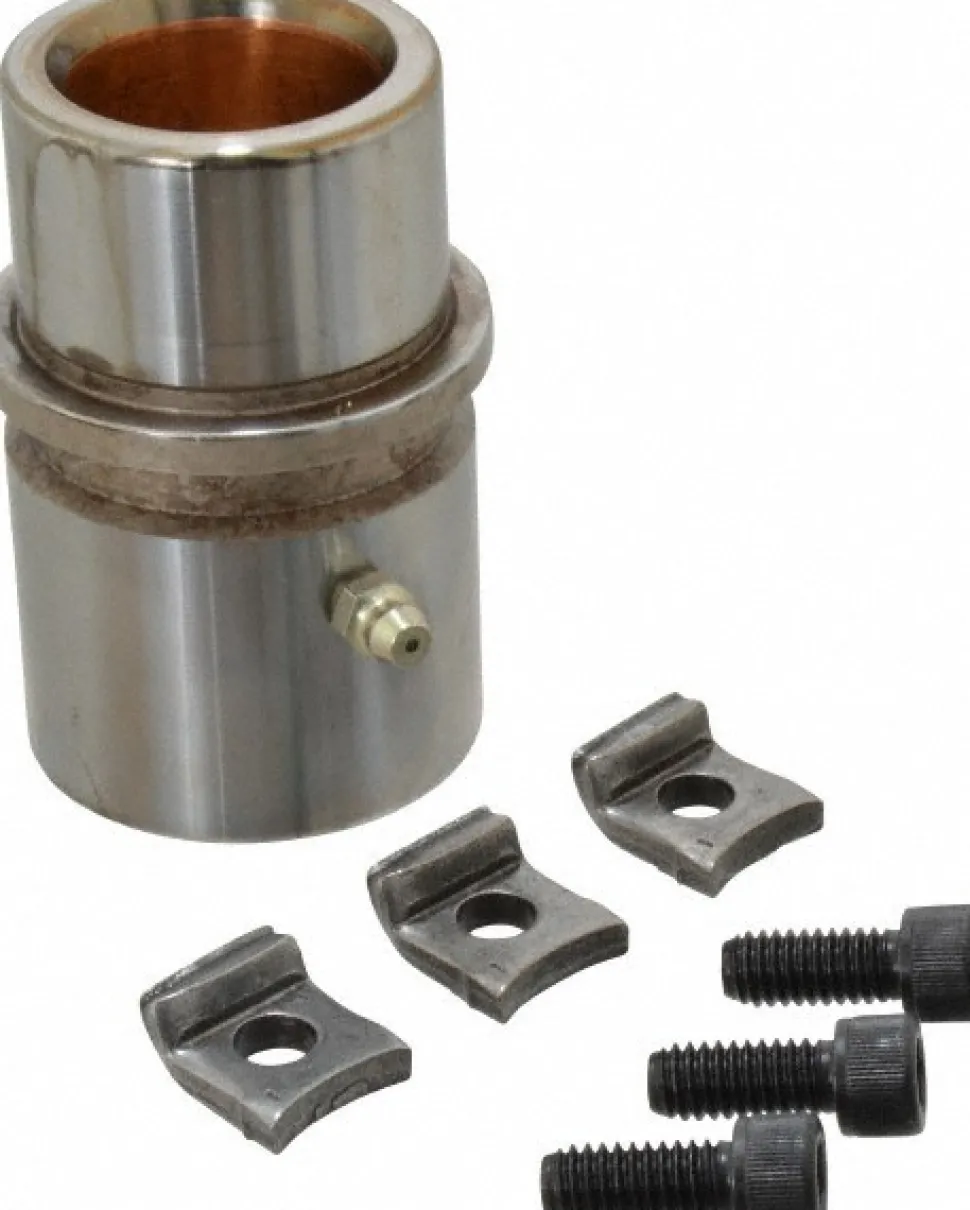

Steel Die & Mold Shoulder Bushing: 1-1/4″ ID

Original price was: 109,00 $.Current price is: 74,89 $.

Specifications

Material: Steel	Body Type: Shoulder
Inside Diameter (Inch): 1-1/4	Inside Diameter (Decimal Inch): 1.2500
Bottom Outside Diameter (Decimal Inch): 1.9400	Top Outside Diameter (Fractional Inch): 1-3/4
Top Outside Diameter (Decimal Inch): 1.7500	Attachment Method: Demountable
Lubrication Type: Non-Self Lubricating	Bushing Type: Friction
Collar Outside Diameter (Decimal Inch): 2.0950	Length Above Collar (Inch): 1-1/8
Length Under Collar (Fractional Inch): 2	Length Under Collar (Decimal Inch): 2.0000
Clamp Compatibility: 6-91-1	Finish: Bronze
C1: 2.095	F -In–: 2
UNSPSC Code: 23153000	Country of Origin: UNITED STATES
Material: Steel
Body Type: Shoulder
Inside Diameter (Inch): 1-1/4
Inside Diameter (Decimal Inch): 1.2500
Bottom Outside Diameter (Decimal Inch): 1.9400
Top Outside Diameter (Fractional Inch): 1-3/4
Top Outside Diameter (Decimal Inch): 1.7500
Attachment Method: Demountable
Lubrication Type: Non-Self Lubricating
Bushing Type: Friction
Collar Outside Diameter (Decimal Inch): 2.0950
Length Above Collar (Inch): 1-1/8
Length Under Collar (Fractional Inch): 2
Length Under Collar (Decimal Inch): 2.0000
Clamp Compatibility: 6-91-1
Finish: Bronze
C1: 2.095
F -In–: 2
UNSPSC Code: 23153000
Country of Origin: UNITED STATES
