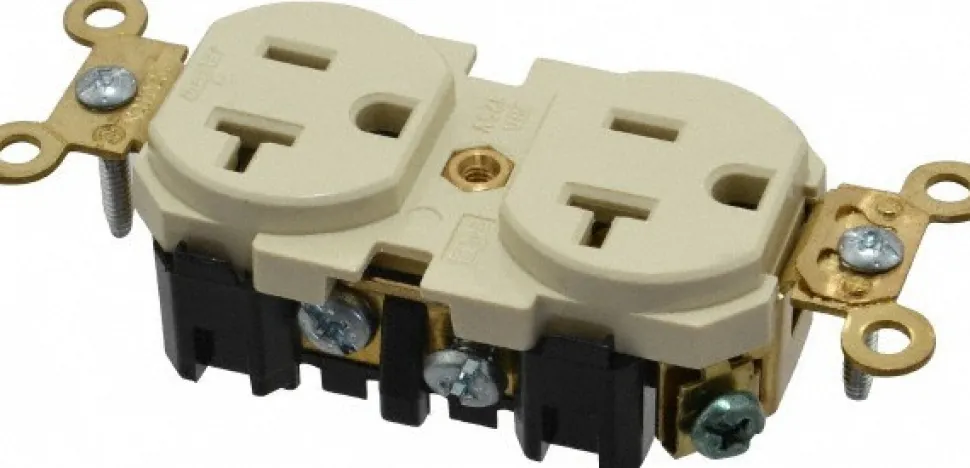

Straight Blade Duplex Receptacle: NEMA 5-20R, 20 Amps, Self-Grounding

14,99 $

Shop Straight Blade Duplex Receptacle: NEMA 5-20R, 20 Amps, Self-Grounding at MSC Direct top provider of high quality products

Color

Clear

Specifications

Receptacle Type: Duplex	Grade: Industrial
Color: Ivory	Grounding Style: Self-Grounding
Amperage: 20.0000	Voltage: 125V AC
Wiring Method: Back & Side	Flanged: No
Number Of Phases: 1	Number Of Wires: 3.000
Number Of Poles: 2	Mount Type: Flush
Body Material: Thermoplastic	Resistance Features: Impact-Resistant; Tamper-Resistant
Standards: UL Federal Specification W-C-596 File E13399; UL Listed; UL 498 File E13399; ANSI C-73; CSA Certified; NEMA WD-6; CSA C22.2 No. 42 File 152105; NOM 057	Nema Configuration: 5-20R
UNSPSC Code: 39121406	Country of Origin: Mexico
Receptacle Type: Duplex
Grade: Industrial
Color: Ivory
Grounding Style: Self-Grounding
Amperage: 20.0000
Voltage: 125V AC
Wiring Method: Back & Side
Flanged: No
Number Of Phases: 1
Number Of Wires: 3.000
Number Of Poles: 2
Mount Type: Flush
Body Material: Thermoplastic
Resistance Features: Impact-Resistant; Tamper-Resistant
Standards: UL Federal Specification W-C-596 File E13399; UL Listed; UL 498 File E13399; ANSI C-73; CSA Certified; NEMA WD-6; CSA C22.2 No. 42 File 152105; NOM 057
Nema Configuration: 5-20R
UNSPSC Code: 39121406
Country of Origin: Mexico
