Sale!

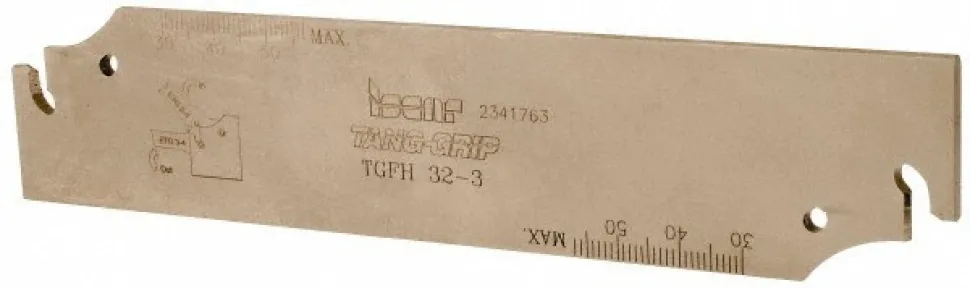

TGFH Double End Neutral Indexable Cutoff Blade, Holder not included
Original price was: 160,00 $.104,89 $Current price is: 104,89 $.
Specifications
| End Type: Double | Cutting Direction: Neutral |
| Hand: Right Hand | Blade Height (mm): 32.00 |
| Blade Height (Decimal Inch): 1.2600 | Blade Width (Decimal Inch): 0.1000 |
| Blade Width (mm): 2.50 | Blade Overall Length (Decimal Inch): 5.9060 |
| Blade Overall Length (mm): 150.00 | Blade Style: TGFH |
| Compatible Insert Style: TAG | Compatible Insert Size Code: 3 |
| Insert Holding Method: Self Grip | Maximum Workpiece Diameter (Decimal Inch): 3.9400 |
| Series: Sumo Grip; Tang-Grip | Insert Style: TAG 3.. |
| Cutting Tool Application: Grooving; Turning; Parting | Standards: ISO 13399 |
| Cutting Height (mm): 24.80 | Cutting Height (Decimal Inch): 0.9764 |
| Minimum Insert Width (Decimal Inch): 0.1102 | Minimum Insert Width (mm): 2.80 |
| Maximum Insert Width (mm): 3.50 | Maximum Insert Width (Decimal Inch): 0.1378 |
| Manufacturers Catalog Number: TGFH 32-3 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| End Type: Double | |
| Cutting Direction: Neutral | |
| Hand: Right Hand | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2600 | |
| Blade Width (Decimal Inch): 0.1000 | |
| Blade Width (mm): 2.50 | |
| Blade Overall Length (Decimal Inch): 5.9060 | |
| Blade Overall Length (mm): 150.00 | |
| Blade Style: TGFH | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 3 | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 3.9400 | |
| Series: Sumo Grip; Tang-Grip | |
| Insert Style: TAG 3.. | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 24.80 | |
| Cutting Height (Decimal Inch): 0.9764 | |
| Minimum Insert Width (Decimal Inch): 0.1102 | |
| Minimum Insert Width (mm): 2.80 | |
| Maximum Insert Width (mm): 3.50 | |
| Maximum Insert Width (Decimal Inch): 0.1378 | |
| Manufacturers Catalog Number: TGFH 32-3 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 59548602 |
| Mfr# | 2301743 |
| Big Book# | 897 |
