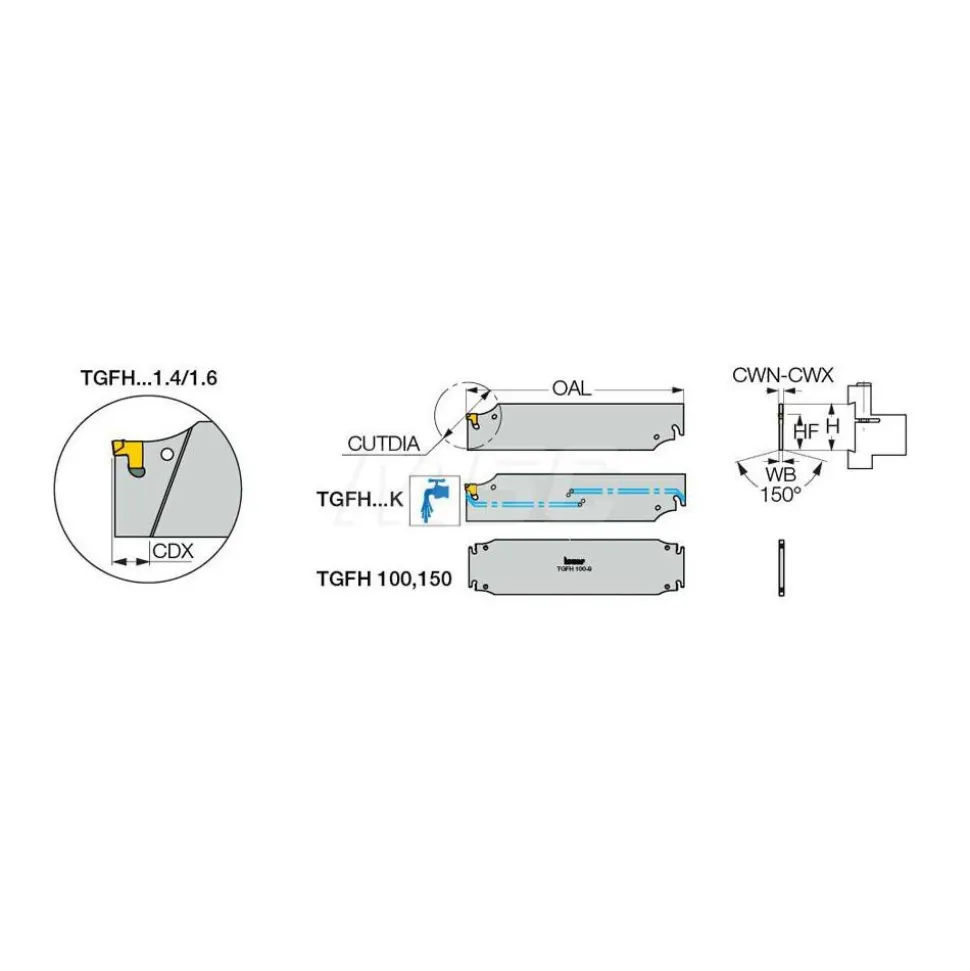

TGFH Double End Neutral Indexable Cutoff Blade
Original price was: 149,00 $.104,99 $Current price is: 104,99 $.
Specifications
| End Type: Double | Cutting Direction: Neutral |
| Blade Height (mm): 26.00 | Blade Height (Decimal Inch): 1.0236 |
| Blade Width (Decimal Inch): 0.1000 | Blade Width (mm): 2.50 |
| Blade Overall Length (Decimal Inch): 4.3310 | Blade Overall Length (mm): 110.00 |
| Blade Style: TGFH | Compatible Insert Style: TAG |
| Compatible Insert Size Code: 3 | Insert Holding Method: Self Grip |
| Maximum Workpiece Diameter (Decimal Inch): 2.9500 | Series: Sumo Grip; Tang-Grip |
| Insert Style: TAG 3.. | Cutting Tool Application: Grooving; Turning; Parting |
| Standards: ISO 13399 | Cutting Height (mm): 21.40 |
| Cutting Height (Decimal Inch): 0.8425 | Minimum Insert Width (Decimal Inch): 0.1102 |
| Minimum Insert Width (mm): 2.80 | Maximum Insert Width (mm): 3.50 |
| Maximum Insert Width (Decimal Inch): 0.1378 | Manufacturers Catalog Number: TGFH 26-3 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| End Type: Double | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 26.00 | |
| Blade Height (Decimal Inch): 1.0236 | |
| Blade Width (Decimal Inch): 0.1000 | |
| Blade Width (mm): 2.50 | |
| Blade Overall Length (Decimal Inch): 4.3310 | |
| Blade Overall Length (mm): 110.00 | |
| Blade Style: TGFH | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 3 | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 2.9500 | |
| Series: Sumo Grip; Tang-Grip | |
| Insert Style: TAG 3.. | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 21.40 | |
| Cutting Height (Decimal Inch): 0.8425 | |
| Minimum Insert Width (Decimal Inch): 0.1102 | |
| Minimum Insert Width (mm): 2.80 | |
| Maximum Insert Width (mm): 3.50 | |
| Maximum Insert Width (Decimal Inch): 0.1378 | |
| Manufacturers Catalog Number: TGFH 26-3 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 59548594 |
| Mfr# | 2301764 |
| Big Book# | 897 |
