Sale!

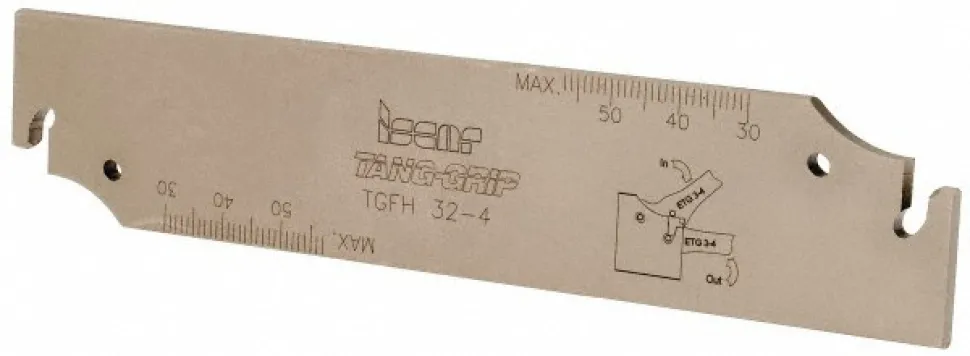

TGFH Single End Neutral Indexable Cutoff Blade
Original price was: 160,00 $.105,89 $Current price is: 105,89 $.
Specifications
| End Type: Single | Cutting Direction: Neutral |
| Blade Height (mm): 32.00 | Blade Height (Decimal Inch): 1.2598 |
| Blade Width (Decimal Inch): 0.1300 | Blade Width (mm): 3.40 |
| Blade Overall Length (Decimal Inch): 5.9055 | Blade Overall Length (mm): 150.00 |
| Blade Style: TGFH | Compatible Insert Style: TAG |
| Compatible Insert Size Code: 4 | Insert Holding Method: Self Grip |
| Maximum Workpiece Diameter (Decimal Inch): 3.9370 | Series: Tang-Grip; Sumo-Grip |
| Tool Block Style: UBHCR/L; HSK A-WH-TBK-R/L; SGTBF; SGTBK; SGTBU/SGTBN | Insert Style: TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C |
| Cutting Tool Application: Grooving; Turning; Parting | Insert Width (mm): 3.70 |
| Standards: ISO 13399 | Cutting Height (mm): 24.80 |
| Cutting Height (Decimal Inch): 0.9764 | Minimum Insert Width (Decimal Inch): 0.1457 |
| Minimum Insert Width (mm): 3.70 | Maximum Insert Width (mm): 4.50 |
| Maximum Insert Width (Decimal Inch): 0.1772 | Complete Insert Compatibility: TAG N4J; TAG N4JT; TAG L4J-4D; TAG L4C-4D; TAG N4A; TAG R4J-4D; TAG N4UT; TAG R4C-4D |
| Complete Tool Block/Toolholder Style Compatibility: SGTBF 25.4-A; SGTBU 19-6G; SGTBU 25.4-6G; SGTBU 38.1-6G; HSK A63WH-TBK-32R; HSK A100WH-TBK-32L; HSK A63WH-TBK-32L; SGTBU 25.4C-6; SGTBF 31.7-A; SGTBK 32-9; SGTBU 31.8-6G; UBHCL 25.4-32; UBHCR 25.4-32 | Insert Width: 0.1457 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| End Type: Single | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2598 | |
| Blade Width (Decimal Inch): 0.1300 | |
| Blade Width (mm): 3.40 | |
| Blade Overall Length (Decimal Inch): 5.9055 | |
| Blade Overall Length (mm): 150.00 | |
| Blade Style: TGFH | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 4 | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 3.9370 | |
| Series: Tang-Grip; Sumo-Grip | |
| Tool Block Style: UBHCR/L; HSK A-WH-TBK-R/L; SGTBF; SGTBK; SGTBU/SGTBN | |
| Insert Style: TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 3.70 | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 24.80 | |
| Cutting Height (Decimal Inch): 0.9764 | |
| Minimum Insert Width (Decimal Inch): 0.1457 | |
| Minimum Insert Width (mm): 3.70 | |
| Maximum Insert Width (mm): 4.50 | |
| Maximum Insert Width (Decimal Inch): 0.1772 | |
| Complete Insert Compatibility: TAG N4J; TAG N4JT; TAG L4J-4D; TAG L4C-4D; TAG N4A; TAG R4J-4D; TAG N4UT; TAG R4C-4D | |
| Complete Tool Block/Toolholder Style Compatibility: SGTBF 25.4-A; SGTBU 19-6G; SGTBU 25.4-6G; SGTBU 38.1-6G; HSK A63WH-TBK-32R; HSK A100WH-TBK-32L; HSK A63WH-TBK-32L; SGTBU 25.4C-6; SGTBF 31.7-A; SGTBK 32-9; SGTBU 31.8-6G; UBHCL 25.4-32; UBHCR 25.4-32 | |
| Insert Width: 0.1457 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 08703316 |
| Mfr# | 2301763 |
