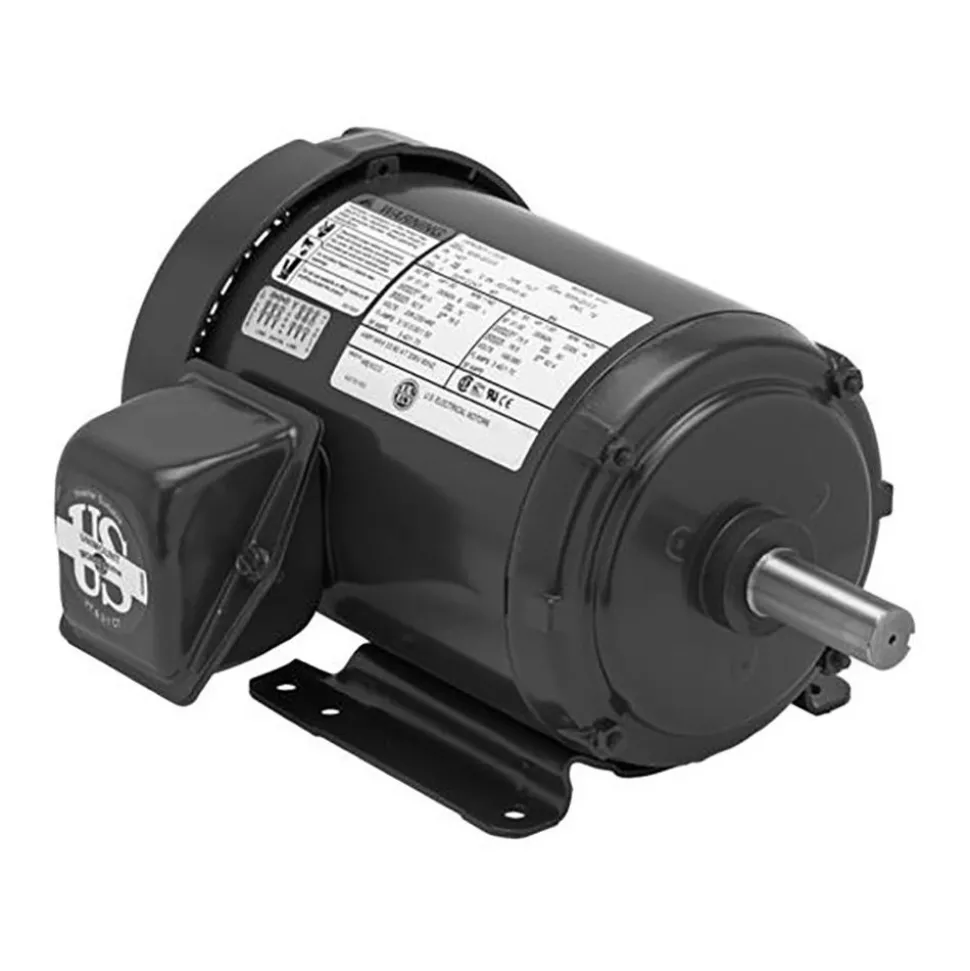

Three Phase Energy Efficient AC Motor: TEFC Enclosure

124,99 $

Specifications

Motor Type: Three Phase Energy Efficient	Phase: Three
Enclosure Style: TEFC	Horsepower: 1/2
Name Plate RPMs: 1725	Voltage: 230V; 460V
Frequency (Hz – 0 Decimals): 60	Frame Size: 56
Mount Style: Rigid	Mount Type: Rigid
Bearing Type: Ball	Number Of Phases: 3
Full Load Amperage: 1.6/0.8	Insulation Class: B
Frame Material: Steel	Shaft Diameter x Length: 5/8 x 1-7/8 in
Full Load Efficiency Rating: 81.50	Service Factor Rating: 1.00
Motor Rotation: Reversible	Applications: General Purpose
Overall Length (Decimal Inch): 11.3700	Dayton Part Number: 3N695
Ambient Operating Temperature (F): 40	Thermal Protection: None
Number Of Speeds: 1	Type: TEFC
UNSPSC Code: 26111600	Product Service Code: 6105
Motor Type: Three Phase Energy Efficient
Phase: Three
Enclosure Style: TEFC
Horsepower: 1/2
Name Plate RPMs: 1725
Voltage: 230V; 460V
Frequency (Hz – 0 Decimals): 60
Frame Size: 56
Mount Style: Rigid
Mount Type: Rigid
Bearing Type: Ball
Number Of Phases: 3
Full Load Amperage: 1.6/0.8
Insulation Class: B
Frame Material: Steel
Shaft Diameter x Length: 5/8 x 1-7/8 in
Full Load Efficiency Rating: 81.50
Service Factor Rating: 1.00
Motor Rotation: Reversible
Applications: General Purpose
Overall Length (Decimal Inch): 11.3700
Dayton Part Number: 3N695
Ambient Operating Temperature (F): 40
Thermal Protection: None
Number Of Speeds: 1
Type: TEFC
UNSPSC Code: 26111600
Product Service Code: 6105
