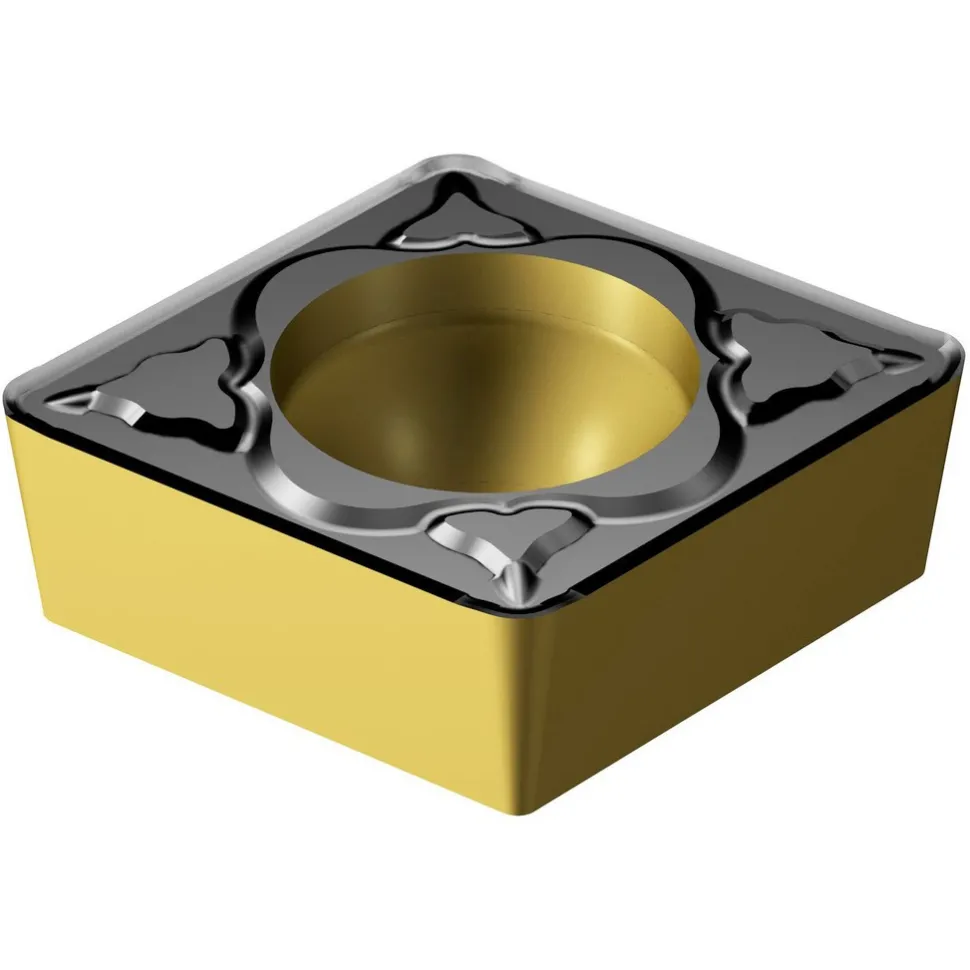

Turning Insert: CCMT32.52-PM 4425, Carbide

Turning Insert: CCMT32.52-PM 4425, Carbide

14,89 $

SKU: SKU33zaw35siI Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

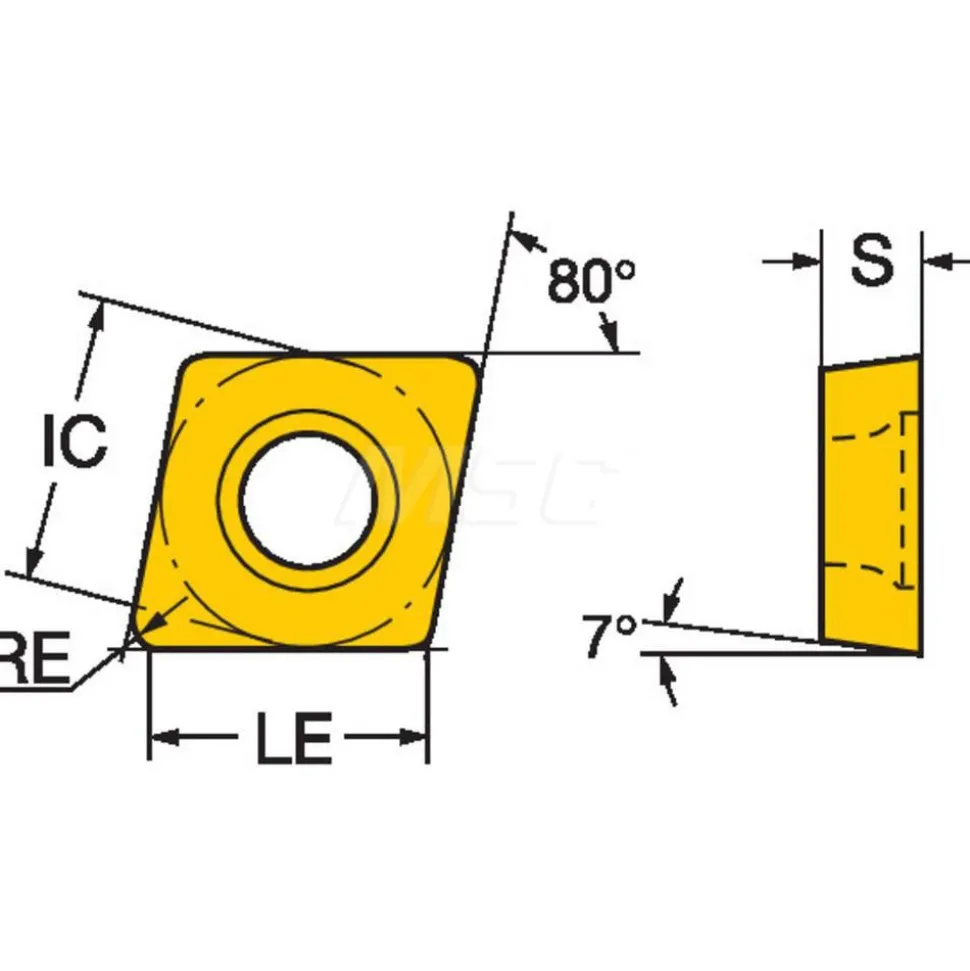

Insert Style: CCMT	ANSI Size Code: 32.52
ISO Size Code: 09T308	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (mm): 9.53	Corner Radius (mm): 0.79
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: 4425	Coating/Finish: TiCN; TiN; Al2O3
Relief Angle: 7.000	Wiper Edge: No
Insert Thickness (Decimal Inch): 0.1563	Insert Thickness: 3.97
Insert Hand: Neutral	Series: CoroTurn 107

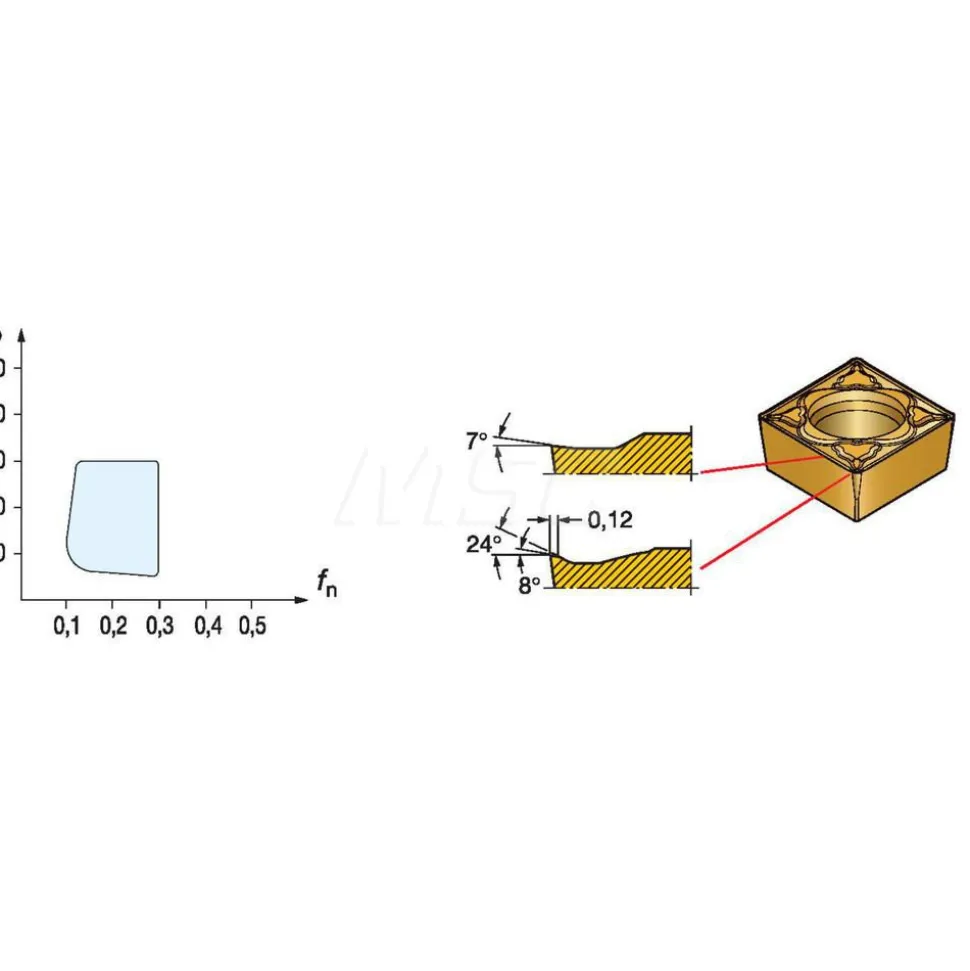

Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732	ANSI Insert Code: CCMT32.52
ISO Insert Code: CCMT09T308	Insert Holding Method: Screw; Clamp
Clearance Code: C	Tolerance Code: M
Coating Process: CVD	Primary Workpiece Material: Steel
Primary Workpiece Material Code: P	Secondary Workpiece Material: Cast Iron
Secondary Workpiece Material Code: K	Iso Code: CCMT 09 T3 08-PM 4425
Manufacturers Catalog Number: CCMT 3(2.5)2-PM 4425	Chip Breaker: PM
UNSPSC Code: 23242105	Country of Origin: Japan
Insert Style: CCMT
ANSI Size Code: 32.52
ISO Size Code: 09T308
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (mm): 9.53
Corner Radius (mm): 0.79
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: 4425
Coating/Finish: TiCN; TiN; Al2O3
Relief Angle: 7.000
Wiper Edge: No
Insert Thickness (Decimal Inch): 0.1563
Insert Thickness: 3.97
Insert Hand: Neutral
Series: CoroTurn 107
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732
ANSI Insert Code: CCMT32.52
ISO Insert Code: CCMT09T308
Insert Holding Method: Screw; Clamp
Clearance Code: C
Tolerance Code: M
Coating Process: CVD
Primary Workpiece Material: Steel
Primary Workpiece Material Code: P
Secondary Workpiece Material: Cast Iron
Secondary Workpiece Material Code: K
Iso Code: CCMT 09 T3 08-PM 4425
Manufacturers Catalog Number: CCMT 3(2.5)2-PM 4425
Chip Breaker: PM
UNSPSC Code: 23242105
Country of Origin: Japan
