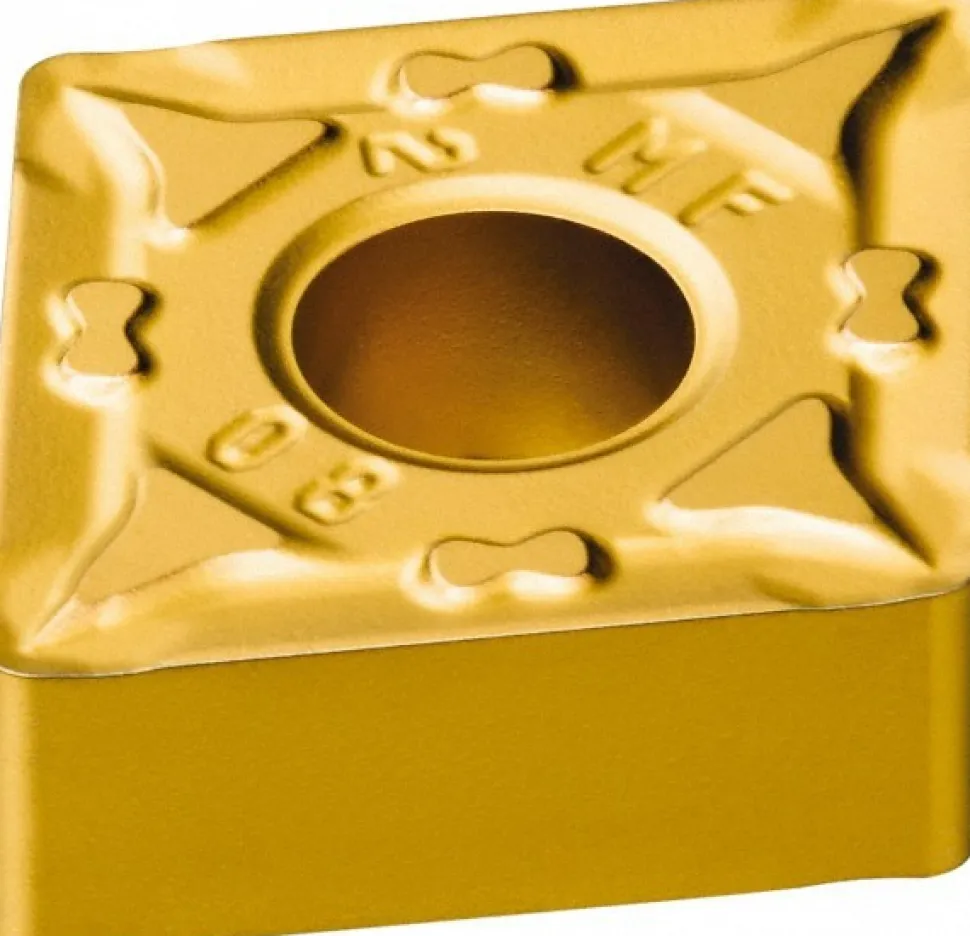

Turning Insert: CNMG431-MF 2025, Carbide
Original price was: 22,00 $.16,89 $Current price is: 16,89 $.
Specifications

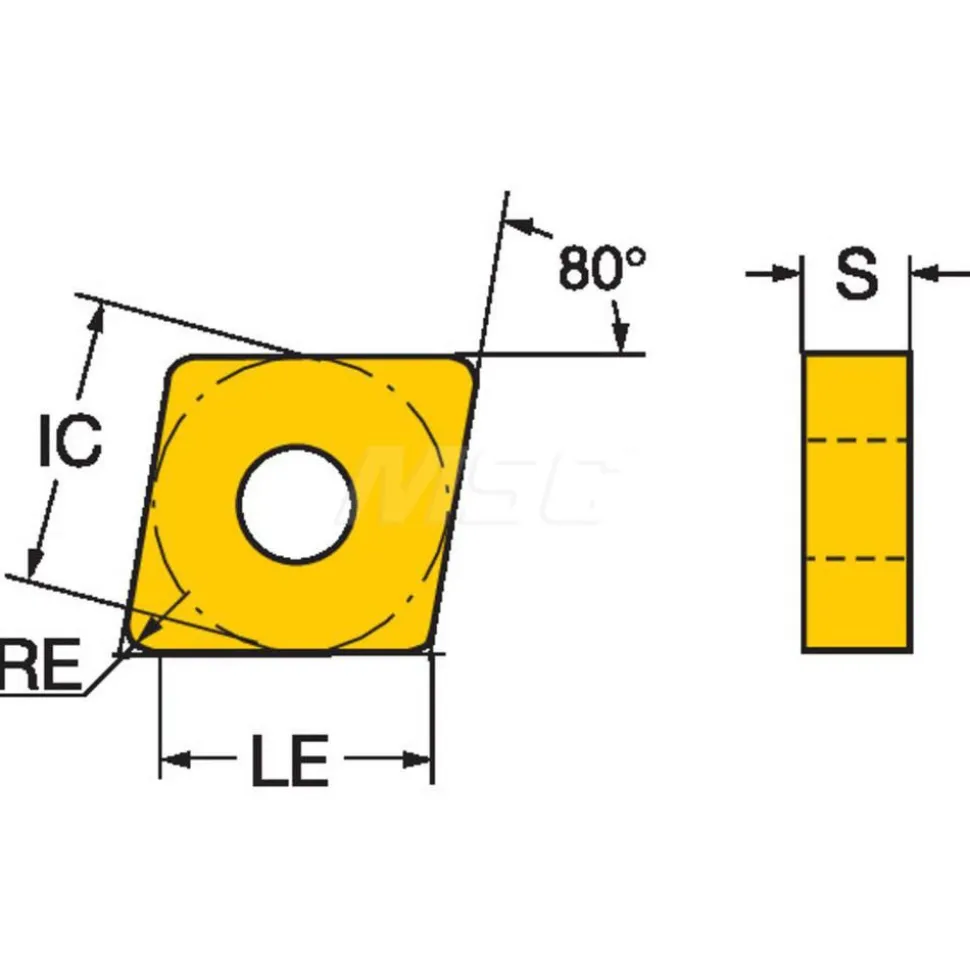

| Insert Style: CNMG | ANSI Size Code: 431 |
| ISO Size Code: 120404 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (Inch): 1/64 | Corner Radius (mm): 0.40 |
| Corner Radius (Decimal Inch): 0.0156 | Insert Material: Carbide |
| Manufacturer Grade: 2025 | Coating/Finish: TiCN; TiN; AI2O3 |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1875 |
| Insert Thickness: 4.76 | Insert Hand: Neutral |
| Series: T-Max P | Chip Breaker Operation: Finishing |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to High Toughness | Side Clearance: Negative |
| Number Of Cutting Edges: 4 | Hole Diameter (Decimal Inch): 0.2030 |
| Hole Diameter (mm): 5.16 | ANSI Insert Code: CNMG431 |
| ISO Insert Code: CNMG120404 | Insert Holding Method: Pin; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: CVD | Insert Length (Decimal Inch): 0.4920 |
| Insert Length (mm): 12.50 | Primary Workpiece Material: Stainless Steel |
| Primary Workpiece Material Code: M | Iso Code: CNMG 12 04 04-MF 2025 |
| Chip Breaker: MF | UNSPSC Code: 23242105 |
| Country of Origin: VARIOUS | |
| Insert Style: CNMG | |
| ANSI Size Code: 431 | |
| ISO Size Code: 120404 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (mm): 0.40 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 2025 | |
| Coating/Finish: TiCN; TiN; AI2O3 | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Thickness: 4.76 | |
| Insert Hand: Neutral | |
| Series: T-Max P | |
| Chip Breaker Operation: Finishing | |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to High Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Hole Diameter (mm): 5.16 | |
| ANSI Insert Code: CNMG431 | |
| ISO Insert Code: CNMG120404 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Insert Length (Decimal Inch): 0.4920 | |
| Insert Length (mm): 12.50 | |
| Primary Workpiece Material: Stainless Steel | |
| Primary Workpiece Material Code: M | |
| Iso Code: CNMG 12 04 04-MF 2025 | |
| Chip Breaker: MF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: VARIOUS |
| MSC# | 31908650 |
| Mfr# | 5724366 |
