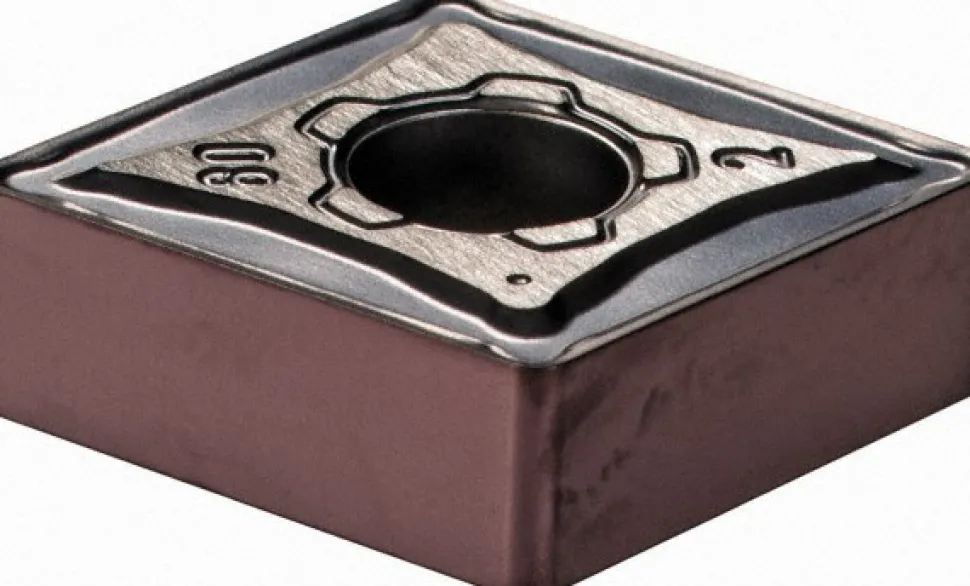

Turning Insert: CNMG432-M3M IC806, Carbide
Original price was: 21,00 $.14,89 $Current price is: 14,89 $.
Specifications

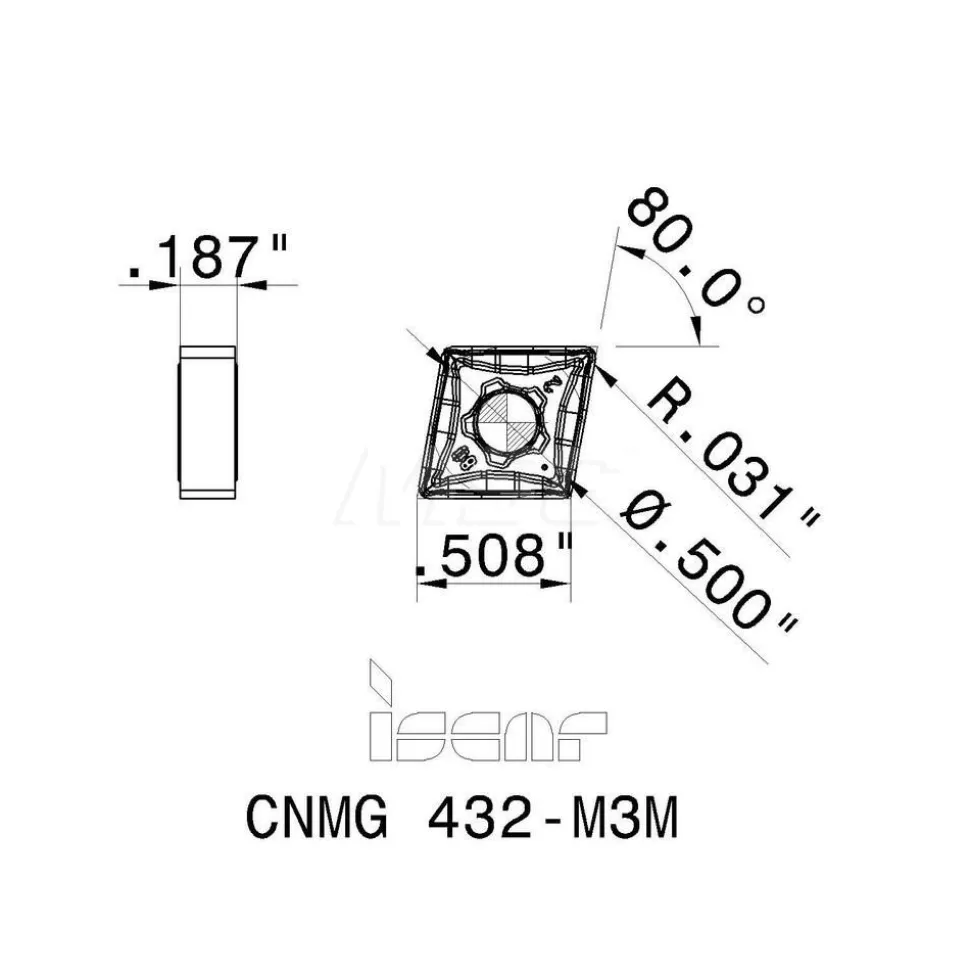

| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (Decimal Inch): 0.0313 | Insert Material: Carbide |
| Manufacturer Grade: IC806 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Series: Isoturn |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Maximum Depth of Cut (mm): 5.00 |
| Maximum Depth of Cut (Decimal Inch): 0.1970 | ANSI Insert Code: CNMG432 |
| ISO Insert Code: CNMG120408 | Insert Holding Method: Pin; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.5080 | Insert Length (mm): 12.90 |
| Primary Workpiece Material: Superalloy; Titanium | Primary Workpiece Material Code: S |
| Iso Code: CNMG 432-M3M | Standards: ISO 13399 |
| Material Grade: Submicron | Proprietary Coating Designation: SumoTec |
| Chip Breaker: M3M | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Facing |
| UNSPSC Code: 23242105 | Country of Origin: Israel |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC806 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Maximum Depth of Cut (mm): 5.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.1970 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.5080 | |
| Insert Length (mm): 12.90 | |
| Primary Workpiece Material: Superalloy; Titanium | |
| Primary Workpiece Material Code: S | |
| Iso Code: CNMG 432-M3M | |
| Standards: ISO 13399 | |
| Material Grade: Submicron | |
| Proprietary Coating Designation: SumoTec | |
| Chip Breaker: M3M | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 30727754 |
| Mfr# | 5566736 |
