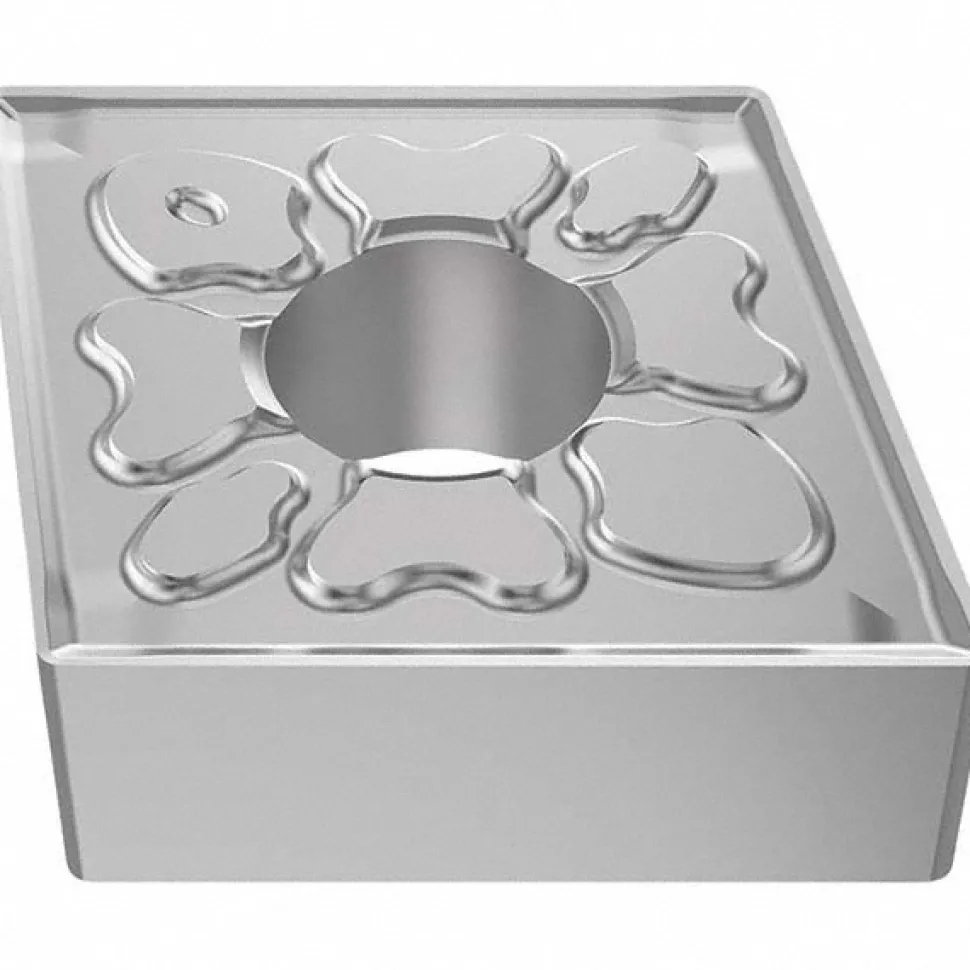

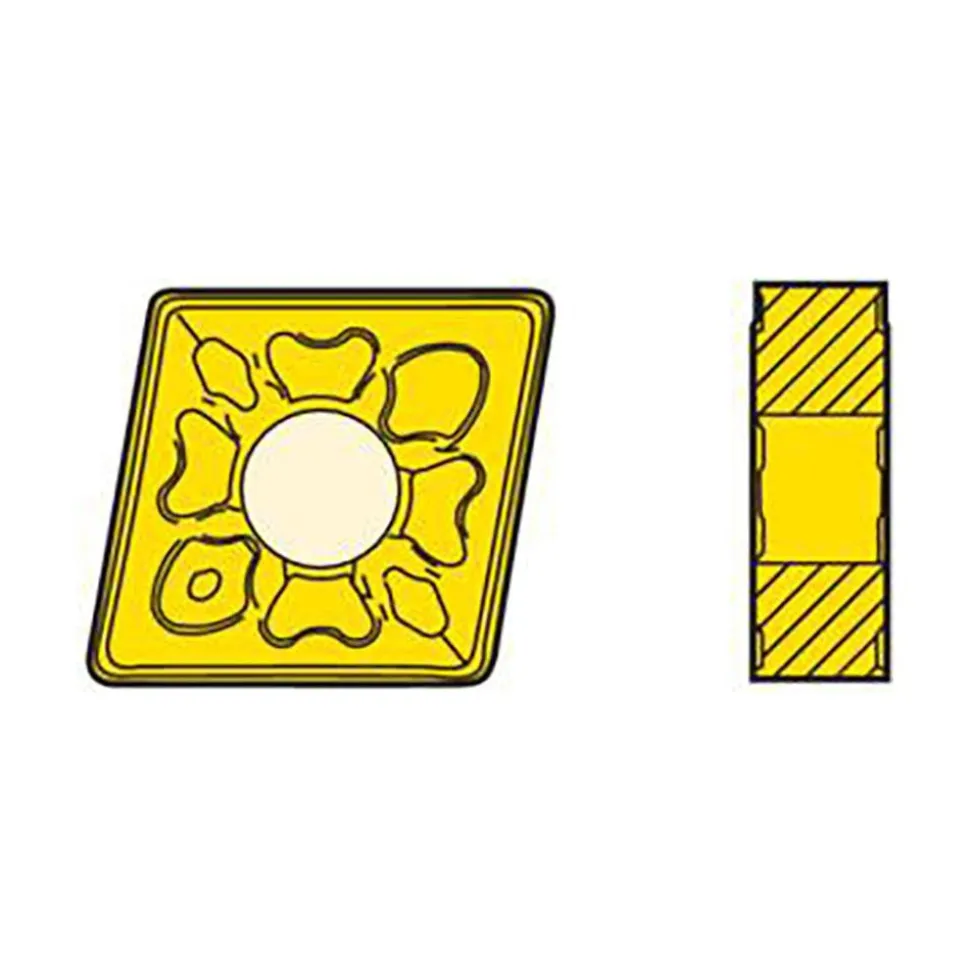

Turning Insert: CNMG432-MF4 TM2501, Carbide

Turning Insert: CNMG432-MF4 TM2501, Carbide

18,99 $

SKU: SKUIWxPv04FUi Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Seco Brand: Seco

Description
Reviews (0)

Specifications

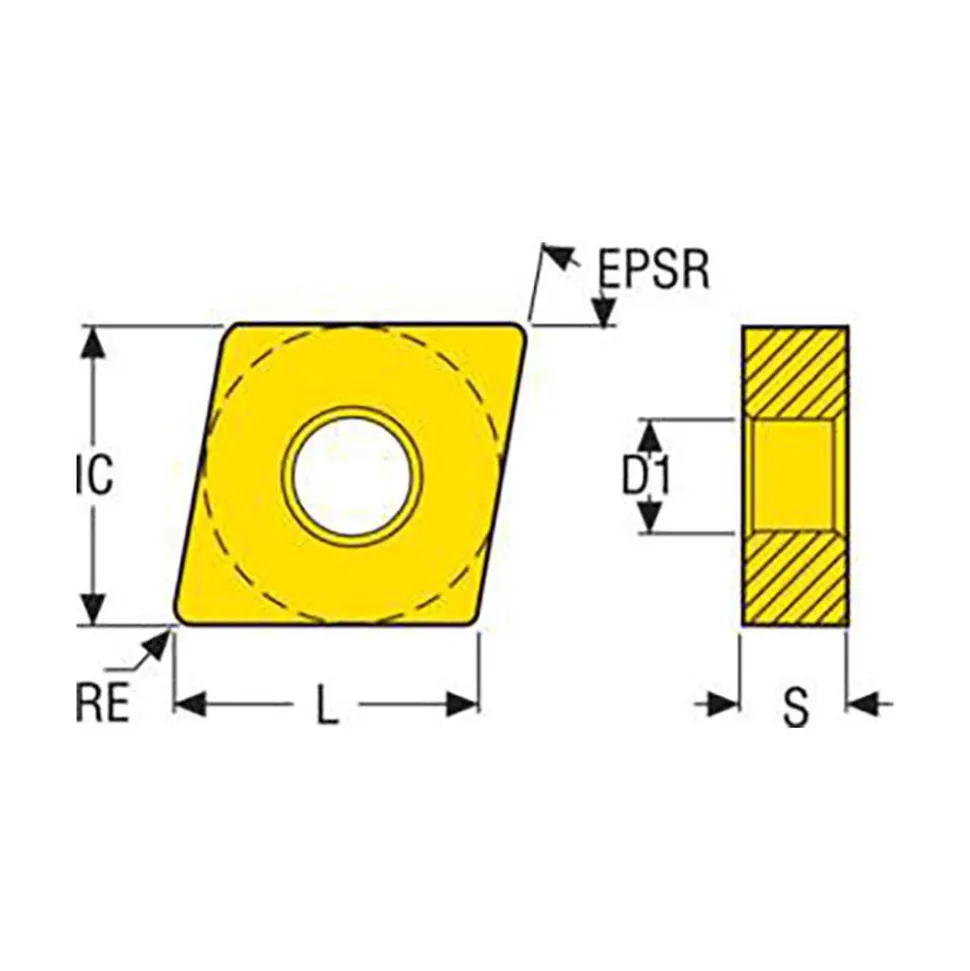

Insert Style: CNMG	ANSI Size Code: 432
ISO Size Code: 120408	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315	Insert Material: Carbide
Manufacturer Grade: TM2501	Coating/Finish: TiCN; Al2O3; Cr
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1874
Insert Hand: Neutral	Series: CNMG-MF4
Chip Breaker Operation: Medium Machining; Finishing	Grade Characteristics: Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – High Toughness
Side Clearance: Negative	Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2028	Maximum Depth of Cut (Decimal Inch): 0.4756
ANSI Insert Code: CNMG432	ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp; Lever Lock	Width (Inch): 1/2
Clearance Code: N	Tolerance Code: M
Coating Process: CVD	Rake: Negative
Insert Length (Decimal Inch): 0.5079	Primary Workpiece Material: Stainless Steel
Primary Workpiece Material Code: P; M	Secondary Workpiece Material: Steel
Secondary Workpiece Material Code: P	Iso Code: CNMG120408-MF4
Standards: ISO; ANSI	Manufacturers Catalog Number: 03273904
Material Grade: M25; M30; M35	Proprietary Coating Designation: Duratomic
Lead Angle: 80.000	Coating Classification: Duratomic
Chip Breaker: MF4	Rake Angle: 30
Cutting Edge Style: Honed; Chamfered	Industry Standard Number: CNMG432-MF4
Width (Decimal Inch – 4 Decimals): 0.5000	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105	Country of Origin: Sweden
Insert Style: CNMG
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: TM2501
Coating/Finish: TiCN; Al2O3; Cr
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874
Insert Hand: Neutral
Series: CNMG-MF4
Chip Breaker Operation: Medium Machining; Finishing
Grade Characteristics: Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – High Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2028
Maximum Depth of Cut (Decimal Inch): 0.4756
ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp; Lever Lock
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Rake: Negative
Insert Length (Decimal Inch): 0.5079
Primary Workpiece Material: Stainless Steel
Primary Workpiece Material Code: P; M
Secondary Workpiece Material: Steel
Secondary Workpiece Material Code: P
Iso Code: CNMG120408-MF4
Standards: ISO; ANSI
Manufacturers Catalog Number: 03273904
Material Grade: M25; M30; M35
Proprietary Coating Designation: Duratomic
Lead Angle: 80.000
Coating Classification: Duratomic
Chip Breaker: MF4
Rake Angle: 30
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: CNMG432-MF4
Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: Sweden
