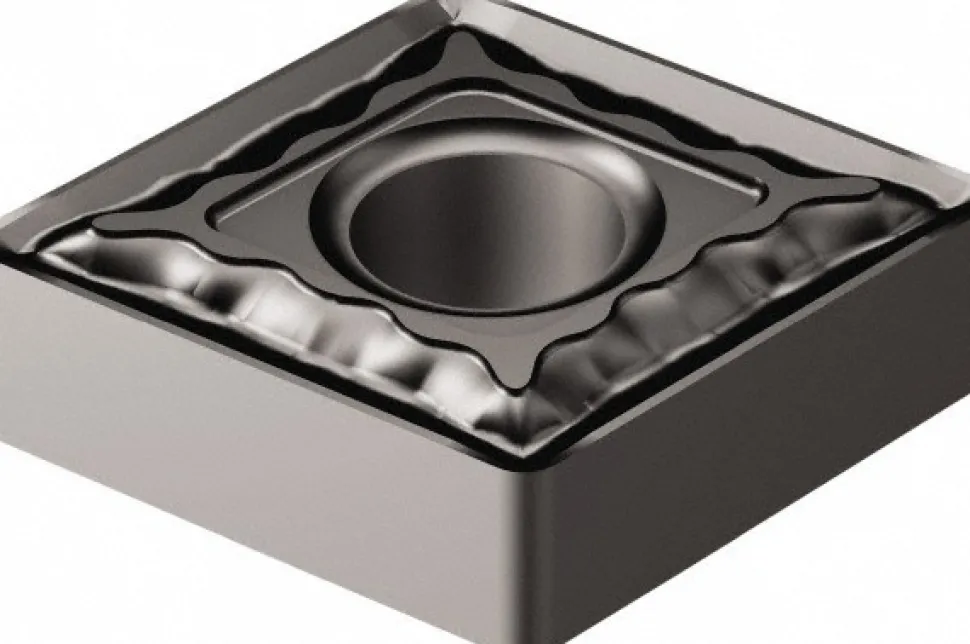

Turning Insert: CNMG432-QM 1105, Carbide
17,99 $
Specifications

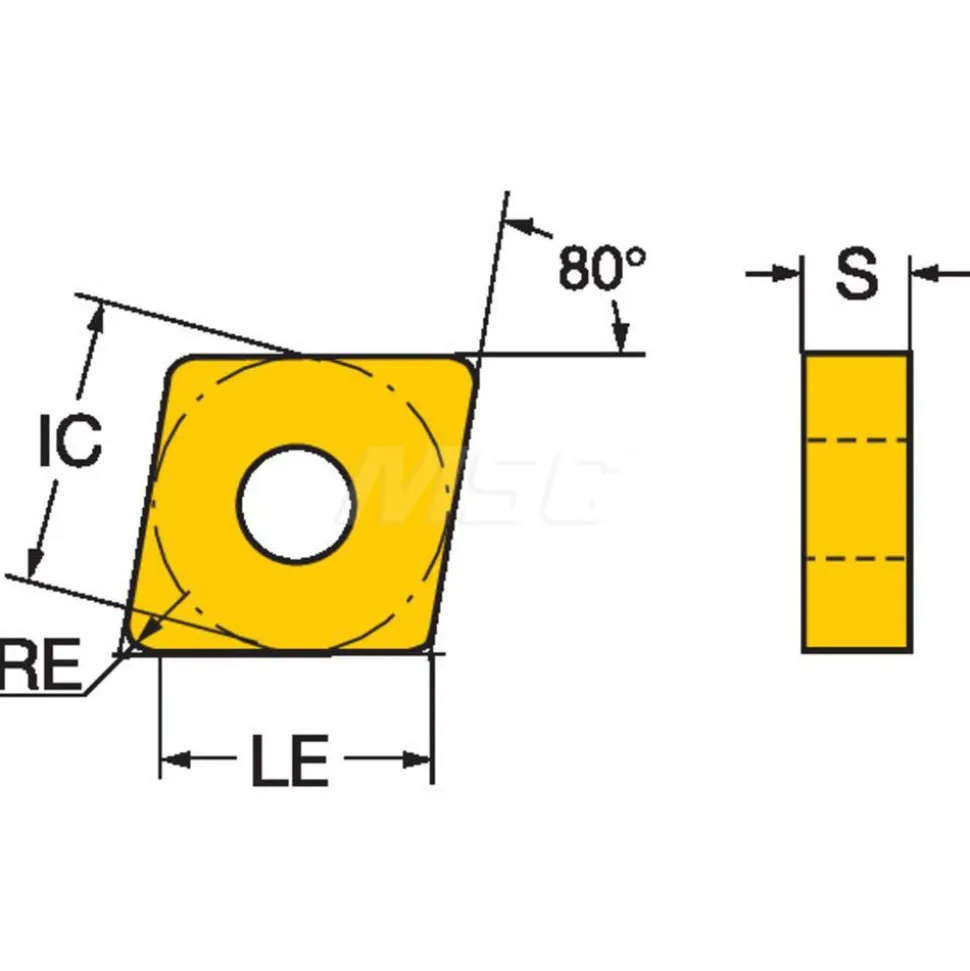

| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (Inch): 1/32 | Corner Radius (mm): 0.79 |
| Corner Radius (Decimal Inch): 0.0313 | Insert Material: Carbide |
| Manufacturer Grade: 1105 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1875 |
| Insert Thickness: 4.76 | Insert Hand: Neutral |
| Series: T-Max P | Chip Breaker Operation: Medium Machining; Roughing |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance | Side Clearance: Negative |
| Number Of Cutting Edges: 4 | Hole Diameter (Decimal Inch): 0.2030 |
| Hole Diameter (mm): 5.16 | ANSI Insert Code: CNMG432 |
| ISO Insert Code: CNMG120408 | Insert Holding Method: Pin; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Insert Length (Decimal Inch): 0.4762 |
| Insert Length (mm): 12.10 | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: S | Secondary Workpiece Material: Superalloy; Stainless Steel; Titanium; Steel |
| Secondary Workpiece Material Code: P; S; M | Iso Code: CNMG 12 04 08-QM 1105 |

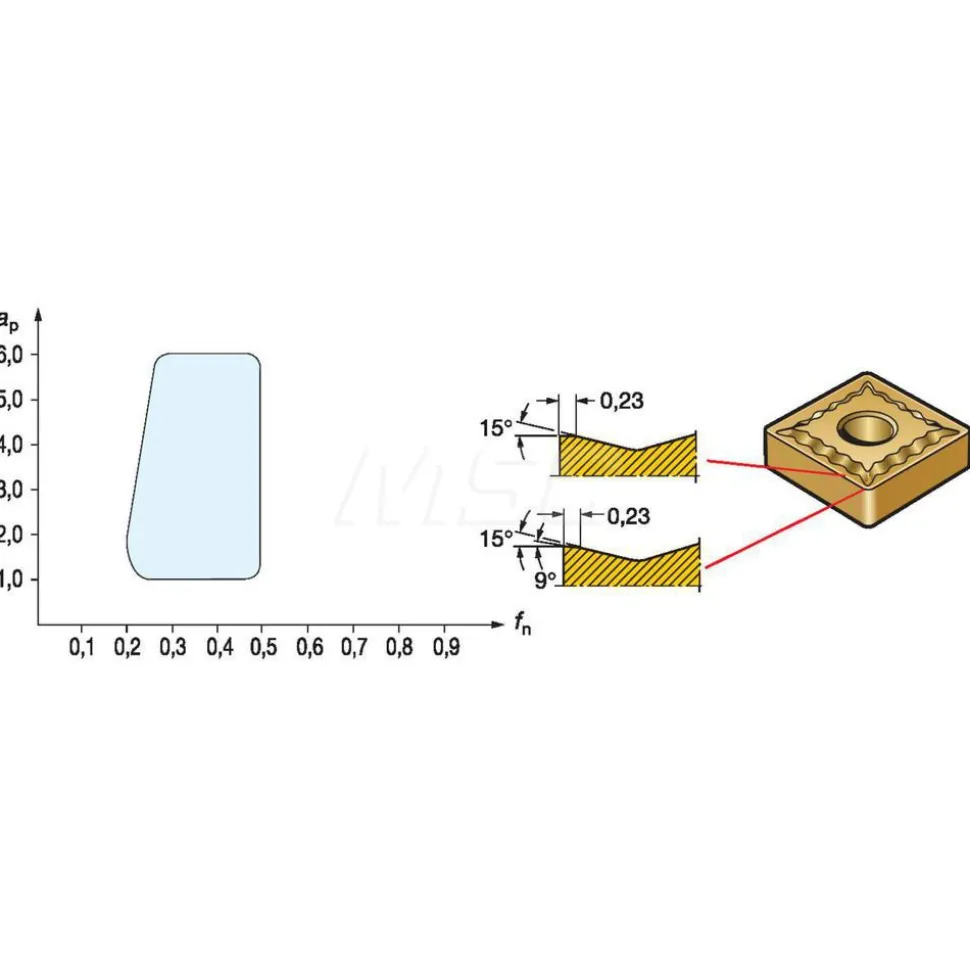

| Chip Breaker: QM | UNSPSC Code: 23242105 |
| Country of Origin: India | |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (mm): 0.79 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 1105 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Thickness: 4.76 | |
| Insert Hand: Neutral | |
| Series: T-Max P | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Hole Diameter (mm): 5.16 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Insert Length (Decimal Inch): 0.4762 | |
| Insert Length (mm): 12.10 | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: S | |
| Secondary Workpiece Material: Superalloy; Stainless Steel; Titanium; Steel | |
| Secondary Workpiece Material Code: P; S; M | |
| Iso Code: CNMG 12 04 08-QM 1105 | |
| Chip Breaker: QM | |
| UNSPSC Code: 23242105 | |
| Country of Origin: India |
| MSC# | 41064684 |
| Mfr# | 5724822 |
