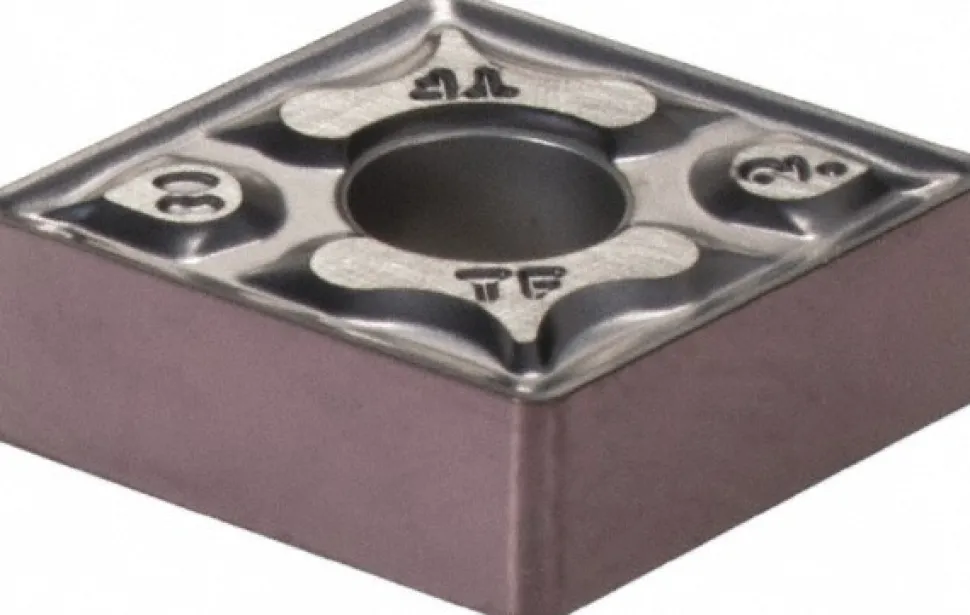

Turning Insert: CNMG432TF IC806, Carbide
15,99 $
Specifications

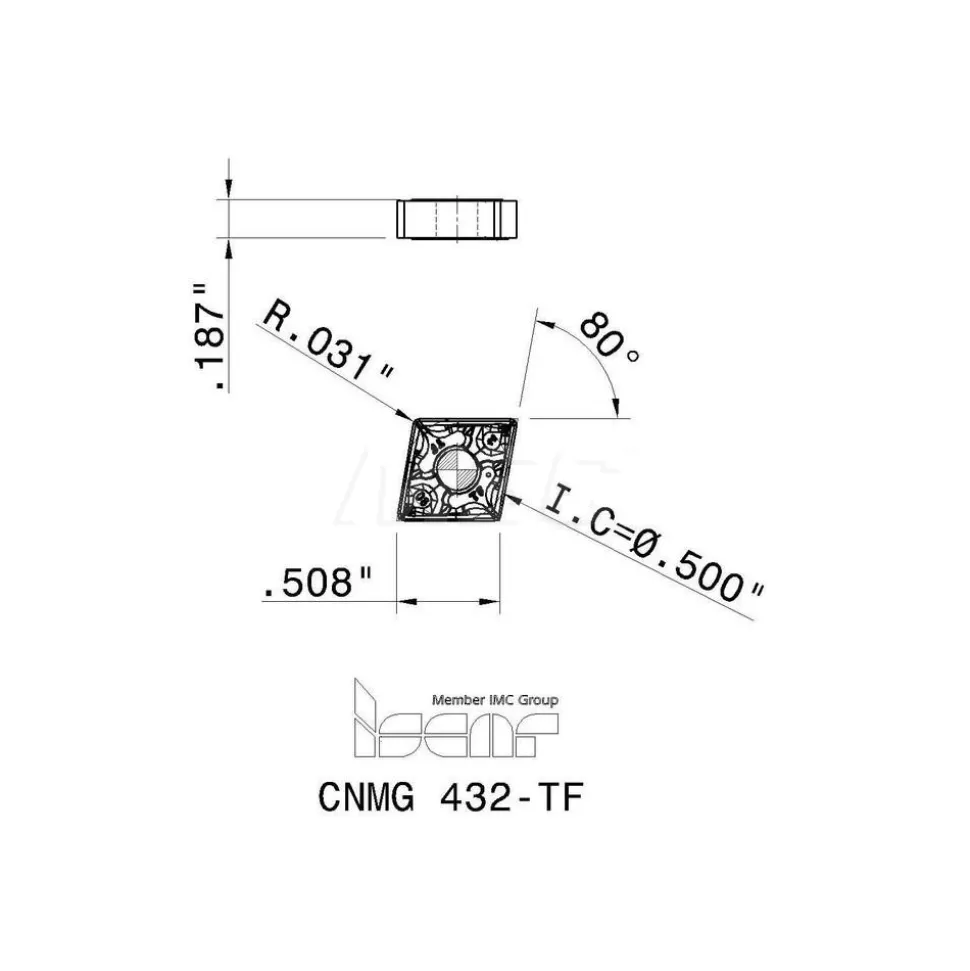

| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (Decimal Inch): 0.0310 | Insert Material: Carbide |
| Manufacturer Grade: IC806 | Coating/Finish: TiN; TiAlN |
| Relief Angle: 0.000 | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1870 | Series: Isoturn |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Maximum Depth of Cut (mm): 3.99 |
| Maximum Depth of Cut (Decimal Inch): 0.1570 | ANSI Insert Code: CNMG432 |
| ISO Insert Code: CNMG120408 | Insert Holding Method: Pin; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.5080 | Insert Length (mm): 12.90 |
| Primary Workpiece Material: Superalloy; Titanium | Primary Workpiece Material Code: S |
| Iso Code: CNMG 432-TF | Standards: ISO 13399 |
| Manufacturers Catalog Number: CNMG 432-TF | Material Grade: Submicron |
| Chip Breaker: TF | Multi-Use Tool: Yes |
| Multi-Use Application: Boring | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC806 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1870 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Maximum Depth of Cut (mm): 3.99 | |
| Maximum Depth of Cut (Decimal Inch): 0.1570 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.5080 | |
| Insert Length (mm): 12.90 | |
| Primary Workpiece Material: Superalloy; Titanium | |
| Primary Workpiece Material Code: S | |
| Iso Code: CNMG 432-TF | |
| Standards: ISO 13399 | |
| Manufacturers Catalog Number: CNMG 432-TF | |
| Material Grade: Submicron | |
| Chip Breaker: TF | |
| Multi-Use Tool: Yes | |
| Multi-Use Application: Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 07979230 |
| Mfr# | 5509897 |
