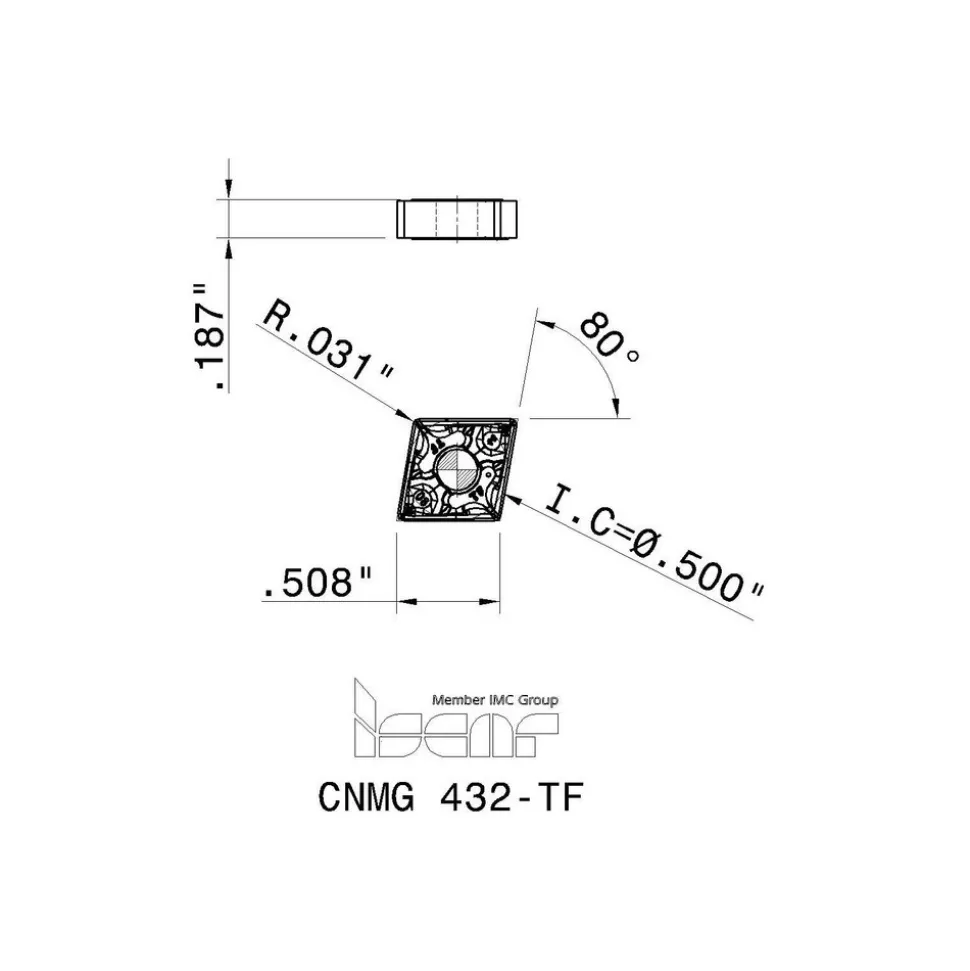

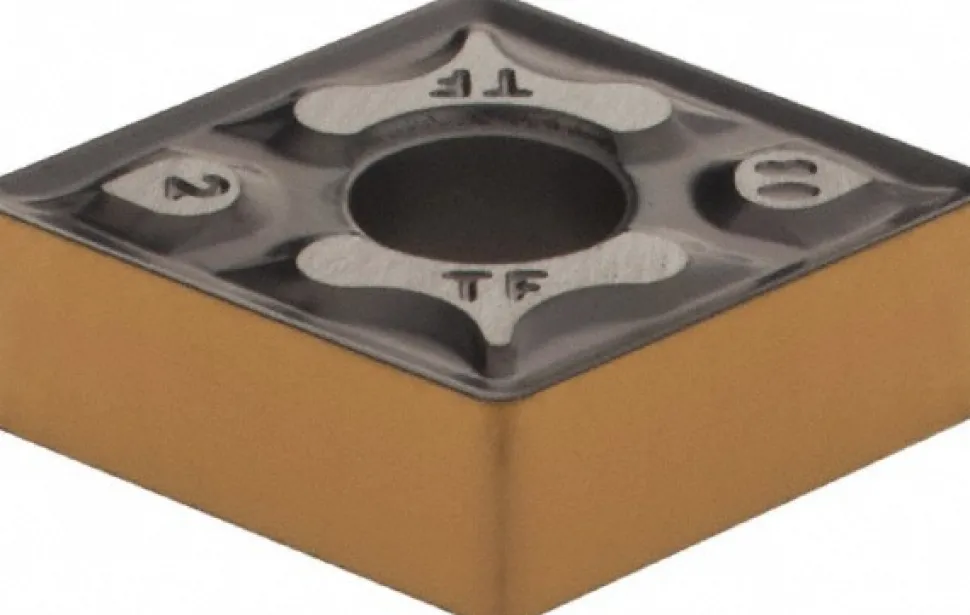

Turning Insert: CNMG432TF IC807, Carbide
15,99 $
Specifications
| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (Decimal Inch): 0.0315 | Insert Material: Carbide |
| Manufacturer Grade: IC807 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1874 | Series: Isoturn |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Hole Diameter (Decimal Inch): 0.2030 |
| Maximum Depth of Cut (mm): 4.00 | Maximum Depth of Cut (Decimal Inch): 0.1575 |
| ANSI Insert Code: CNMG432 | ISO Insert Code: CNMG120408 |
| Insert Holding Method: Pin; Clamp | Clearance Code: N |
| Tolerance Code: M | Coating Process: PVD |
| Rake: Positive | Insert Length (Decimal Inch): 0.5079 |
| Insert Length (mm): 12.90 | Primary Workpiece Material Code: P; S; K; M |
| Iso Code: ISO 13399 | Standards: ISO 13399 |
| Chip Breaker: TF | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC807 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Maximum Depth of Cut (mm): 4.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.1575 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.5079 | |
| Insert Length (mm): 12.90 | |
| Primary Workpiece Material Code: P; S; K; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Chip Breaker: TF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 79393310 |
| Mfr# | 5507750 |
| Big Book# | 761 |
