Sale!

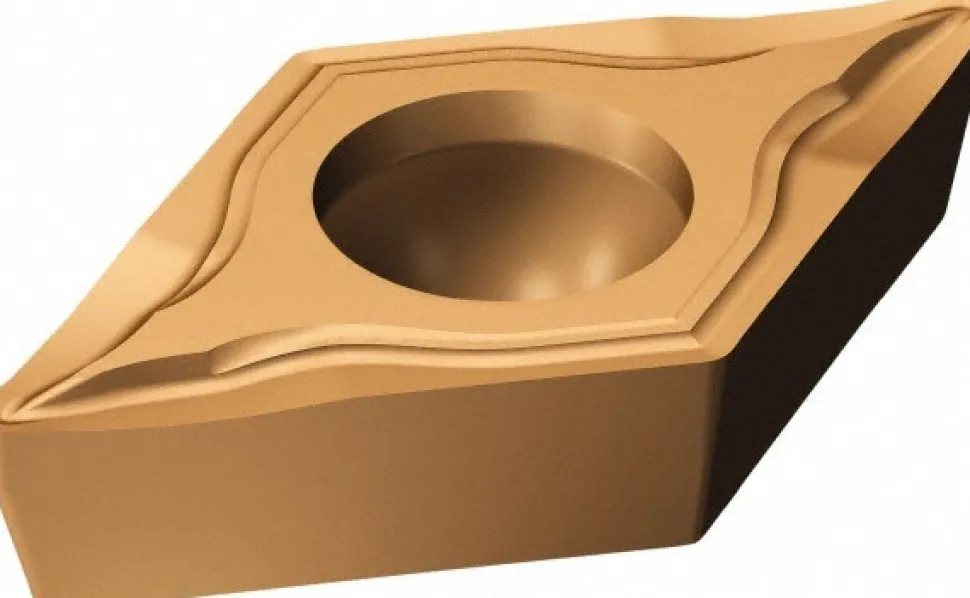

Turning Insert: DCGT32.51-UM 1115, Carbide
Original price was: 42,00 $.29,89 $Current price is: 29,89 $.
Specifications

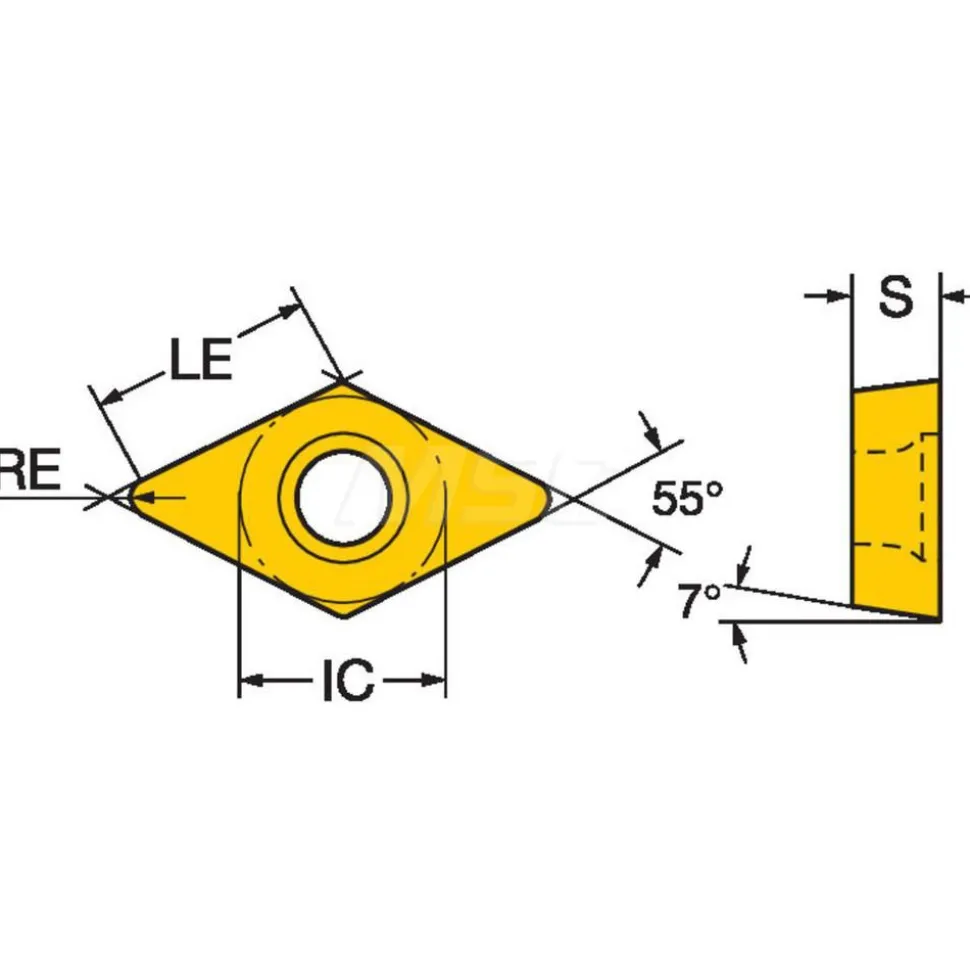

| Insert Style: DCGT | ANSI Size Code: 32.51 |
| ISO Size Code: 11T304 | Insert Shape: D – Diamond (Rhombic) 55-Deg |
| Included Angle: 55.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (mm): 0.40 | Corner Radius (Decimal Inch): 0.0156 |
| Insert Material: Carbide | Manufacturer Grade: 1115 |
| Coating/Finish: AlCr2O3; TiAlN | Relief Angle: 7.000 |
| Wiper Edge: No | Insert Thickness (Inch): 5/32 |
| Insert Thickness (Decimal Inch): 0.1563 | Insert Thickness: 3.97 |
| Insert Hand: Neutral | Series: CoroTurn 107 |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Positive | Number Of Cutting Edges: 2 |
| Hole Diameter (Decimal Inch): 0.1732 | Hole Diameter (mm): 4.40 |
| ANSI Insert Code: DCGT32.51 | ISO Insert Code: DCGT11T304 |
| Insert Holding Method: Screw | Clearance Code: C |
| Tolerance Code: G | Coating Process: PVD |
| Insert Length (Decimal Inch): 0.4420 | Insert Length (mm): 11.23 |
| Primary Workpiece Material: Stainless Steel | Primary Workpiece Material Code: S; M |
| Secondary Workpiece Material: Superalloy; Titanium | Secondary Workpiece Material Code: S |
| Iso Code: DCGT 11 T3 04-UM 1115 | Chip Breaker: UM |
| UNSPSC Code: 23242105 | Country of Origin: India |
| Insert Style: DCGT | |
| ANSI Size Code: 32.51 | |
| ISO Size Code: 11T304 | |
| Insert Shape: D – Diamond (Rhombic) 55-Deg | |
| Included Angle: 55.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (mm): 0.40 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 1115 | |
| Coating/Finish: AlCr2O3; TiAlN | |
| Relief Angle: 7.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 5/32 | |
| Insert Thickness (Decimal Inch): 0.1563 | |
| Insert Thickness: 3.97 | |
| Insert Hand: Neutral | |
| Series: CoroTurn 107 | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Number Of Cutting Edges: 2 | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Hole Diameter (mm): 4.40 | |
| ANSI Insert Code: DCGT32.51 | |
| ISO Insert Code: DCGT11T304 | |
| Insert Holding Method: Screw | |
| Clearance Code: C | |
| Tolerance Code: G | |
| Coating Process: PVD | |
| Insert Length (Decimal Inch): 0.4420 | |
| Insert Length (mm): 11.23 | |
| Primary Workpiece Material: Stainless Steel | |
| Primary Workpiece Material Code: S; M | |
| Secondary Workpiece Material: Superalloy; Titanium | |
| Secondary Workpiece Material Code: S | |
| Iso Code: DCGT 11 T3 04-UM 1115 | |
| Chip Breaker: UM | |
| UNSPSC Code: 23242105 | |
| Country of Origin: India |
| MSC# | 43603554 |
| Mfr# | 5730410 |
