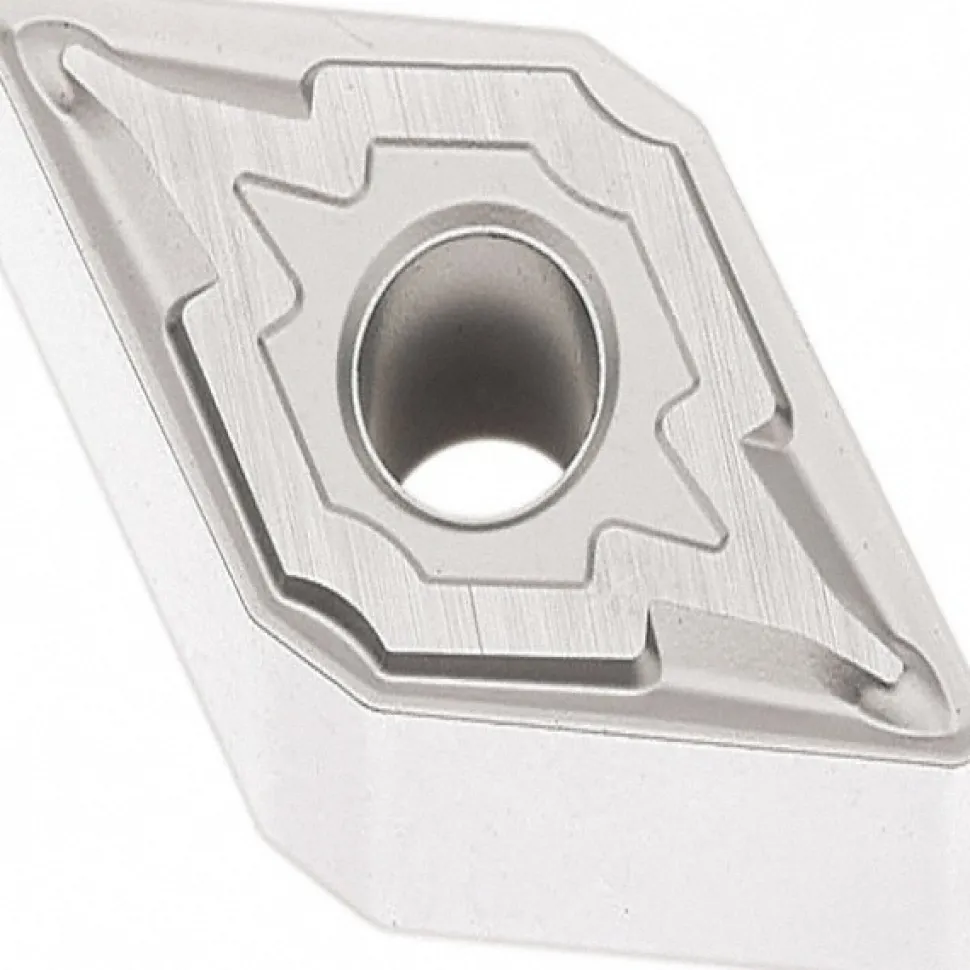

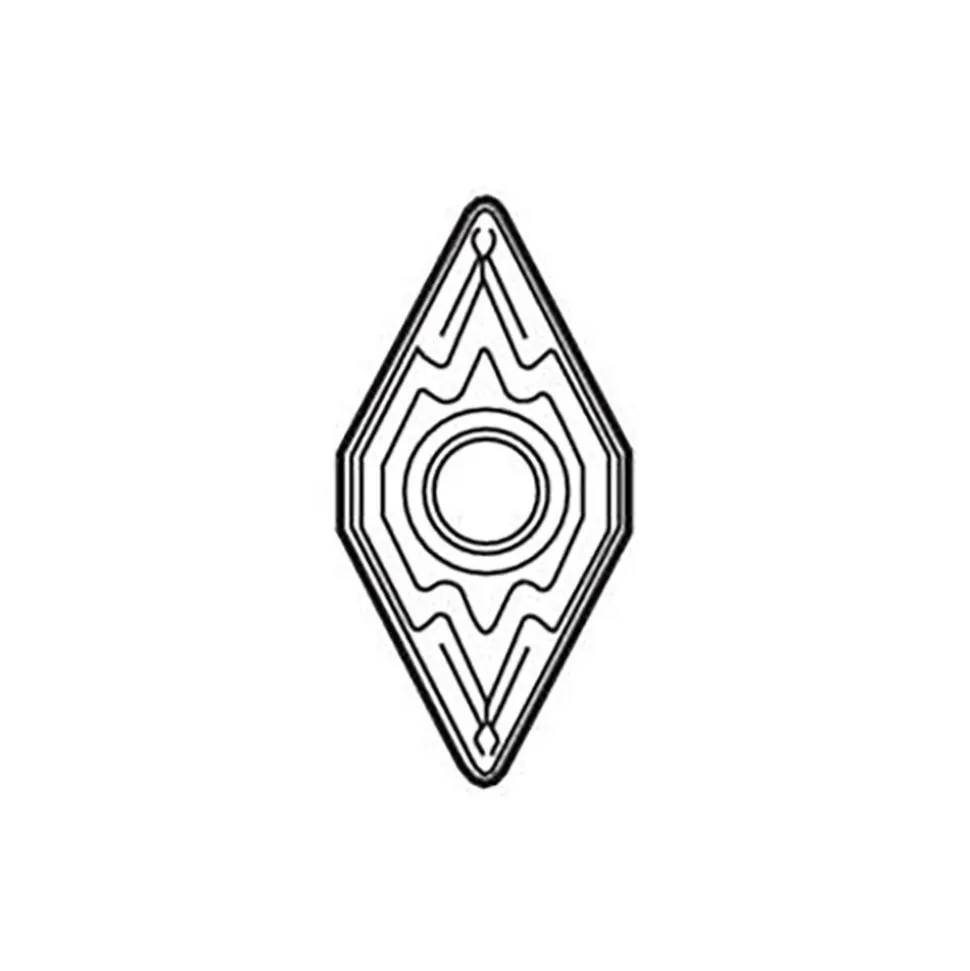

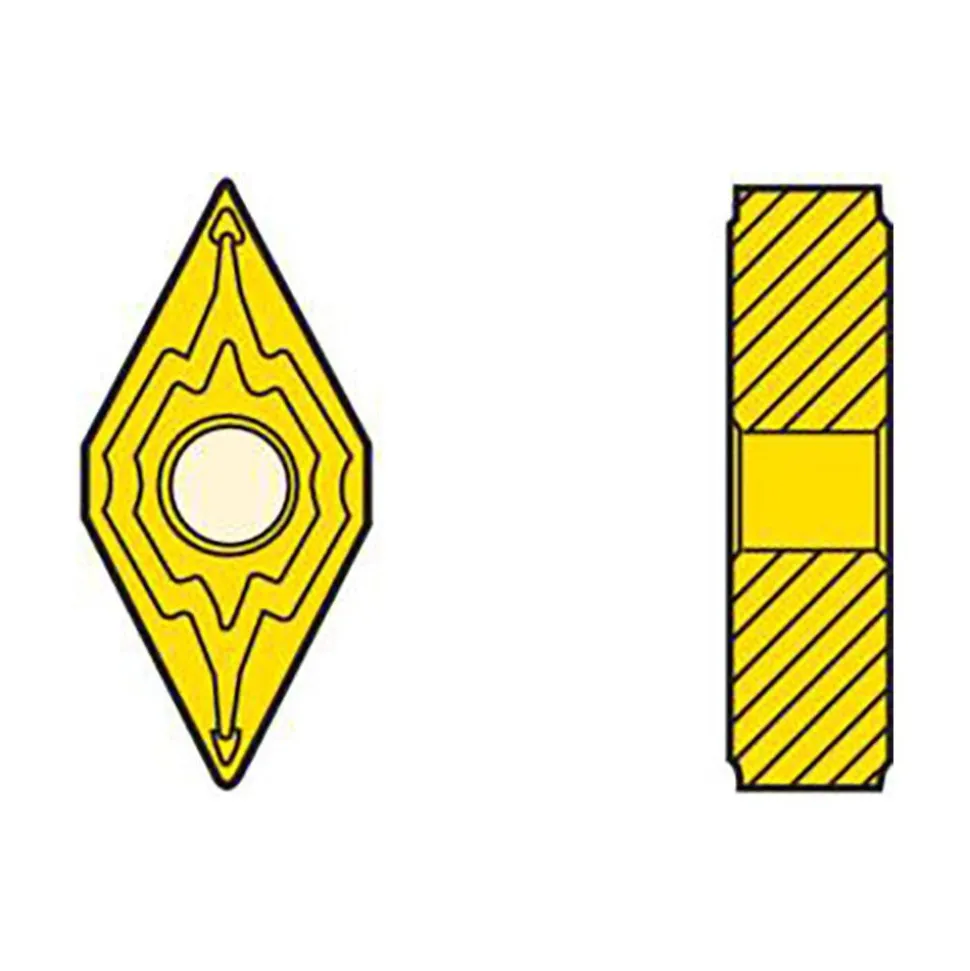

Turning Insert: DNMG432-M3 TP2501, Carbide

Turning Insert: DNMG432-M3 TP2501, Carbide

Original price was: 30,00 $.Current price is: 22,99 $.

SKU: SKUsyqPrwWSrj Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Seco Brand: Seco

Description
Reviews (0)

Specifications

Insert Style: DNMG	ANSI Size Code: 432
ISO Size Code: 150408	Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315	Insert Material: Carbide
Manufacturer Grade: TP2501	Coating/Finish: TiCN; Al2O3; Cr
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1874
Insert Hand: Neutral	Series: DNMG-M3
Chip Breaker Operation: Medium Machining; Finishing	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – High Wear-Resistance to High Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2028	Hole Diameter (mm): 5.15
Maximum Depth of Cut (Decimal Inch): 0.5787	ANSI Insert Code: DNMG432
ISO Insert Code: DNMG150408	Insert Holding Method: Pin; Clamp; Lever Lock
Width (Inch): 1/2	Clearance Code: N
Tolerance Code: M	Coating Process: CVD
Rake: Negative	Insert Length (Decimal Inch): 1.2204
Primary Workpiece Material: Steel	Primary Workpiece Material Code: P; K; M
Secondary Workpiece Material: Stainless Steel; Cast Iron	Secondary Workpiece Material Code: K; M
Iso Code: DNMG150408-M3	Standards: ISO; ANSI
Manufacturers Catalog Number: 02959940	Material Grade: P35; P30; P10; P20
Single or Multi Tipped: Multi Tipped	Proprietary Coating Designation: Duratomic
Lead Angle: 55.000	Coating Classification: Duratomic
Chip Breaker: M3	Cutting Edge Style: Honed; Chamfered
Industry Standard Number: DNMG432-M3	Width (Decimal Inch – 4 Decimals): 0.5000
Width (mm – 2 Decimals): 15.50	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Back Turning; Boring
UNSPSC Code: 23242105	Country of Origin: Sweden
Insert Style: DNMG
ANSI Size Code: 432
ISO Size Code: 150408
Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: TP2501
Coating/Finish: TiCN; Al2O3; Cr
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874
Insert Hand: Neutral
Series: DNMG-M3
Chip Breaker Operation: Medium Machining; Finishing
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – High Wear-Resistance to High Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2028
Hole Diameter (mm): 5.15
Maximum Depth of Cut (Decimal Inch): 0.5787
ANSI Insert Code: DNMG432
ISO Insert Code: DNMG150408
Insert Holding Method: Pin; Clamp; Lever Lock
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Rake: Negative
Insert Length (Decimal Inch): 1.2204
Primary Workpiece Material: Steel
Primary Workpiece Material Code: P; K; M
Secondary Workpiece Material: Stainless Steel; Cast Iron
Secondary Workpiece Material Code: K; M
Iso Code: DNMG150408-M3
Standards: ISO; ANSI
Manufacturers Catalog Number: 02959940
Material Grade: P35; P30; P10; P20
Single or Multi Tipped: Multi Tipped
Proprietary Coating Designation: Duratomic
Lead Angle: 55.000
Coating Classification: Duratomic
Chip Breaker: M3
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: DNMG432-M3
Width (Decimal Inch – 4 Decimals): 0.5000
Width (mm – 2 Decimals): 15.50
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Back Turning; Boring
UNSPSC Code: 23242105
Country of Origin: Sweden
