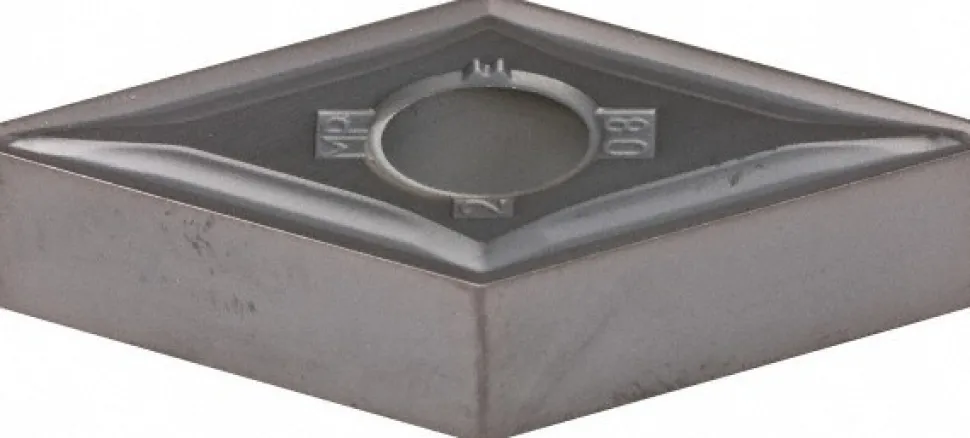

Turning Insert: DNMG432MP KC5010, Carbide
Original price was: 40,00 $.29,89 $Current price is: 29,89 $.
Specifications
| Insert Style: DNMG | ANSI Size Code: 432 |
| ISO Size Code: 150408 | Insert Shape: D – Diamond (Rhombic) 55-Deg |
| Included Angle: 55.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (Decimal Inch): 0.0313 | Insert Material: Carbide |
| Manufacturer Grade: KC5010 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1875 |
| Insert Hand: Neutral | Series: KENLOC |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.2031 | Hole Diameter (mm): 5.16 |
| Maximum Depth of Cut (mm): 1.25 | Maximum Depth of Cut (Decimal Inch): 0.0492 |
| ANSI Insert Code: DNMG432 | ISO Insert Code: DNMG150408 |
| Insert Holding Method: Pin; Clamp | Width (Inch): 1/2 |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Rake: Negative |
| Insert Length (Decimal Inch): 1.2208 | Insert Length (mm): 15.50 |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; K; M; N |
| Secondary Workpiece Material Code: P; S; N | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 1832319 | Material Grade: C3; C4 |
| Coating Classification: PVD | Chip Breaker: MP |
| Rake Angle: 6 | Cutting Edge Style: Honed; Chamfered |
| Industry Standard Number: DNMG432MP | Width (Decimal Inch – 4 Decimals): 0.5000 |
| Multi-Use Tool: Yes | Full Radius: No |
| Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring | UNSPSC Code: 23242105 |
| Insert Style: DNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 150408 | |
| Insert Shape: D – Diamond (Rhombic) 55-Deg | |
| Included Angle: 55.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: Carbide | |
| Manufacturer Grade: KC5010 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Hand: Neutral | |
| Series: KENLOC | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2031 | |
| Hole Diameter (mm): 5.16 | |
| Maximum Depth of Cut (mm): 1.25 | |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | |
| ANSI Insert Code: DNMG432 | |
| ISO Insert Code: DNMG150408 | |
| Insert Holding Method: Pin; Clamp | |
| Width (Inch): 1/2 | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 1.2208 | |
| Insert Length (mm): 15.50 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Secondary Workpiece Material Code: P; S; N | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 1832319 | |
| Material Grade: C3; C4 | |
| Coating Classification: PVD | |
| Chip Breaker: MP | |
| Rake Angle: 6 | |
| Cutting Edge Style: Honed; Chamfered | |
| Industry Standard Number: DNMG432MP | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring | |
| UNSPSC Code: 23242105 |
| MSC# | 79260766 |
| Mfr# | 1832319 |
| Big Book# | 775 |
