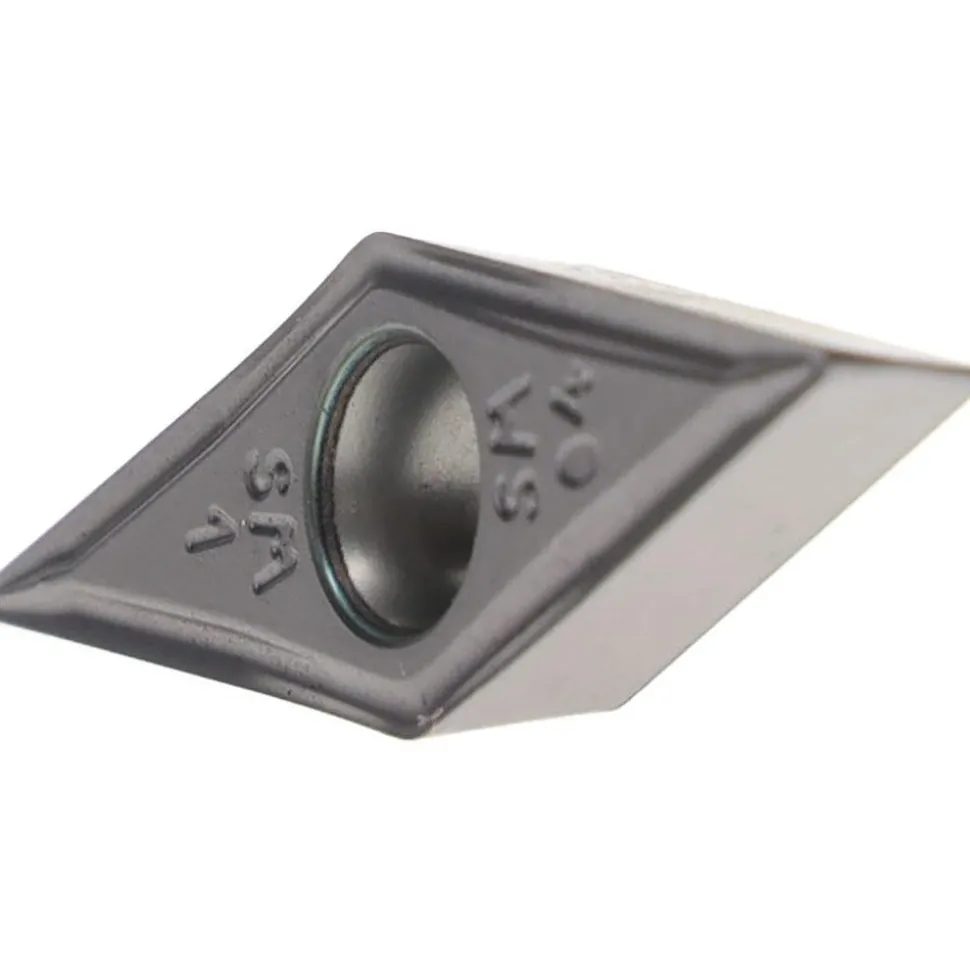

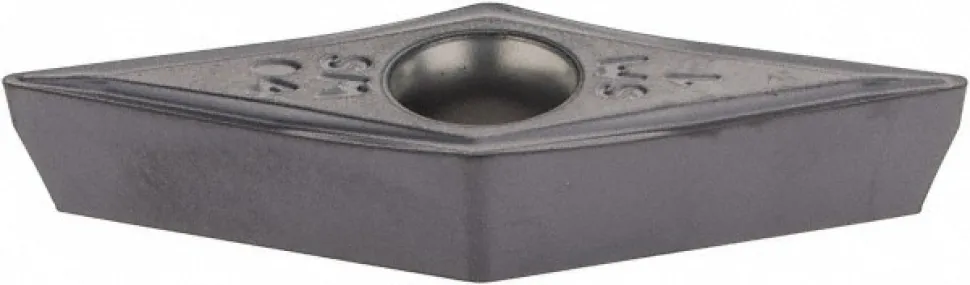

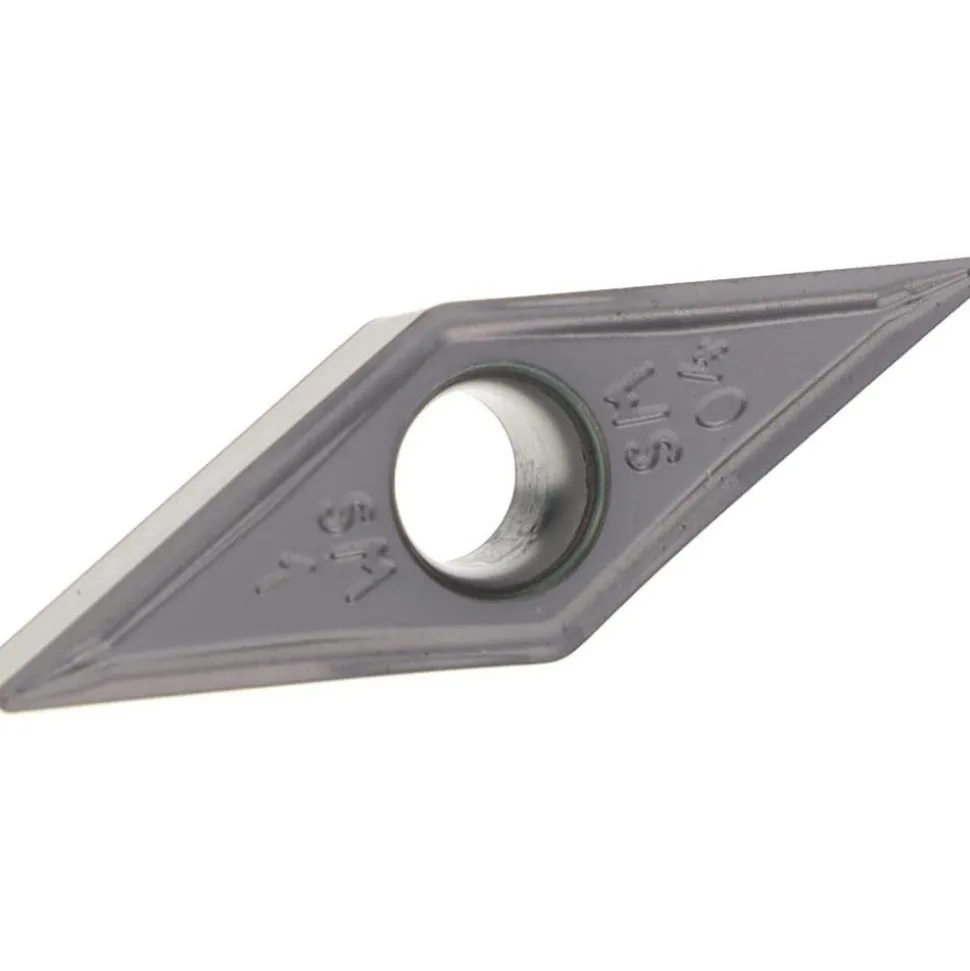

Turning Insert: VCMT 331-SM IC907, Carbide
Original price was: 32,00 $.23,89 $Current price is: 23,89 $.
Specifications

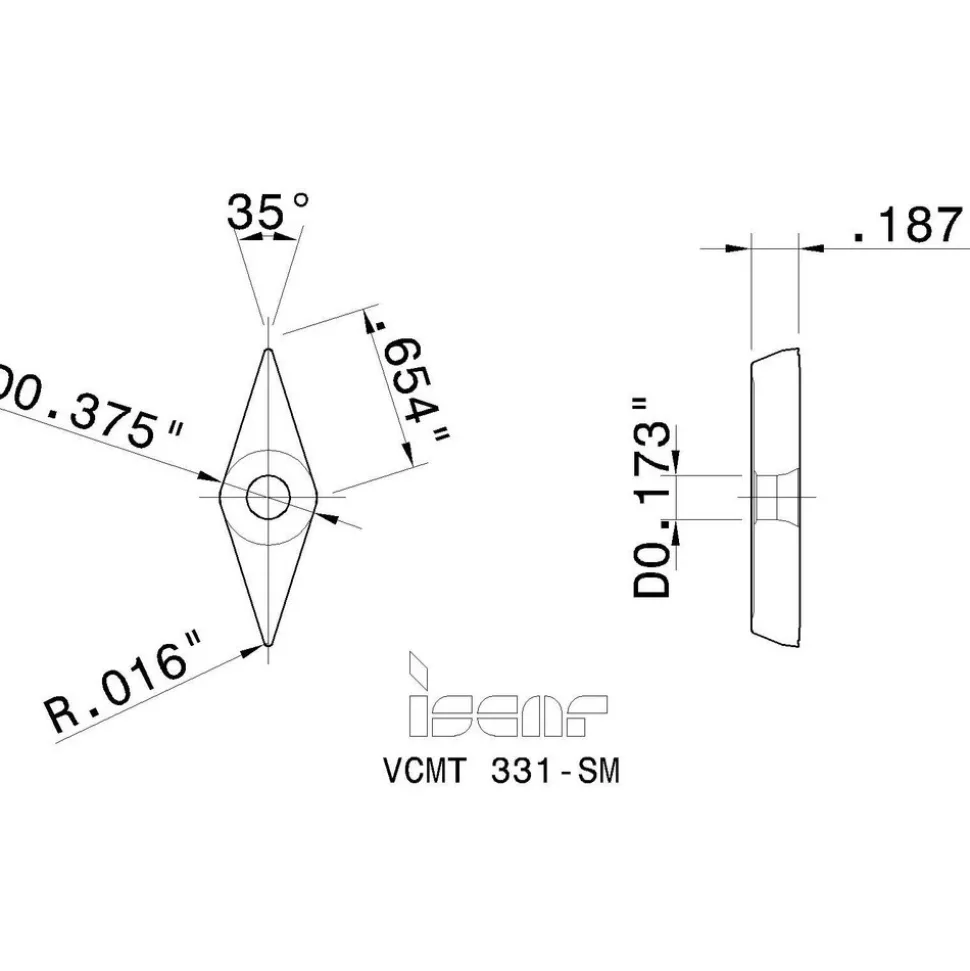

| Insert Style: VCMT | ANSI Size Code: 331 |
| ISO Size Code: 160404 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3748 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0160 | Insert Material: Carbide |
| Manufacturer Grade: IC907 | Coating/Finish: TiN; TiAlN |
| Relief Angle: 7.000 | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1874 | Series: Isoturn |
| Chip Breaker Operation: Medium Machining; Finishing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Positive | Hole Diameter (Decimal Inch): 0.1732 |
| Hole Diameter (mm): 4.40 | Maximum Depth of Cut (mm): 2.50 |
| Maximum Depth of Cut (Decimal Inch): 0.0980 | ANSI Insert Code: VCMT331 |
| ISO Insert Code: VCMT160404 | Insert Holding Method: Screw |
| Clearance Code: C | Tolerance Code: M |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.6535 | Insert Length (mm): 16.60 |
| Primary Workpiece Material Code: P; S; K; M; N | Iso Code: ISO 13399 |
| Standards: ISO 13399 | Material Grade: C7; C8 |
| Chip Breaker: SM | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: VCMT | |
| ANSI Size Code: 331 | |
| ISO Size Code: 160404 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3748 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0160 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC907 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 7.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Finishing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Hole Diameter (mm): 4.40 | |
| Maximum Depth of Cut (mm): 2.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.0980 | |
| ANSI Insert Code: VCMT331 | |
| ISO Insert Code: VCMT160404 | |
| Insert Holding Method: Screw | |
| Clearance Code: C | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.6535 | |
| Insert Length (mm): 16.60 | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Material Grade: C7; C8 | |
| Chip Breaker: SM | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 89758890 |
| Mfr# | 5504877 |
| Big Book# | 804 |
