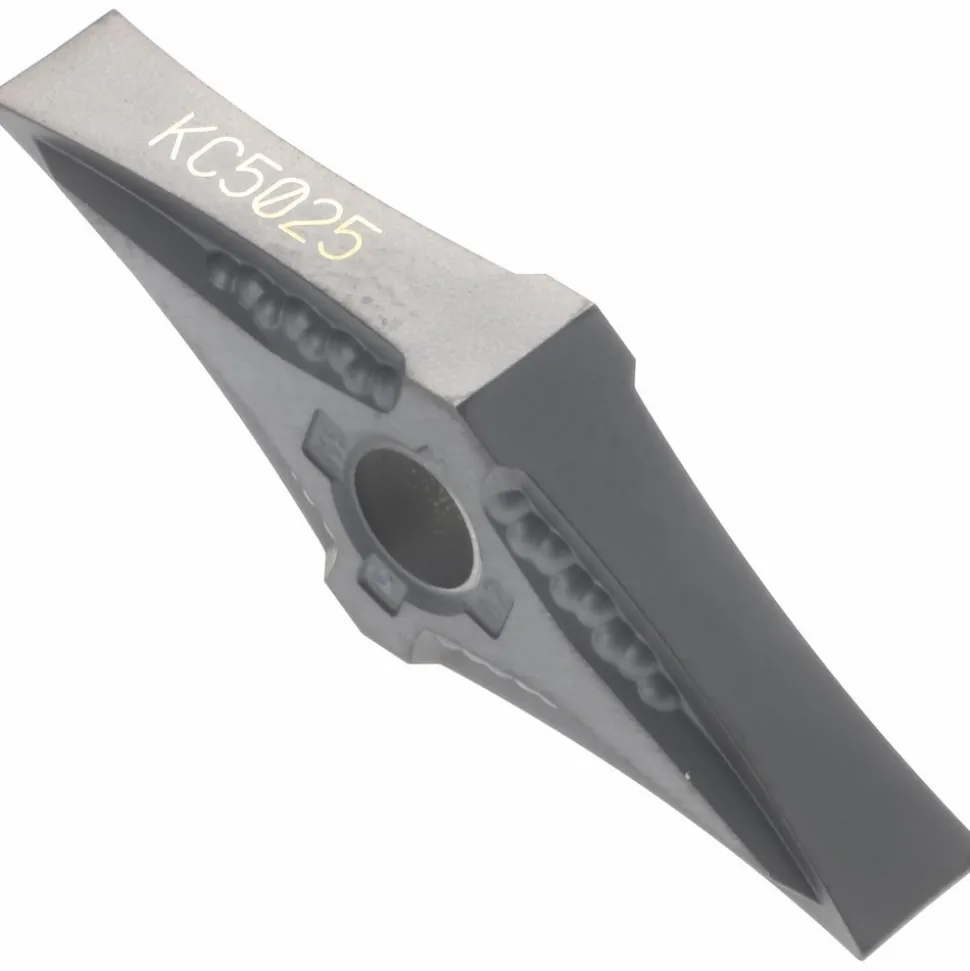

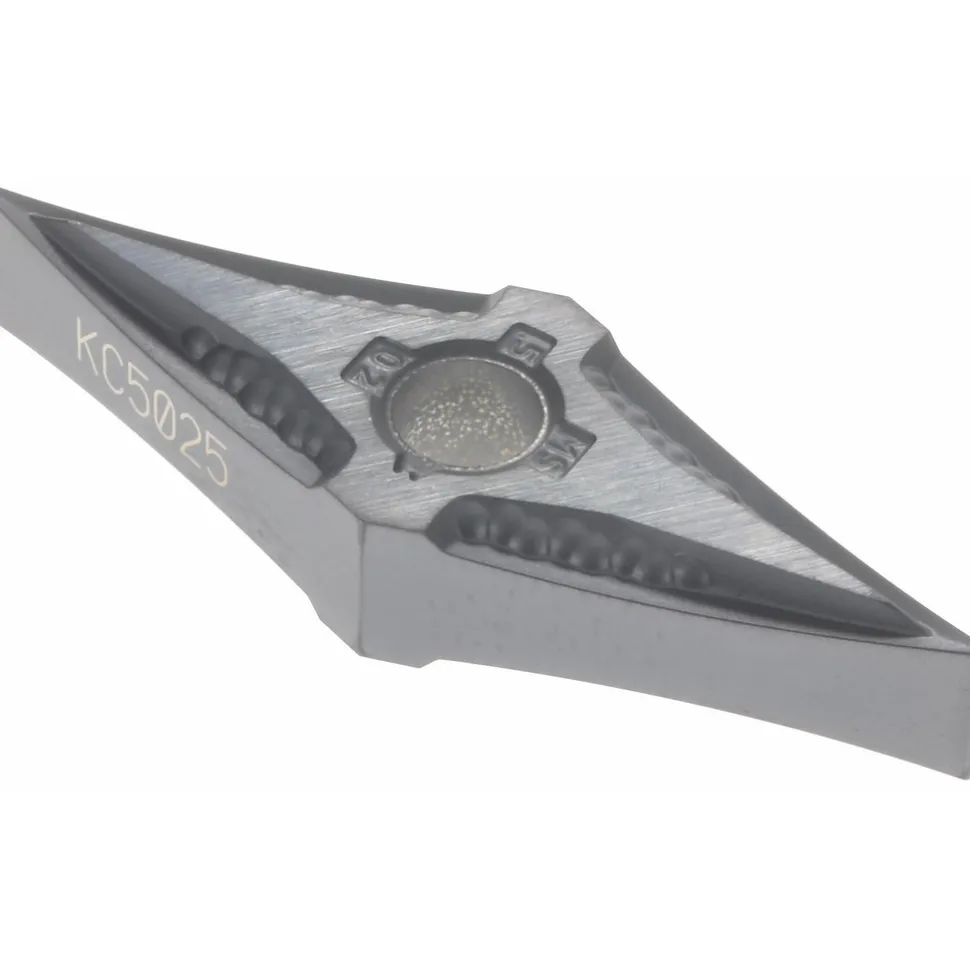

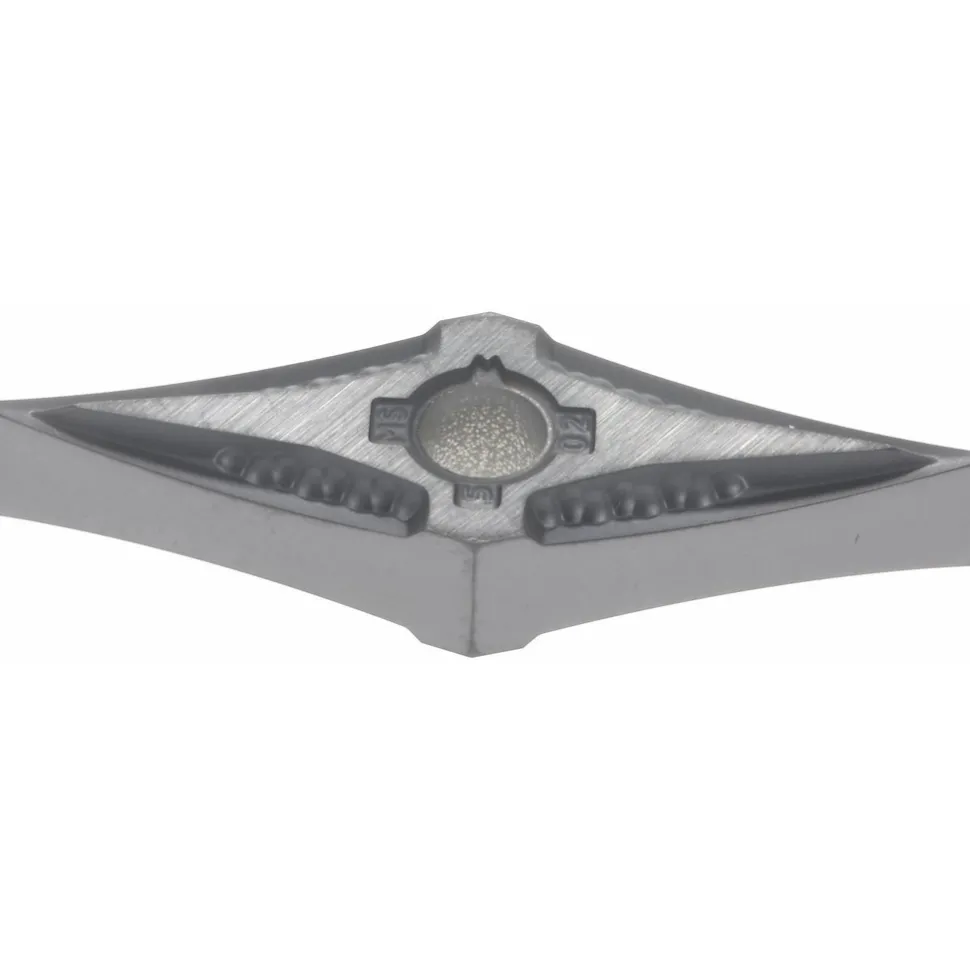

Turning Insert: VNMG3305MS KC5025, Carbide

Turning Insert: VNMG3305MS KC5025, Carbide

Original price was: 38,00 $.Current price is: 28,99 $.

SKU: SKUecp4BopLqm Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: VNMG	ANSI Size Code: 3305
ISO Size Code: 160402	Insert Shape: V – Diamond (Rhombic) 35-Deg
Included Angle: 35.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/128
Corner Radius (Decimal Inch): 0.0079	Insert Material: Carbide
Manufacturer Grade: KC5025	Coating/Finish: TiAlN
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral	Series: KENLOC
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Aluminum & Non-Ferrous (N) – Moderate Wear-Resistance and Toughness; Steel (P) – Moderate Wear-Resistance and Toughness; Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.1500	Hole Diameter (mm): 3.81
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: VNMG3305	ISO Insert Code: VNMG160402
Insert Holding Method: Pin; Clamp	Width (Inch): 3/8
Clearance Code: N	Tolerance Code: M
Coating Process: PVD	Rake: Negative
Insert Length (Decimal Inch): 1.3076	Insert Length (mm): 16.61
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium	Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: P; K; M; N	Standards: ISO; ANSI
Manufacturers Catalog Number: 2244947	Material Grade: C6; C2
Coating Classification: PVD	Chip Breaker: MS
Rake Angle: 13	Cutting Edge Style: Honed
Industry Standard Number: VNMG3305MS	Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring	UNSPSC Code: 23242105
Country of Origin: UNITED STATES
Insert Style: VNMG
ANSI Size Code: 3305
ISO Size Code: 160402
Insert Shape: V – Diamond (Rhombic) 35-Deg
Included Angle: 35.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/128
Corner Radius (Decimal Inch): 0.0079
Insert Material: Carbide
Manufacturer Grade: KC5025
Coating/Finish: TiAlN
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Aluminum & Non-Ferrous (N) – Moderate Wear-Resistance and Toughness; Steel (P) – Moderate Wear-Resistance and Toughness; Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.1500
Hole Diameter (mm): 3.81
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: VNMG3305
ISO Insert Code: VNMG160402
Insert Holding Method: Pin; Clamp
Width (Inch): 3/8
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Rake: Negative
Insert Length (Decimal Inch): 1.3076
Insert Length (mm): 16.61
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium
Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: P; K; M; N
Standards: ISO; ANSI
Manufacturers Catalog Number: 2244947
Material Grade: C6; C2
Coating Classification: PVD
Chip Breaker: MS
Rake Angle: 13
Cutting Edge Style: Honed
Industry Standard Number: VNMG3305MS
Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
