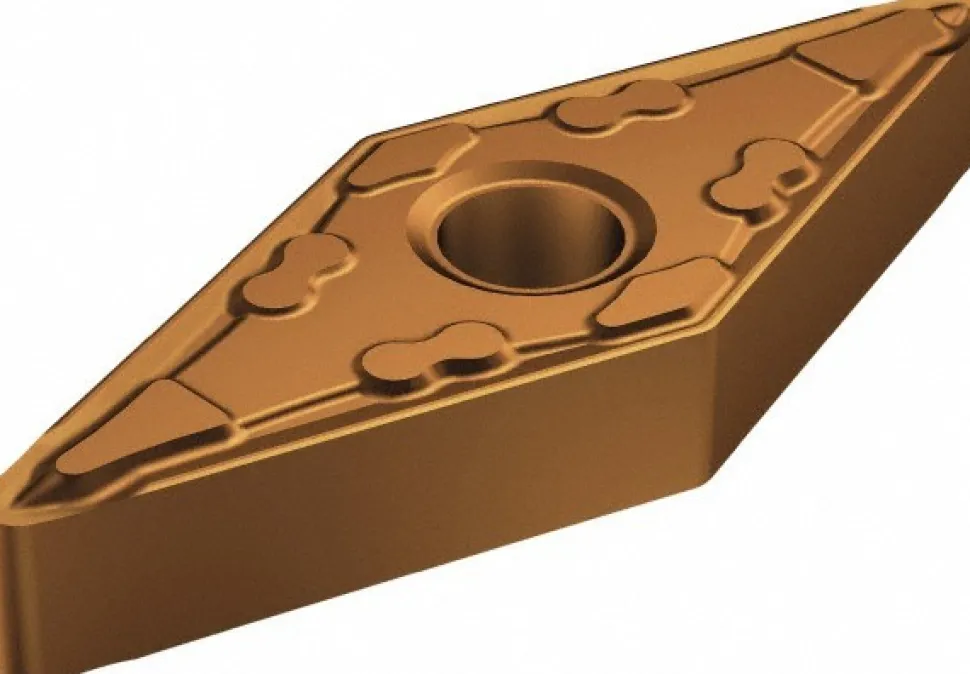

Turning Insert: VNMG331-MF 1125, Carbide
Original price was: 42,00 $.28,99 $Current price is: 28,99 $.
Specifications
| Insert Style: VNMG | ANSI Size Code: 331 |

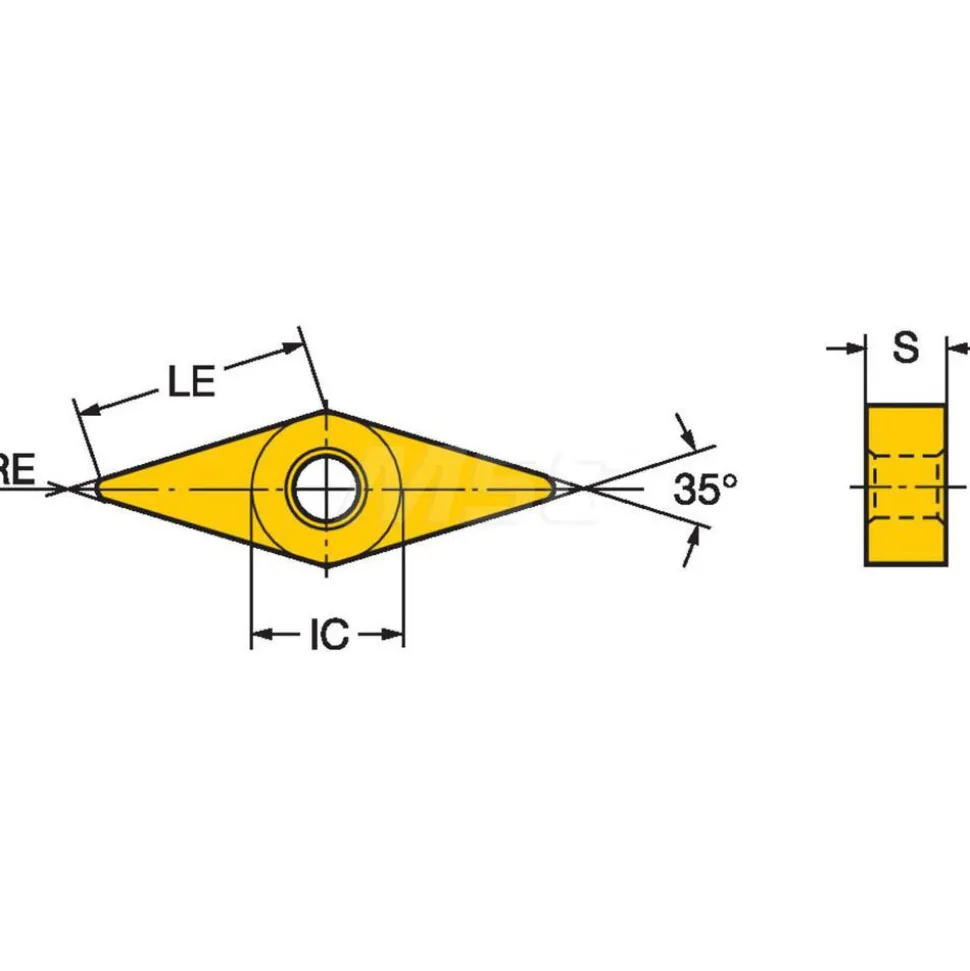

| ISO Size Code: 160404 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (mm): 0.40 | Corner Radius (Decimal Inch): 0.0156 |
| Insert Material: Carbide | Manufacturer Grade: 1125 |
| Coating/Finish: AlCr2O3; TiAlN | Relief Angle: 0.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Insert Thickness: 4.76 |
| Insert Hand: Neutral | Series: T-Max P |
| Chip Breaker Operation: Finishing | Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.1500 | Hole Diameter (mm): 3.81 |
| ANSI Insert Code: VNMG331 | ISO Insert Code: VNMG160404 |
| Insert Holding Method: Pin; Clamp | Clearance Code: N |
| Tolerance Code: M | Coating Process: PVD |
| Insert Length (Decimal Inch): 0.6380 | Insert Length (mm): 16.21 |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: S; M |
| Secondary Workpiece Material: Superalloy; Stainless Steel; Titanium; Steel | Secondary Workpiece Material Code: P; S; M |
| Iso Code: VNMG 16 04 04-MF 1125 | Chip Breaker: MF |
| UNSPSC Code: 23242105 | Country of Origin: India |
| Insert Style: VNMG | |
| ANSI Size Code: 331 | |
| ISO Size Code: 160404 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (mm): 0.40 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 1125 | |
| Coating/Finish: AlCr2O3; TiAlN | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Thickness: 4.76 | |
| Insert Hand: Neutral | |
| Series: T-Max P | |
| Chip Breaker Operation: Finishing | |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.1500 | |
| Hole Diameter (mm): 3.81 | |
| ANSI Insert Code: VNMG331 | |
| ISO Insert Code: VNMG160404 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Insert Length (Decimal Inch): 0.6380 | |
| Insert Length (mm): 16.21 | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: S; M | |
| Secondary Workpiece Material: Superalloy; Stainless Steel; Titanium; Steel | |
| Secondary Workpiece Material Code: P; S; M | |
| Iso Code: VNMG 16 04 04-MF 1125 | |
| Chip Breaker: MF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: India |
| MSC# | 52077278 |
| Mfr# | 5755955 |
