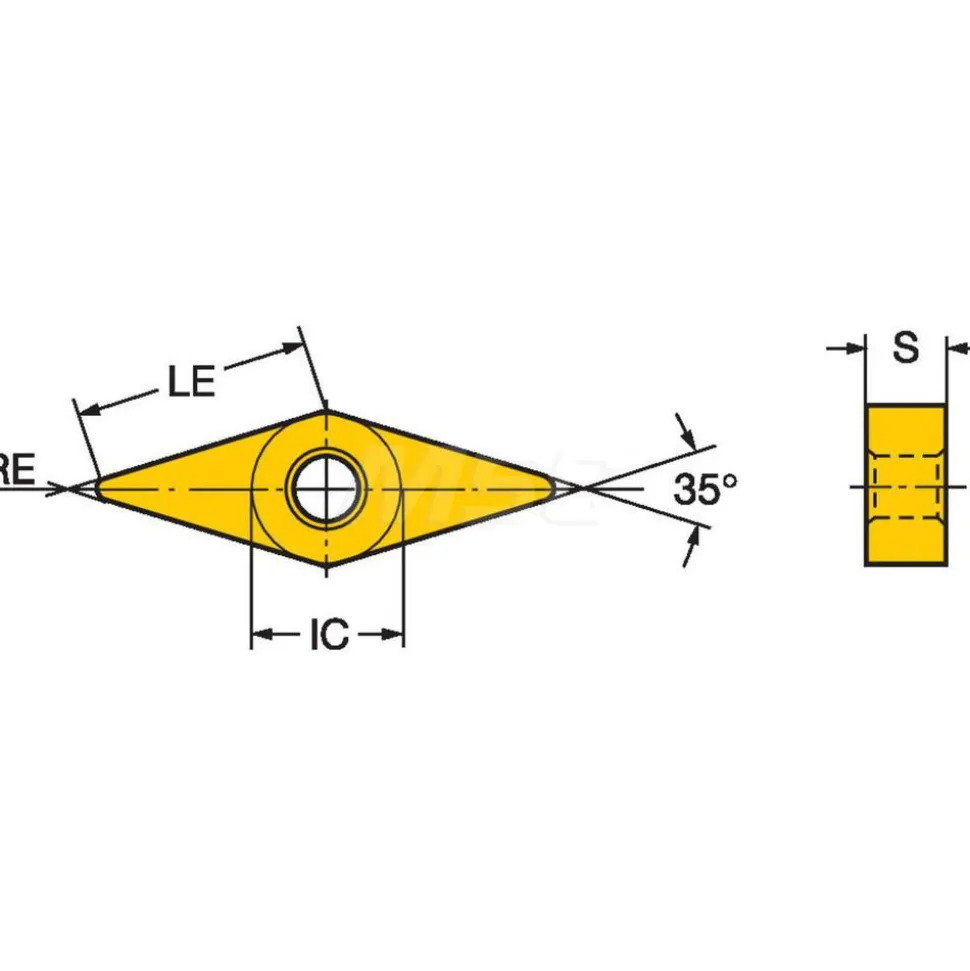

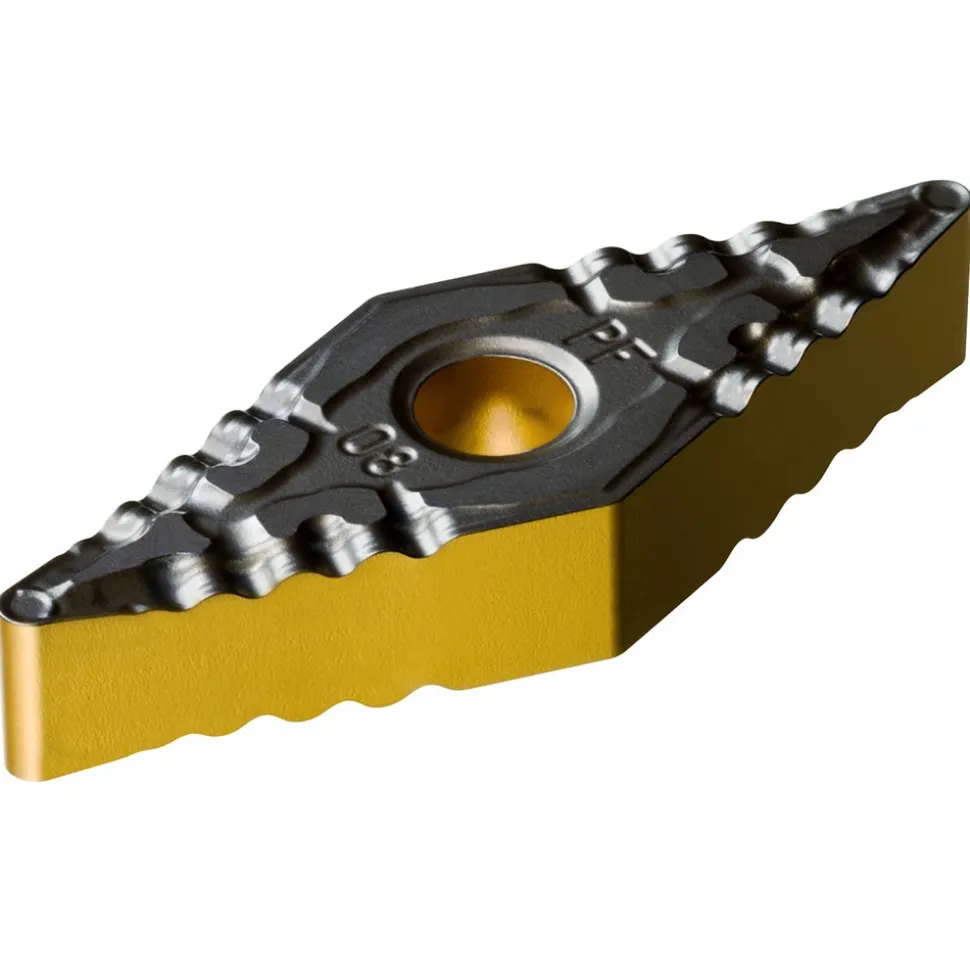

Turning Insert: VNMG331-PF 4415, Carbide
29,89 $
Specifications
| Insert Style: VNMG | ANSI Size Code: 331 |
| ISO Size Code: 160404 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (mm): 0.40 |
| Corner Radius (Decimal Inch): 0.0156 | Insert Material: Carbide |
| Manufacturer Grade: 4415 | Coating/Finish: TiCN; TiN; Al2O3 |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1875 |
| Insert Hand: Neutral | Series: T-Max P |
| Chip Breaker Operation: Finishing | Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.1500 | Hole Diameter (mm): 3.81 |
| ANSI Insert Code: VNMG331 | ISO Insert Code: VNMG160404 |
| Insert Holding Method: Screw; Clamp | Clearance Code: N |
| Tolerance Code: M | Coating Process: CVD |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: P |
| Secondary Workpiece Material: Cast Iron | Secondary Workpiece Material Code: K |
| Iso Code: VNMG 16 04 04-PF 4415 | Manufacturers Catalog Number: VNMG 331-PF |
| Chip Breaker: PF | Industry Standard Number: VNMG 16 04 04-PF 4415 |
| UNSPSC Code: 23242105 | Country of Origin: India |
| Insert Style: VNMG | |
| ANSI Size Code: 331 | |
| ISO Size Code: 160404 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (mm): 0.40 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 4415 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Hand: Neutral | |
| Series: T-Max P | |
| Chip Breaker Operation: Finishing | |
| Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.1500 | |
| Hole Diameter (mm): 3.81 | |
| ANSI Insert Code: VNMG331 | |
| ISO Insert Code: VNMG160404 | |
| Insert Holding Method: Screw; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Cast Iron | |
| Secondary Workpiece Material Code: K | |
| Iso Code: VNMG 16 04 04-PF 4415 | |
| Manufacturers Catalog Number: VNMG 331-PF | |
| Chip Breaker: PF | |
| Industry Standard Number: VNMG 16 04 04-PF 4415 | |
| UNSPSC Code: 23242105 | |
| Country of Origin: India |
| MSC# | 18677724 |
| Mfr# | 7860463 |
