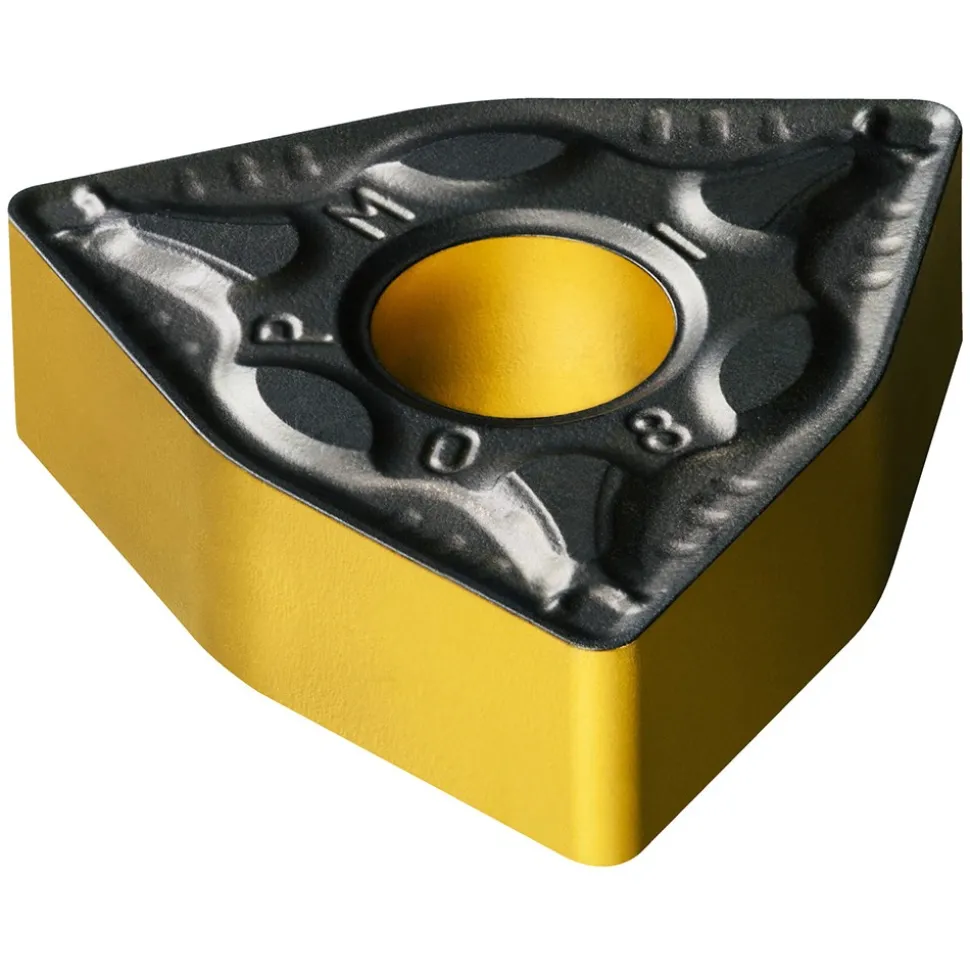

Turning Insert: WNMG432-PM 4425, Carbide
Original price was: 27,00 $.19,89 $Current price is: 19,89 $.

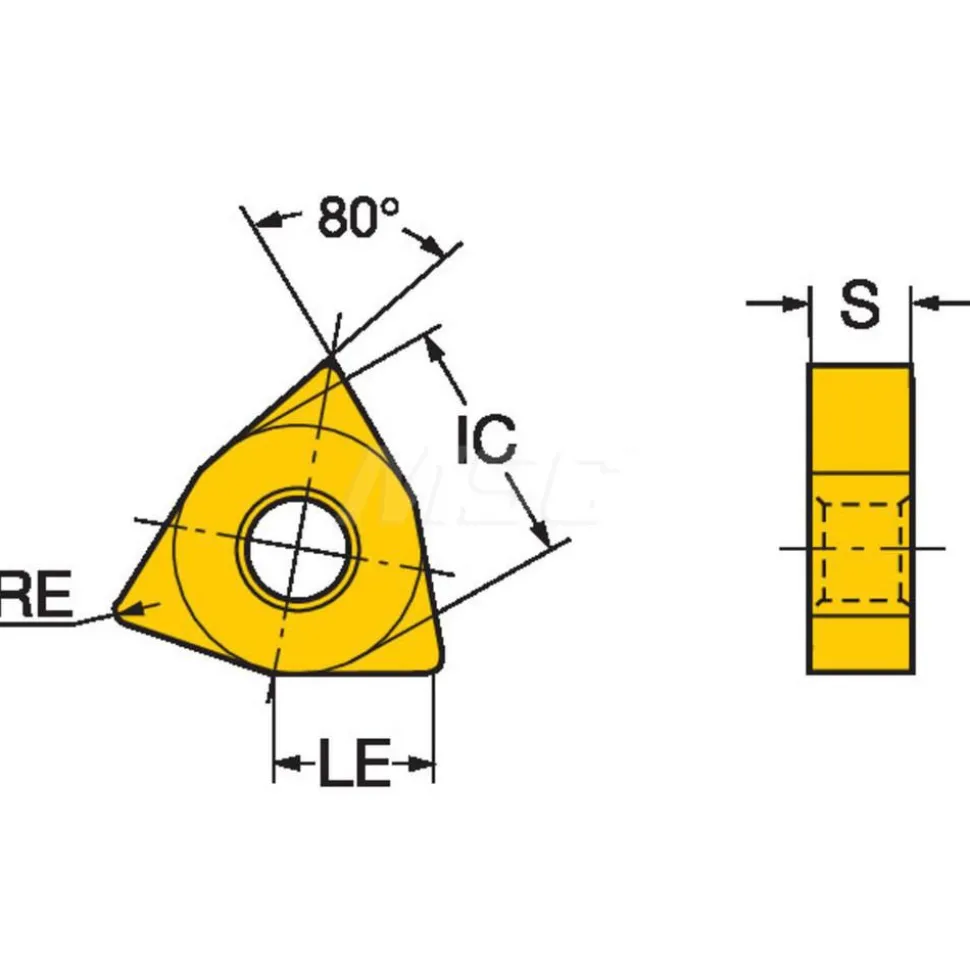

Specifications
| Insert Style: WNMG | ANSI Size Code: 432 |
| ISO Size Code: 080402 | Insert Shape: W – Trigon 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (mm): 0.79 | Corner Radius (Decimal Inch): 0.0313 |
| Insert Material: Carbide | Manufacturer Grade: 4425 |
| Coating/Finish: TiCN; TiN; Al2O3 | Relief Angle: 0.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Insert Hand: Neutral |
| Series: T-Max P | Chip Breaker Operation: Medium Machining; Roughing |
| Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Negative |
| Number Of Cutting Edges: 6 | Hole Diameter (Decimal Inch): 0.2030 |
| Hole Diameter (mm): 5.16 | ANSI Insert Code: WNMG432 |
| ISO Insert Code: WNMG080402 | Insert Holding Method: Screw; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: CVD | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: P | Secondary Workpiece Material: Cast Iron |
| Secondary Workpiece Material Code: K | Iso Code: WNMG 08 04 08-PM 4425 |
| Manufacturers Catalog Number: WNMG 432-PM | Chip Breaker: PM |
| Industry Standard Number: WNMG 08 04 08-PM 4425 | UNSPSC Code: 23242105 |
| Country of Origin: Japan | |
| Insert Style: WNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 080402 | |
| Insert Shape: W – Trigon 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (mm): 0.79 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 4425 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Hand: Neutral | |
| Series: T-Max P | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 6 | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Hole Diameter (mm): 5.16 | |
| ANSI Insert Code: WNMG432 | |
| ISO Insert Code: WNMG080402 | |
| Insert Holding Method: Screw; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Cast Iron | |
| Secondary Workpiece Material Code: K | |
| Iso Code: WNMG 08 04 08-PM 4425 | |
| Manufacturers Catalog Number: WNMG 432-PM | |
| Chip Breaker: PM | |
| Industry Standard Number: WNMG 08 04 08-PM 4425 | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Japan |
| MSC# | 14360044 |
| Mfr# | 7860991 |
