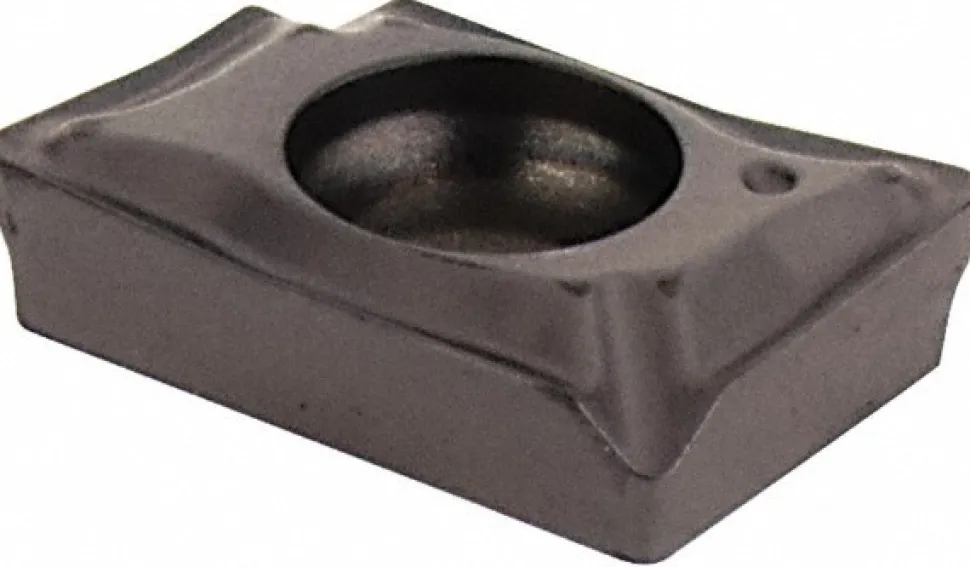

Turning Insert: XCMT040104RMF IC908, Carbide

Turning Insert: XCMT040104RMF IC908, Carbide

18,89 $

SKU: SKUO8VrMIcgW9 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

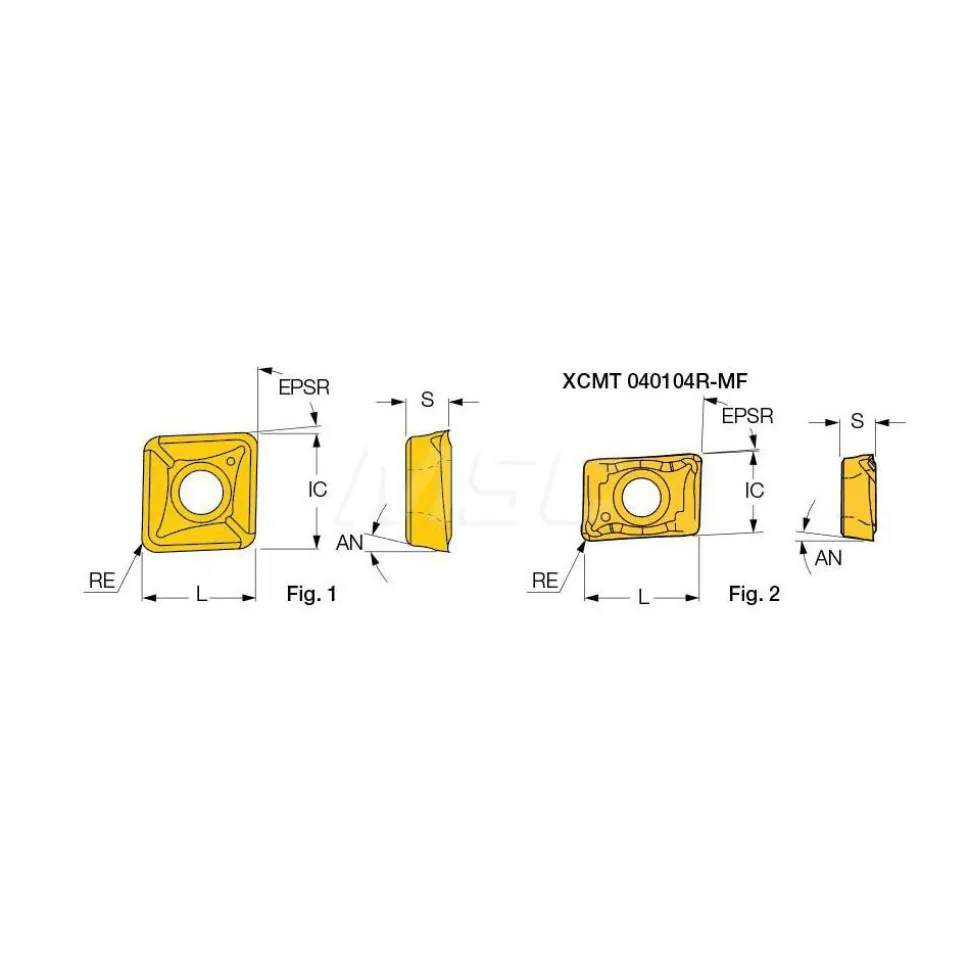

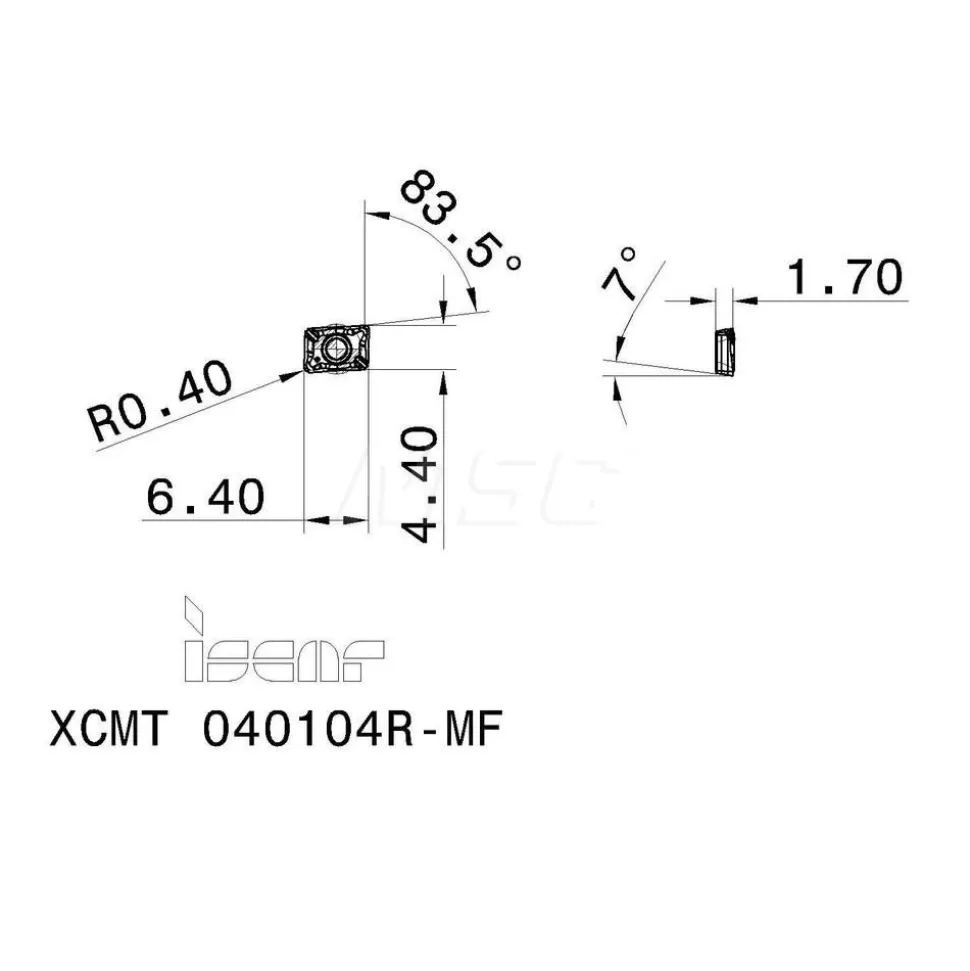

Insert Style: XCMT	ISO Size Code: 040104
Insert Shape: Non-ISO Specialty Shapes	Included Angle: 83.50
Inscribed Circle (Decimal Inch): 0.1732	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157	Insert Material: Carbide
Manufacturer Grade: IC908	Coating/Finish: TiAlN
Relief Angle: 7.000	Insert Thickness (Decimal Inch): 0.0669
Insert Thickness: 1.70	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive	ANSI Insert Code: XCMT
ISO Insert Code: XCMT040104	Insert Holding Method: Screw
Clearance Code: C	Tolerance Code: M
Coating Process: PVD	Insert Length (Decimal Inch): 0.2520
Insert Length (mm): 6.40	Primary Workpiece Material Code: P; S; K; M
Iso Code: ISO 13399	Standards: ISO 13399
Material Grade: C6; C7; C1; C2	Chip Breaker: MF
UNSPSC Code: 23242105	Country of Origin: South Korea
Insert Style: XCMT
ISO Size Code: 040104
Insert Shape: Non-ISO Specialty Shapes
Included Angle: 83.50
Inscribed Circle (Decimal Inch): 0.1732
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157
Insert Material: Carbide
Manufacturer Grade: IC908
Coating/Finish: TiAlN
Relief Angle: 7.000
Insert Thickness (Decimal Inch): 0.0669
Insert Thickness: 1.70
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive
ANSI Insert Code: XCMT
ISO Insert Code: XCMT040104
Insert Holding Method: Screw
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Insert Length (Decimal Inch): 0.2520
Insert Length (mm): 6.40
Primary Workpiece Material Code: P; S; K; M
Iso Code: ISO 13399
Standards: ISO 13399
Material Grade: C6; C7; C1; C2
Chip Breaker: MF
UNSPSC Code: 23242105
Country of Origin: South Korea
