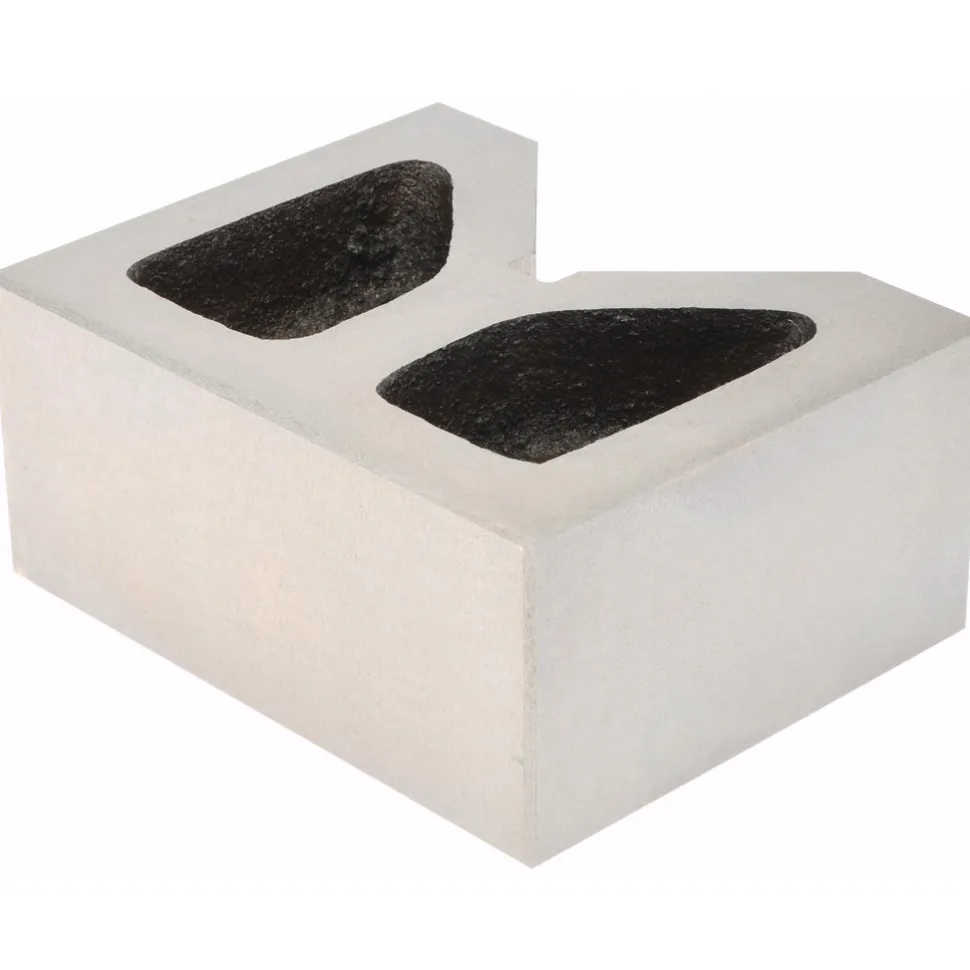

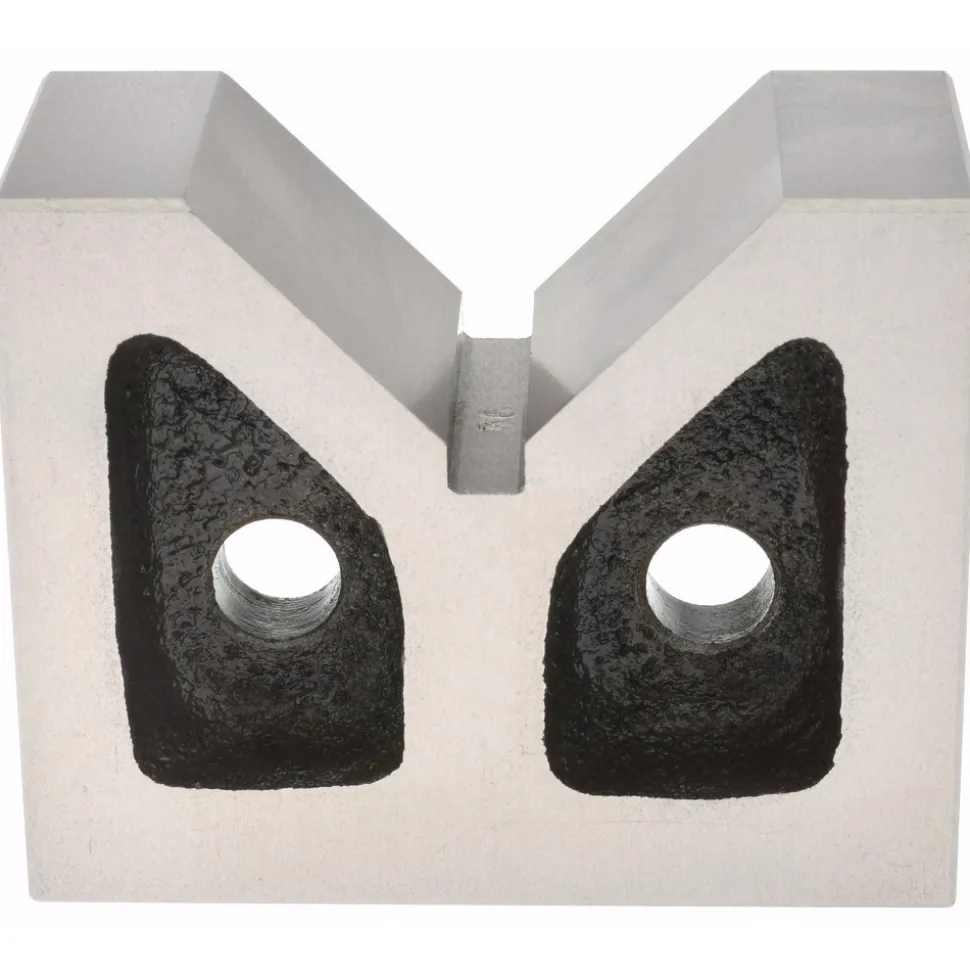

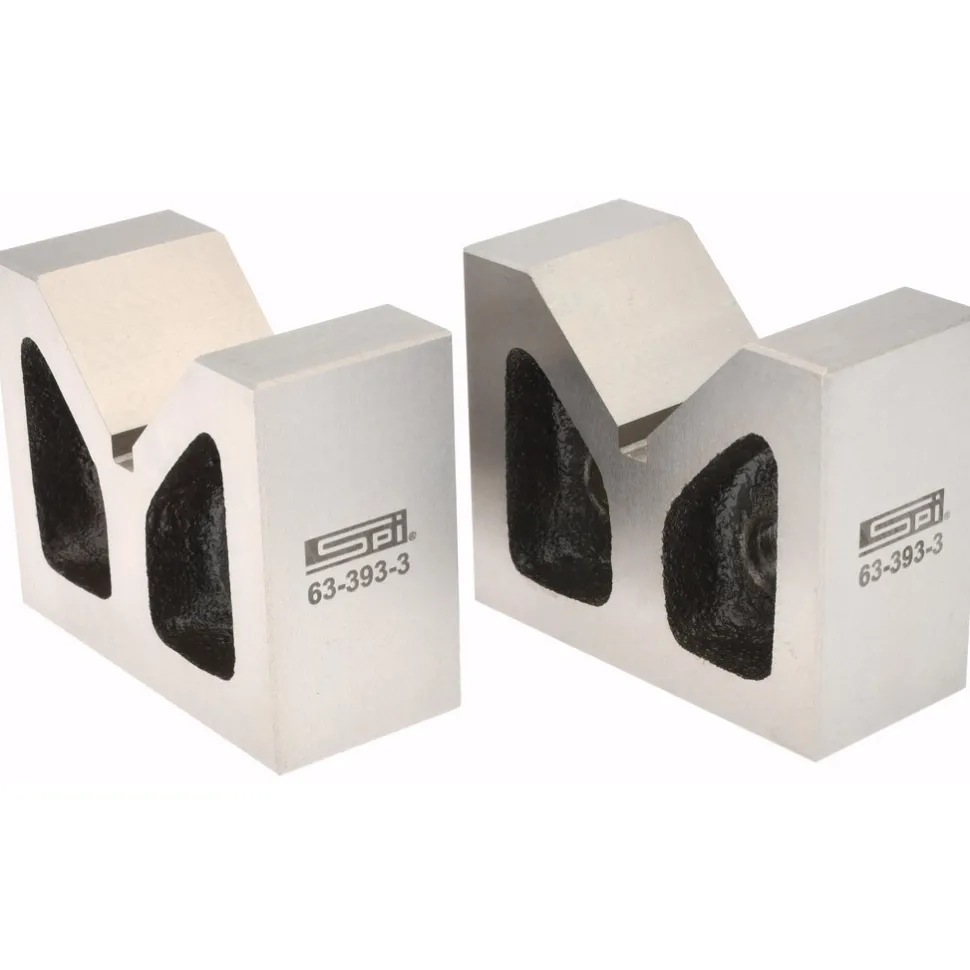

V-Block: 1-3/4″ Max Capacity, 90° V Angle

56,99 $

SKU: SKUwHD80RuDaE Categories: Calibration, Layout & Machine Setup Tools, Measuring & Inspecting, Shop All Products Tag: SPI Brand: SPI

Description
Reviews (0)

Specifications

Overall Length (Inch): 3	Overall Length (mm): 76.20
Overall Length (Decimal Inch): 3.0000	Overall Width (mm): 33.34
Overall Width (Inch): 1-5/16	Overall Height (Inch): 2-3/8
Overall Height (mm): 60.33	V Angle: 90
Maximum Capacity of V (Inch): 1-3/4	Material: Cast Iron
V Parallelism (micro m): 30.00	V Parallelism (Decimal Inch): 0.0012
V Accuracy (Decimal Inch): 0.000200	Magnetic: No
Squareness Per 1 Inch (micro m): 30.00	Large V Width (Inch): 1-3/4
Sold As Pair: Matched Pair	Squareness (Decimal Inch): 0.001200
UNSPSC Code: 41111627	Country of Origin: India
Overall Length (Inch): 3
Overall Length (mm): 76.20
Overall Length (Decimal Inch): 3.0000
Overall Width (mm): 33.34
Overall Width (Inch): 1-5/16
Overall Height (Inch): 2-3/8
Overall Height (mm): 60.33
V Angle: 90
Maximum Capacity of V (Inch): 1-3/4
Material: Cast Iron
V Parallelism (micro m): 30.00
V Parallelism (Decimal Inch): 0.0012
V Accuracy (Decimal Inch): 0.000200
Magnetic: No
Squareness Per 1 Inch (micro m): 30.00
Large V Width (Inch): 1-3/4
Sold As Pair: Matched Pair
Squareness (Decimal Inch): 0.001200
UNSPSC Code: 41111627
Country of Origin: India


MSC#	02662856
Mfr#	AVB0643
Big Book#	1845
