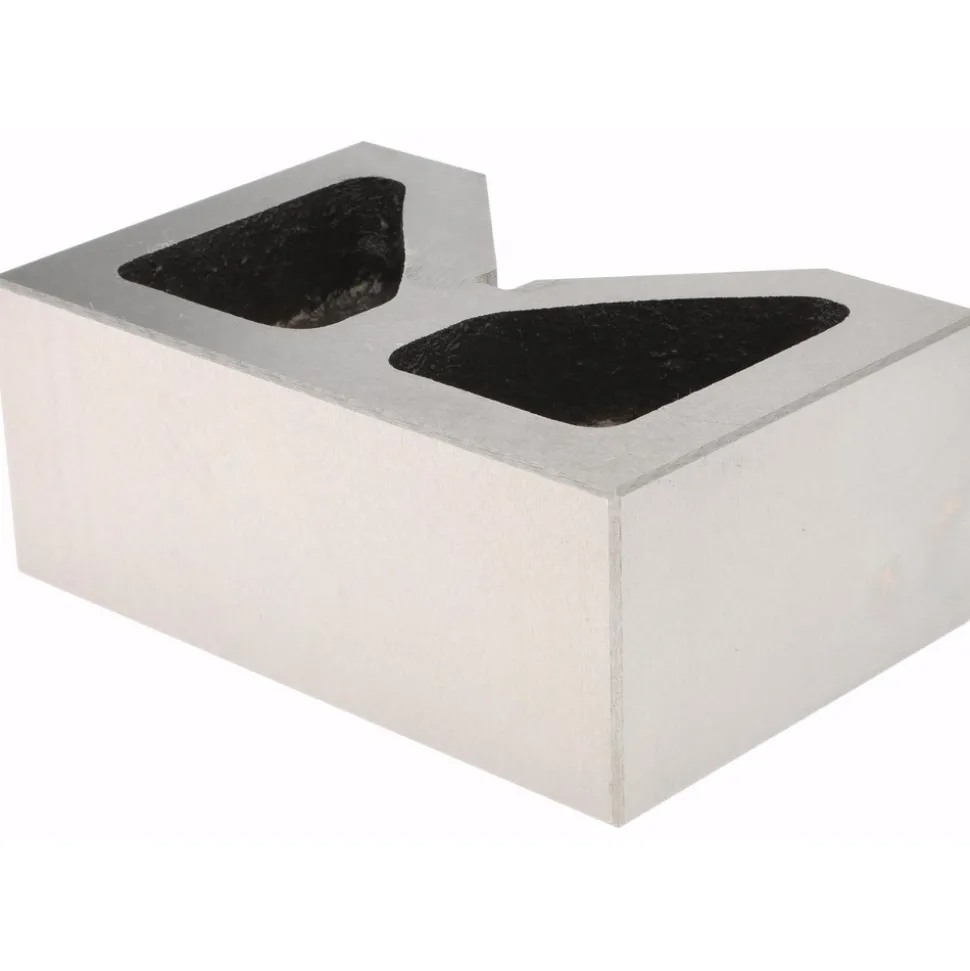

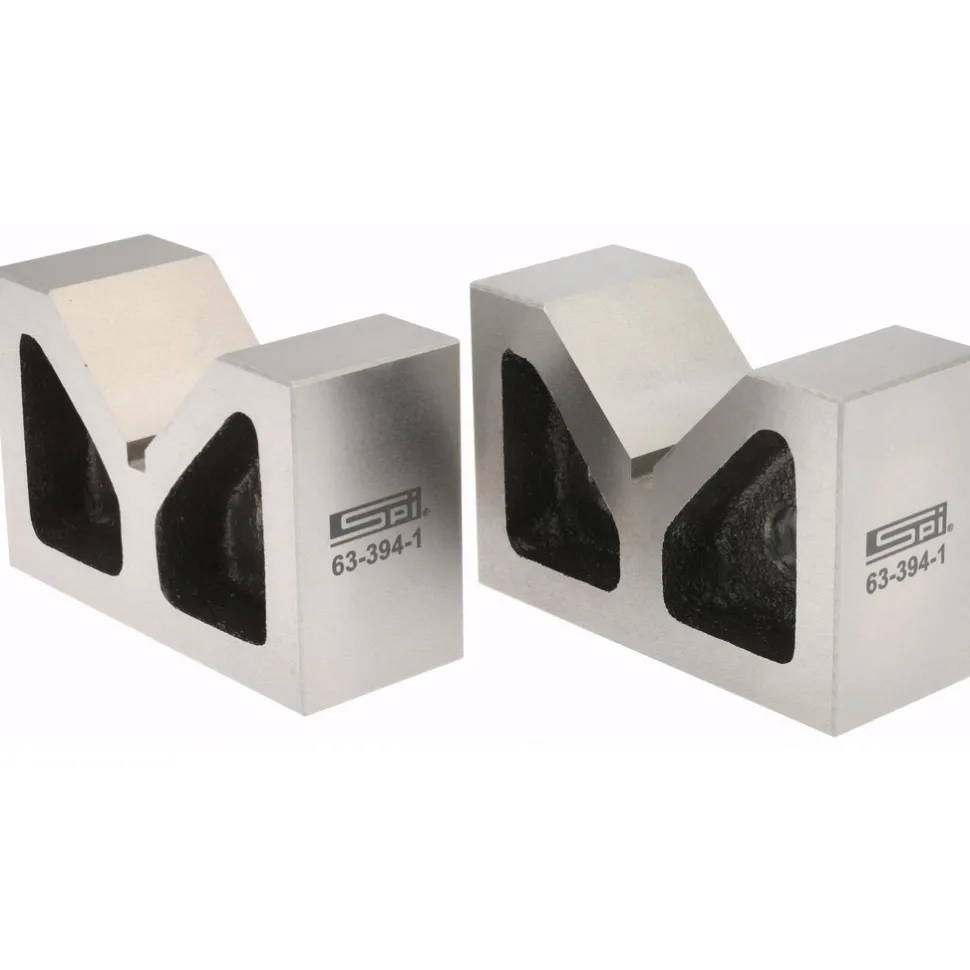

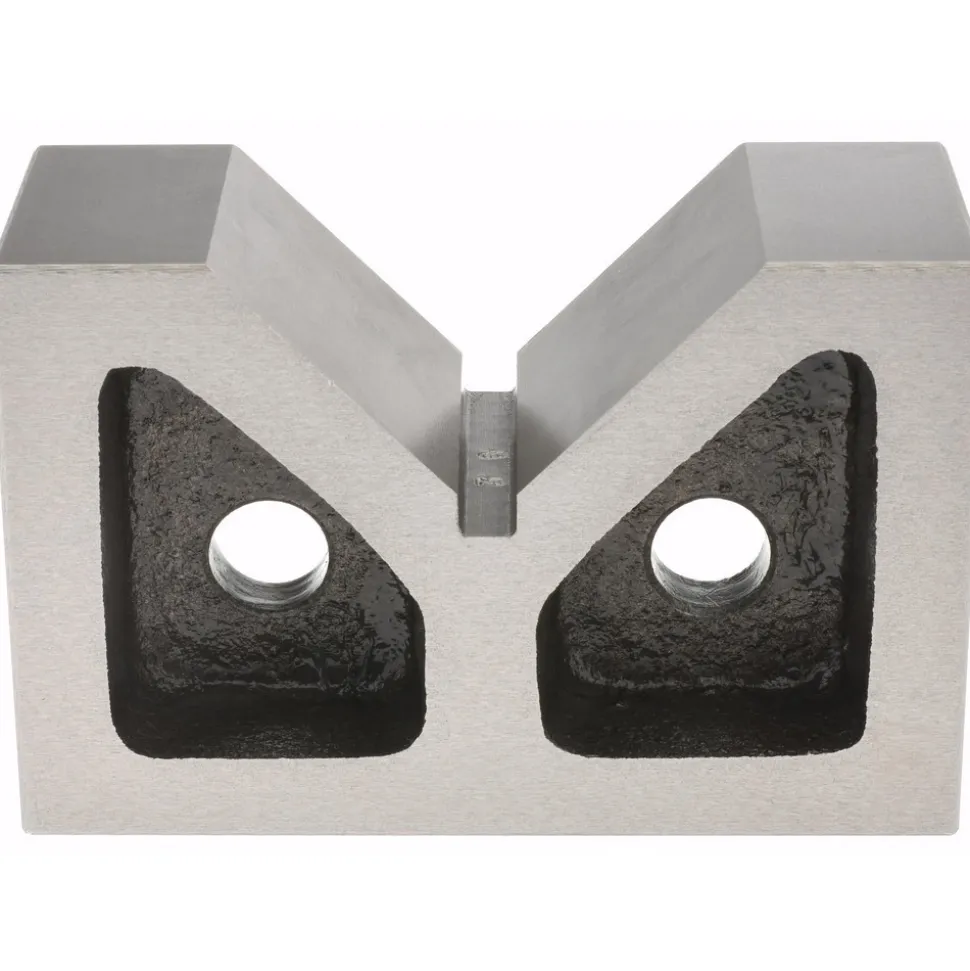

V-Block: 2-3/16″ Max Capacity, 90° V Angle

72,99 $

SKU: SKU4lJzunKpOx Categories: Calibration, Layout & Machine Setup Tools, Measuring & Inspecting, Shop All Products Tag: SPI Brand: SPI

Description
Reviews (0)

Specifications

Overall Length (Inch): 4	Overall Length (mm): 101.60
Overall Length (Decimal Inch): 4.0000	Overall Width (mm): 39.69
Overall Width (Inch): 1-9/16	Overall Height (Inch): 2-9/16
Overall Height (mm): 65.09	V Angle: 90
Maximum Capacity of V (Inch): 2-3/16	Maximum Capacity of V (mm): 55.56
Material: Cast Iron	V Parallelism (micro m): 30.00
V Parallelism (Decimal Inch): 0.0002	V Accuracy (Decimal Inch): 0.000200
Magnetic: No	Squareness Per 1 Inch (micro m): 30.00
Large V Width (Inch): 2-3/16	Sold As Pair: Matched Pair
Squareness (Decimal Inch): 0.001200	UNSPSC Code: 41111627
Overall Length (Inch): 4
Overall Length (mm): 101.60
Overall Length (Decimal Inch): 4.0000
Overall Width (mm): 39.69
Overall Width (Inch): 1-9/16
Overall Height (Inch): 2-9/16
Overall Height (mm): 65.09
V Angle: 90
Maximum Capacity of V (Inch): 2-3/16
Maximum Capacity of V (mm): 55.56
Material: Cast Iron
V Parallelism (micro m): 30.00
V Parallelism (Decimal Inch): 0.0002
V Accuracy (Decimal Inch): 0.000200
Magnetic: No
Squareness Per 1 Inch (micro m): 30.00
Large V Width (Inch): 2-3/16
Sold As Pair: Matched Pair
Squareness (Decimal Inch): 0.001200
UNSPSC Code: 41111627


MSC#	02662864
Mfr#	AVB0644
Big Book#	1845
