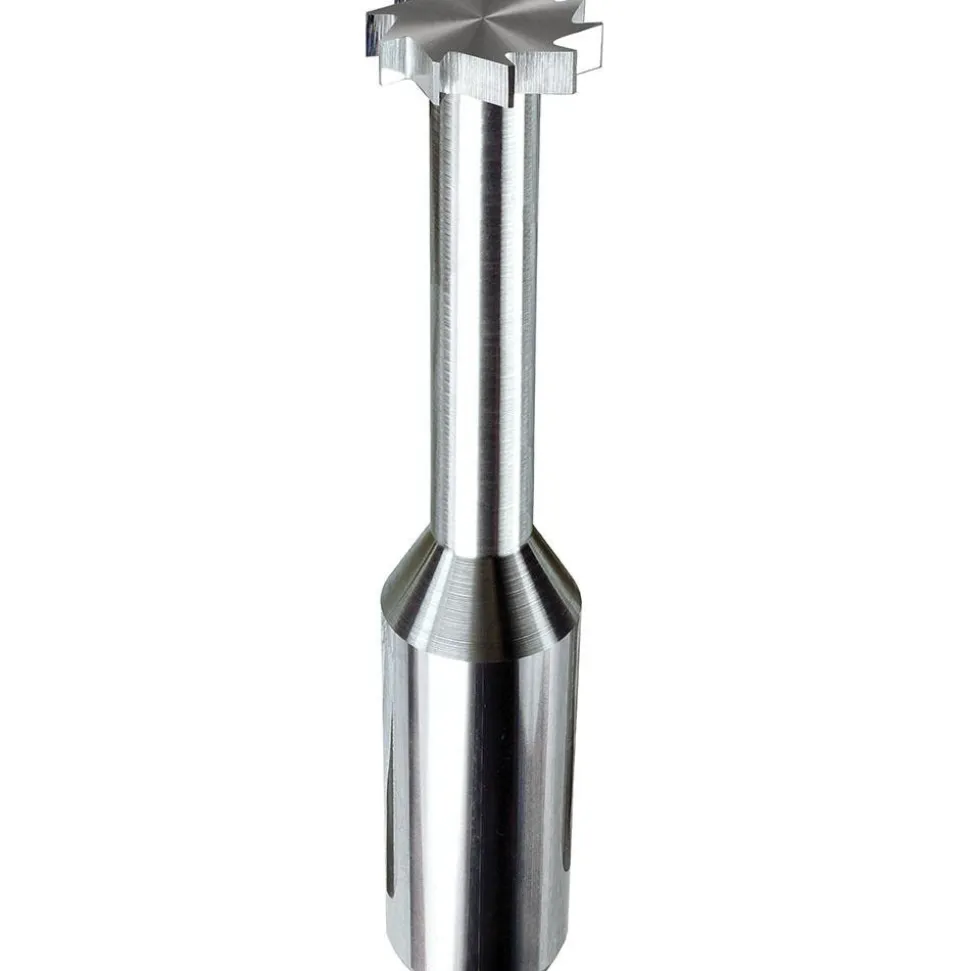

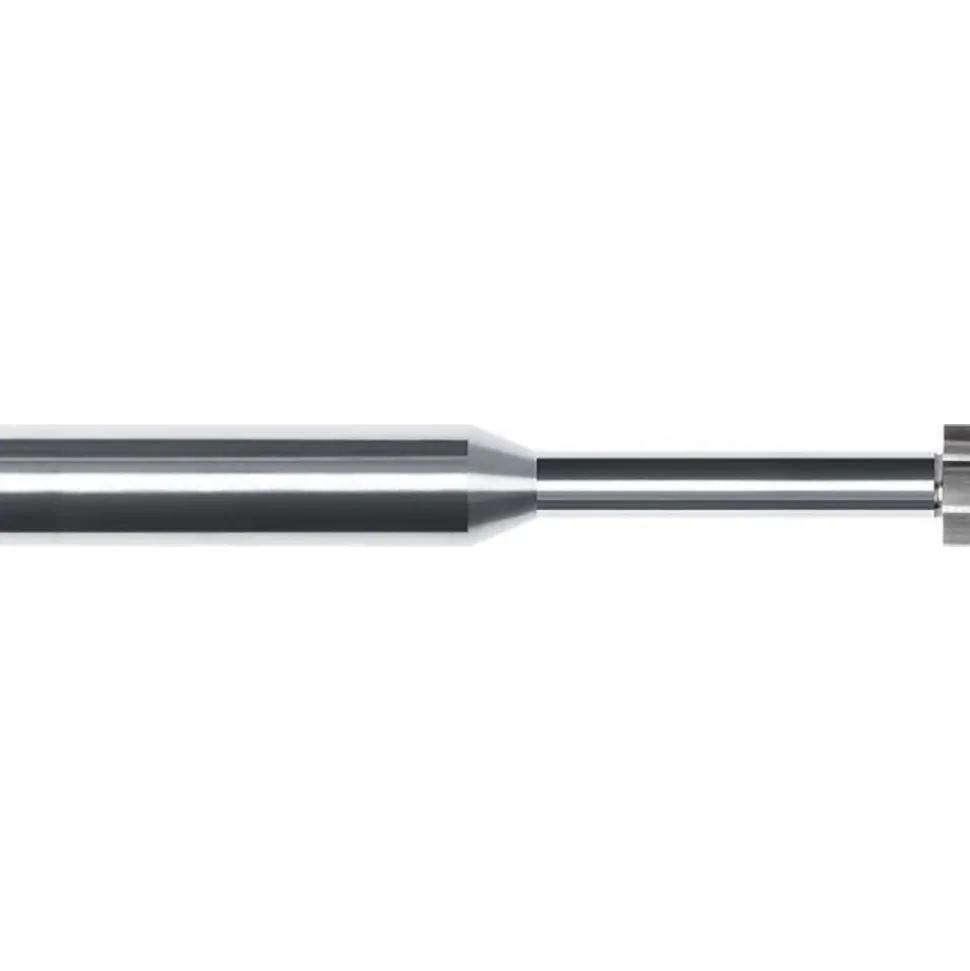

Woodruff Keyseat Cutter: 1/4″ Cut Dia, 1/8″ Cut Width, 1/4″ Shank Dia, Straight Tooth
60,89 $
Specifications
| Connection Type: Shank | Cutter Material: Solid Carbide |
| Cutter Diameter (Inch): 1/4 | Cutter Diameter (Decimal Inch): 0.2500 |
| Tooth Configuration: Straight | Cutting Width (Inch): 1/8 |
| Cutting Width (Decimal Inch): 0.1250 | Weldon Flat: No |
| Neck Length (Decimal Inch): 0.7500 | Neck Diameter (Decimal Inch): 0.1250 |
| Shank Diameter (Inch): 1/4 | Shank Diameter (Decimal Inch): 0.2500 |
| Overall Length (Inch): 2-1/2 | Overall Length (Decimal Inch): 2.5000 |
| Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; K; M; N |
| Cutter Material Grade: Micrograin | Series: 83 |
| Coating/Finish: AlTiN | Number Of Teeth: 6 |
| UNSPSC Code: 23241631 | Country of Origin: UNITED STATES |
| Connection Type: Shank | |
| Cutter Material: Solid Carbide | |
| Cutter Diameter (Inch): 1/4 | |
| Cutter Diameter (Decimal Inch): 0.2500 | |
| Tooth Configuration: Straight | |
| Cutting Width (Inch): 1/8 | |
| Cutting Width (Decimal Inch): 0.1250 | |
| Weldon Flat: No | |
| Neck Length (Decimal Inch): 0.7500 | |
| Neck Diameter (Decimal Inch): 0.1250 | |
| Shank Diameter (Inch): 1/4 | |
| Shank Diameter (Decimal Inch): 0.2500 | |
| Overall Length (Inch): 2-1/2 | |
| Overall Length (Decimal Inch): 2.5000 | |
| Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Cutter Material Grade: Micrograin | |
| Series: 83 | |
| Coating/Finish: AlTiN | |
| Number Of Teeth: 6 | |
| UNSPSC Code: 23241631 | |
| Country of Origin: UNITED STATES |
| MSC# | 09927492 |
| Mfr# | 83-1130-C |
